EUCHNER GmbH + Co. KG CEM-A-LE05K-S2

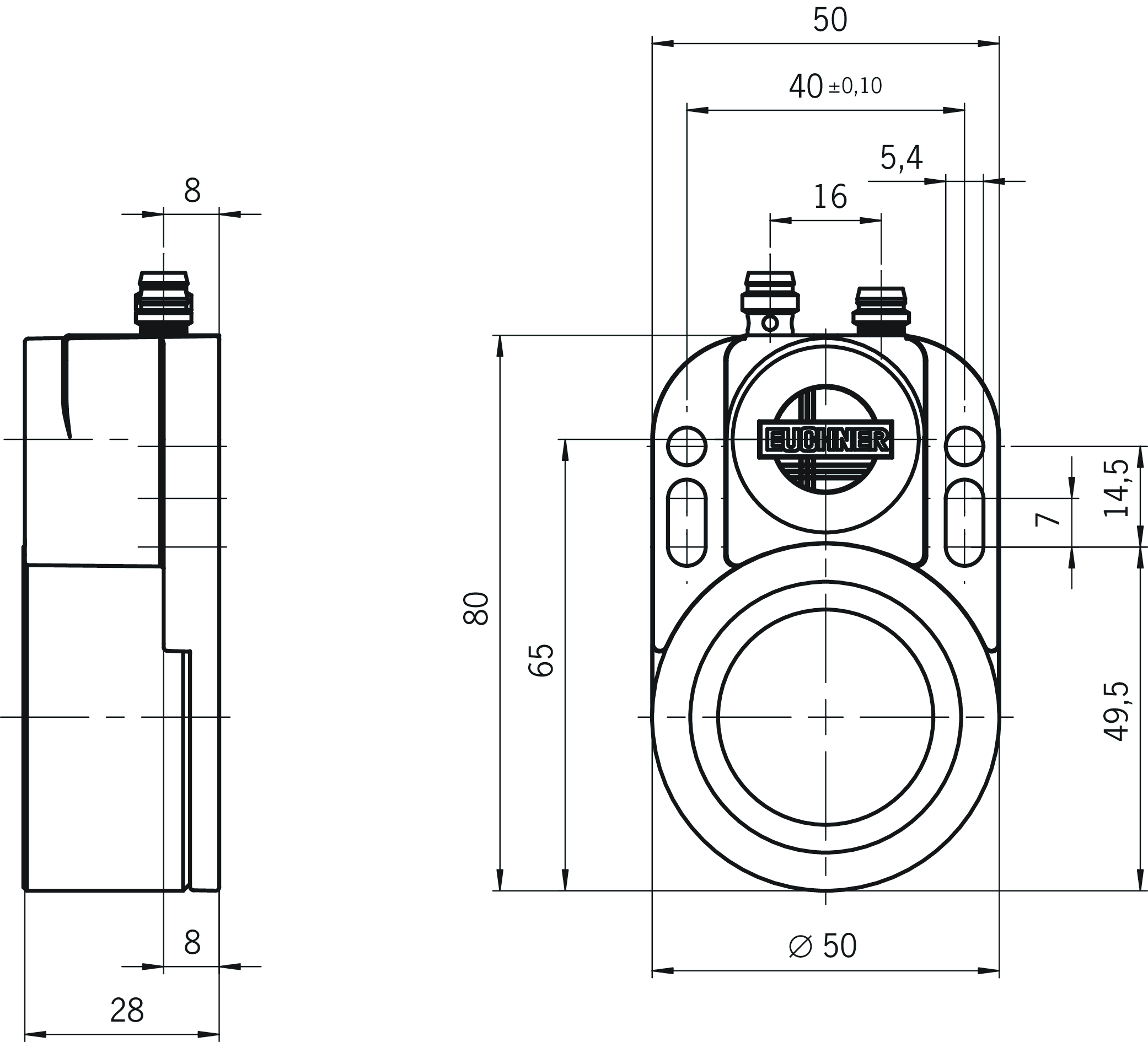

CEM-A-LE05K-S2
Технические характеристики
| Secured switch-off distance s ar | 20 mm |
|---|---|
| with center offset m= ±2.5 mm | 0 mm |
| Center offset | 2.5 mm |
| with center offset m=0 | 0.7 mm |
| Power consumption | 2.5 W |
| U CM | 24 V DC -15% ... +10% |
| Solenoid duty cycle | 100 % |
| U B | 100 mA |
| X3, read head | Plug connector M8x1, 3-pin, plug (with snap-action/screw terminal) |
| X1, solenoid (yellow LED integrated in the plug) | Plug connector M8x1, 4-pin, plug (with snap-action/screw terminal) |
| Installation orientation | any |
| Solenoid | max. 1 Hz |
| due to remanence | 10 N -25% ... +25% |
| Storage temperature | -25 ... 70 °C |
| Cable length | max. 25 m |
| in case of use as door stop, and 2 Joule impact energy | 1 x 10⁶ |
| Degree of protection | IP67 |
| Рабочая температура | -25 ... 50 °C |
| Housing | Die-cast aluminum |
| Mechanical values and environment - Solenoid | Steel, nickel plated |
| Read head | Plastic (PPS) |
| (not monitored, in axial direction) at U CM =24 V | 650 N |
| Guard locking principle | Open-circuit current principle |
| Ordernumber | 094800 |
| Масса | 0,447kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-05 Safety-related transponder switch with guardlocking |
