EUCHNER GmbH + Co. KG CES-A-C5H-01-EX
CES-A-C5H-01-EX
Технические характеристики
| according to EN 60947-5-2 | 10 % |
|---|---|
| Напряжение питания | 0.25 ... 8 A |
| Напряжение питания | 50 V |
| Напряжение питания | 0.5 kV |
| Напряжение питания | 21 ... 24 ... 27 V DC regulated, residual ripple<5% |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Current consumption | 80 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | Semiconductor output, p-switching, short circuit-proof |
| Напряжение питания | 0.8 x UB ... UB V DC |
| Switching current | max. 20 mA |
| external, safety circuit U(+LA) / U(+LB) | 0.1 A medium slow-blow |

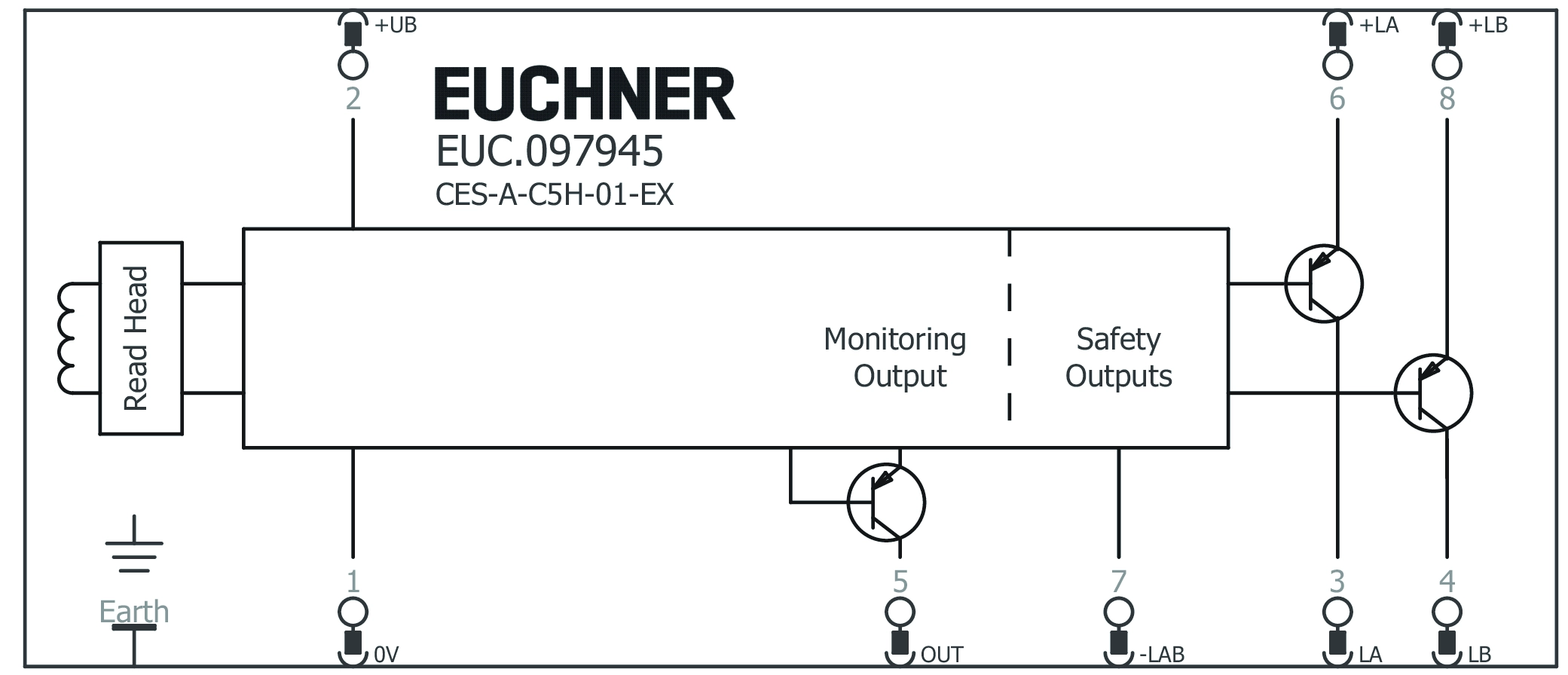

| Electrical connection values - Output type | Semiconductor outputs, p-switching, short circuit-proof, electrically decoupled (To ensure safety, both safety outputs (LA and LB) must be evaluated.) |
| HIGH U(LA) | U(+LA) - 1.5 ... U(+LA) V DC |
| HIGH U(LB) | U(+LB) - 1.5 ... U(+LB) V DC |
| LOW U(LA) / U(LB) | 0 ... 1 V DC |
| rated conditional short-circuit current | 100 A |
| (between the operating points of both safety outputs) | max. 120 ms |
| DC-13 Safety outputs LA / LB | 24V 100mA |
| according to UL | max. DC 24 V, Class 2 |
| per safety output | 1 ... 100 mA |
| U(+LA) / U(+LB) | 18 ... 24 ... 27 V DC |
| Dimensions | Acc. to EN 60947-5-2 |
| Connection type | M12 plug connector, 8-pin; shield can be connected |
| Fixing screws, housing | max. 1 Nm |
| Screws, read head mounting bracket | max. 0.6 Nm |
| Ready delay | max. 3 s (After the operating voltage is switched on, the semiconductor outputs are switched off and the monitoring outputs are set to LOW level during the ready delay.) |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Storage temperature | -25 ... 70 °C |
| between read heads | min. 80 mm |
| after change in the actuation status | max. 180 ms (Corresponds to the risk time according to EN 60947-5-3. This is the maximum OFF time for the safety outputs following removal of the actuator.) |
| Degree of protection | IP65/IP67 |
| at U B = 24 V DC | -20 ... 50 °C |
| Dwell time | min. 0.5 s (The dwell time of an actuator inside and outside the actuating range must be at least 0.5 s to ensure safe detection of internal faults in the evaluation unit (self-monitoring).) |
| Housing | Plastic PBT V0 GF30 |
| incl. cover hood | II3G Ex ic ec IIB T5 Gc X / II3D Ex ic tc IIIC T90°C Dc X |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
| Minimum distance for side approach direction | min. 4 mm |
| with center offset m=0 | 20 mm (for surface mounting of the actuator) |
| Secured switch-off distance s ar | 40 mm |
| In combination with actuator CES-A-BBA-EX-098158 - with center offset m=0 | min. 18 mm (for surface mounting of the actuator) |
| Switching hysteresis | 2 ... 3 mm (for surface mounting of the actuator) |
| In combination with actuator CES-A-BPA-EX-102125 - Minimum distance for side approach direction | min. 6 mm |
| In combination with actuator CES-A-BPA-EX-102125 - with center offset m=0 | 22 mm (for surface mounting on aluminum; in a metal-free environment, the typical operating distance increases to 30 mm) |
| In combination with actuator CES-A-BPA-EX-102125 - Secured switch-off distance s ar | 58 mm |
| In combination with actuator CES-A-BPA-EX-102125 - Switching hysteresis | 1 ... 2 mm (for surface mounting on aluminum) |
| Ordernumber | 097945 |
| Масса | 0,545kg |
| Global Trade Item Number (GTIN) | 4047048006355 |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
