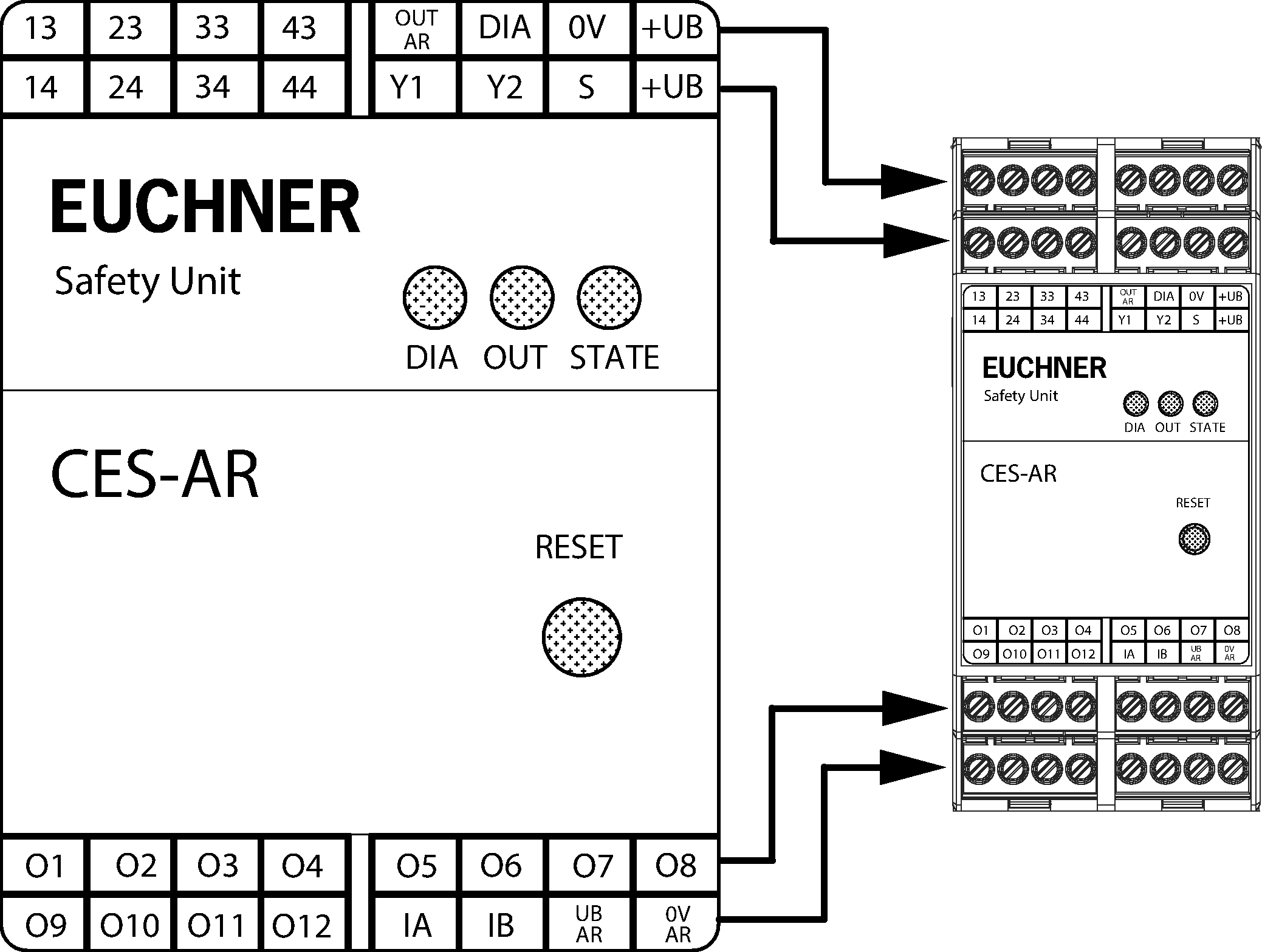

EUCHNER GmbH + Co. KG CES-AR-AES-12
CES-AR-AES-12
Технические характеристики
| DIA | LED red: fault display |
|---|---|
| OUT | LED yellow: AR chain status |
| STATE | LED green: device status |
| Connection cross section | 0.14 ... 2.5 mm² |
| Напряжение питания | 250 V |
| Напряжение питания | 4 kV |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Switching delay from state change | max. 480 ms (Corresponds to the risk time according to EN 60947-5-3. This is the maximum OFF time for the safety outputs following removal of the actuator.) |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| Current via feedback loop | 5 ... 8 ... 10 mA |
| permissible resistance in feedback loop | max. 600 Ω |
| Output type | Semiconductor outputs, p-switching, short circuit proof |
| HIGH | UB - 20% ... UB V DC |
| LOW | 0 ... 1 V DC |
| Output current | max. 20 mA |
| Electrical connection values - Output type | Semiconductor output, p-switching, short circuit proof |
| Electrical connection values - HIGH | UB - 20 % ... UB V DC |
| Electrical connection values - LOW | 0 ... 1 V DC |
| Electrical connection values - Output current | max. 20 mA |
| Number of connectible safety switches | max. 12 |
| Safety inputs | 2 (for CES-AR switch chain) |
| external (safety circuit) according to EN 60269-1 | 6 AgG or 6 A circuit breaker (characteristic B or C) |
| between the operating points of both relays | max. 25 ms |
| AC-12 | 30V 6A |
| AC-15 | 230V 5A |
| DC-12 | 30V 6A |
| Electrical connection values - AC-12 | 60V 0.3A |
| Electrical connection values - DC-12 | 60V 0.3A |
| DC-13 | 24V 5A |
| Напряжение питания | 10 ... 6000 mA for AC/DC 5 ... 30 V |
| Start button | 300 ... 600 ms |
| Duration of actuation | min. 250 ms |
| Напряжение питания | 2.5 ... 8 A |
| U B | 24 V DC -10% ... +10% regulated, residual ripple<5% |
| IB (with relay energized) | 1200 mA (taking into account the load currents at the monitoring outputs (20 mA each)) |
| Dimensions | 114 x 99 x 45 |
| Connection type | plug-in screw terminals, coded |
| Number of LED displays | 3 |
| Ready delay | max. 8 s (After the operating voltage is switched on, the relay outputs are switched off and the monitoring outputs are set to LOW level during the ready delay. For visual indication of the delay, the green STATE LED flashes at a frequency of approx. 15 Hz.) |
| Storage temperature | -25 ... 70 °C |
| not condensing | max. 80 % rH |
| Mounting type | Mounting rail TH 35 (EN IEC 60715) |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP20 |
| at U B = 24 V DC | -20 ... 55 °C |
| Housing | Plastic PA6.6 |
| Number of monitoring outputs | 12 |
| Number of safety contacts | 4 Relay with internally monitored contacts |
| Switching frequency | 1 Hz (If the current load is>100 mA, a switching frequency of 0.1 Hz should not be exceeded as this will affect the mechanical life of the relay contacts.) |
| Relay | 10 x 10⁶ |
| Ordernumber | 098225 |
| Масса | 0,326kg |
| Customs tariff number | 85364110 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
