EUCHNER GmbH + Co. KG CES-I-AP-M-C04-USI-160832
CES-I-AP-M-C04-USI-160832
Технические характеристики

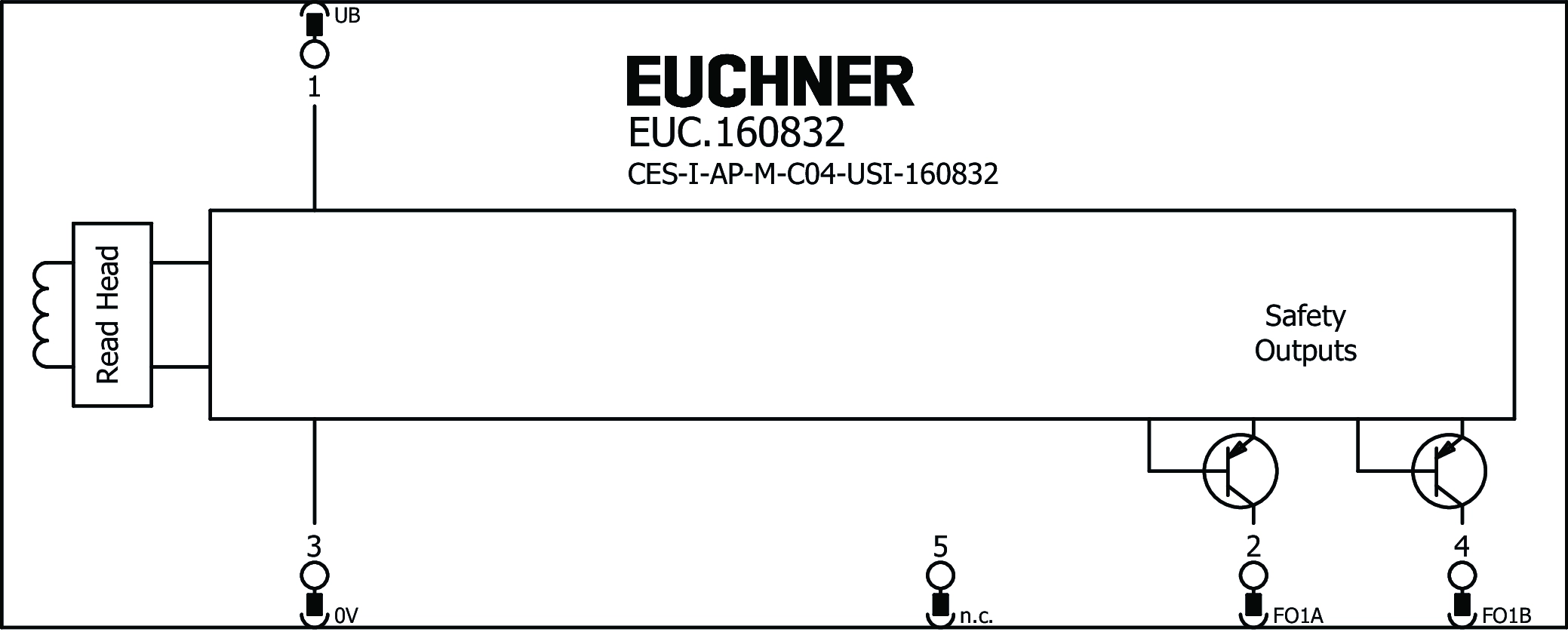

| according to EN 60947-5-2 | 10 % |
|---|---|
| Напряжение питания | 0.25 ... 8 A |
| Напряжение питания | 30 V |
| Напряжение питания | 0.5 kV |
| U B | 24 V DC -15% ... +15% regulated, residual ripple<5%, PELV (The device tolerates voltage interruptions in the operating voltage, e.g. test pulses, of up to 5 ms. These voltage interruptions are also output on the outputs.) |
| Safety outputs | max. 300 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 | max. 260 ms |
| Safety class | III |
| no load on outputs | max. 35 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| HIGH U(FO1A) / U(FO1B) | UB-1.5V ... UB V DC (Values at a switching current of 50 mA without taking into account the cable lengths.) |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| rated conditional short-circuit current | 100 A |
| Discrepancy time | max. 10 ms |
| DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.) |
| Off-state current Ir | max. 0.25 mA |
| per safety output | 1 ... 150 mA |
| Test pulse duration | max. 0.3 ms (Applies to a load with C<= 30nF and R<= 20kOhm) |
| Test pulse interval | min. 100 ms |
| Connection type | PUR cable, 1,500 mm, with plug connector M12x1, 5-pin; pin 5 not used |
| Fixing screws | max. 0.8 Nm |
| Ready delay | 0.5 s |
| Dynamic bending radius | 10 x cable diameter |
| Static bending radius | 5 x cable diameter |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Storage temperature | -25 ... 70 °C |
| between switches | min. 80 mm |
| Mounting type | Surface mounting on metal |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67 |
| Рабочая температура | -25 ... 65 °C |
| Рабочая температура | -25 ... 65 °C |
| Housing | Plastic, PBT |
| Rubber support | NBR 80 ±5 Shore |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature | Rubber support included |
| Installation position C or D (broad side) | 11 mm |
| Installation position A or B (front side) | 15 mm |
| in y direction | 60 mm |
| in x/z direction | 40 mm |
| In combination with actuator CES-A-BBN-C04-115271, CES-A-BBN-C04-EX-137527 - Installation position A or B (front side) | min. 10 mm |
| In combination with actuator CES-A-BBN-C04-115271, CES-A-BBN-C04-EX-137527 - Installation position C or D (broad side) | min. 6 mm |
| Switching hysteresis | 1 ... 2 mm |
| In combination with actuator CES-A-BDN-06-104730 - Installation position A or B (front side) | 19 mm |
| In combination with actuator CES-A-BDN-06-104730 - Installation position C or D (broad side) | 15 mm |
| In combination with actuator CES-A-BDN-06-104730 - in y direction | 60 mm |
| In combination with actuator CES-A-BDN-06-104730 - in x/z direction | 40 mm |
| In combination with actuator CES-A-BDN-06-104730 - Switching hysteresis | 1 ... 2 mm |
| Installation position C | 20 mm |
| Installation position A | 25 mm |
| In combination with actuator CES-A-BDN-06-161742 - Installation position C | 72 mm |
| In combination with actuator CES-A-BDN-06-161742 - Installation position A | 77 mm |
| In combination with actuator CES-A-BDN-06-161742 - Switching hysteresis | 1 ... 2 mm |
| Installation position A + B | 25 mm |
| Installation position C + D | 20 mm |
| in x/z direction / installation position A + B | 69 mm |
| in y direction / installation position C + D | 72 mm |
| in x-/z direction / installation position C + D | 64 mm |
| in y direction / installation position A + B | 77 mm |
| in x direction/installation position C + D | min. 10 mm |
| in z direction / installation position A + B | min. 15 mm |
| In combination with actuator CES-A-BBN-161502 - in z direction / installation position A + B | 1 ... 2 mm |
| In combination with actuator CES-A-BBN-161502 - in x direction/installation position C + D | 1 ... 2 mm |
| Ordernumber | 160832 |
| Масса | 0,12kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
