EUCHNER GmbH + Co. KG CES-I-AR-U-C04-SG-EX-175319
CES-I-AR-U-C04-SG-EX-175319

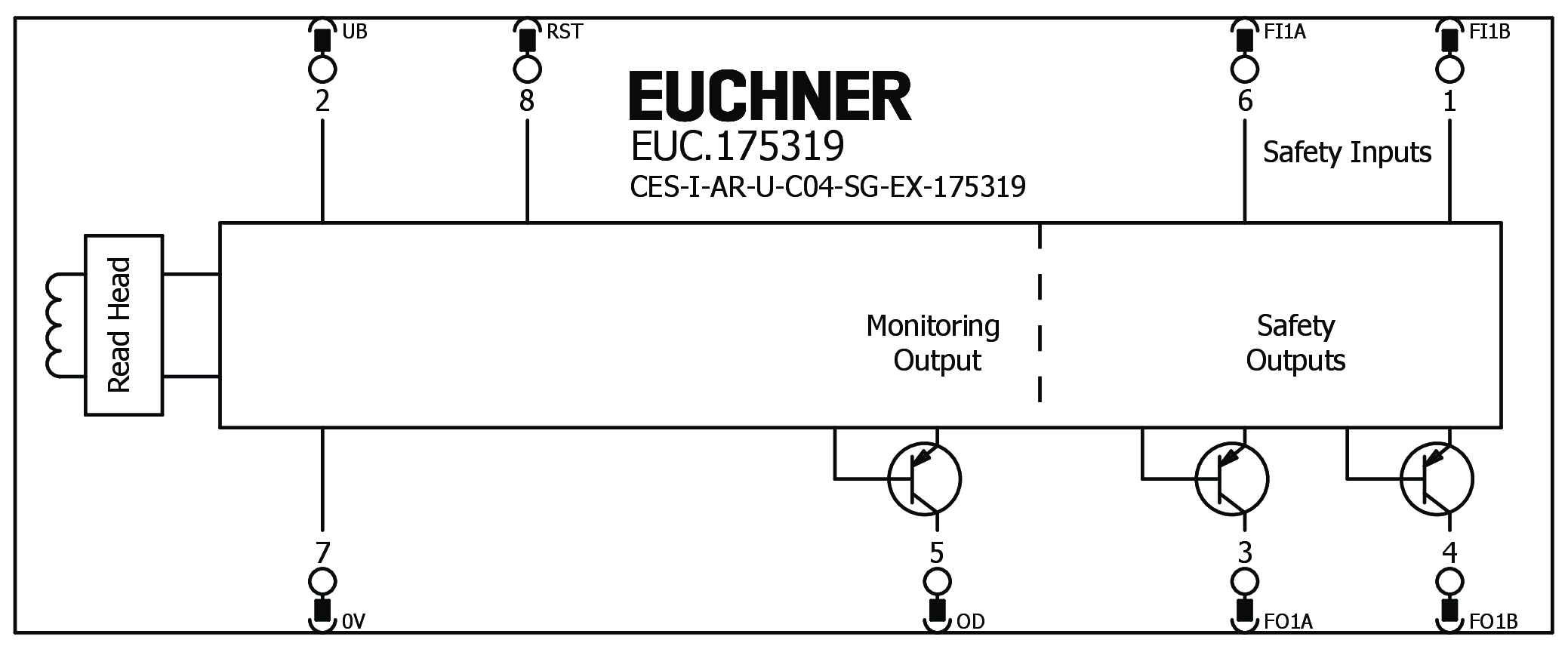

Технические характеристики
| according to EN 60947-5-2 | 10 % |
|---|---|
| Напряжение питания | 0.25 ... 8 A |
| Напряжение питания | 30 V |
| Напряжение питания | 0.5 kV |
| U B | 24 V DC -15% ... +15% regulated, residual ripple<5%, PELV |
| Safety outputs | max. 400 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Risk time according to EN 60947-5-3 | max. 260 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 5 ms |
| Safety class | III |
| Current consumption | max. 35 mA (without taking into account the load currents on the monitoring output and the safety outputs) |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | Semiconductor output, p-switching, short circuit-proof |
| Напряжение питания | 0.8 x UB ... UB V DC |
| Switching current | max. 50 mA |
| Electrical connection values - Output type | Semiconductor outputs, p-switching, short circuit-proof |
| HIGH U(FO1A) / U(FO1B) | UB-1.5V ... UB V DC (Values at a switching current of 50 mA without taking into account the cable lengths.) |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| rated conditional short-circuit current | 100 A |
| Discrepancy time | max. 10 ms |
| DC-13 | 24V 200mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.) |
| Off-state current Ir | max. 0.25 mA |
| per safety output | 1 ... 200 mA |
| Test pulse duration | max. 1.0 ms (Applies to a load with C<= 30nF and R<= 20kOhm) |
| Test pulse interval | min. 140 ms |
| Connection type | M8 plug connector, 8-pin |
| Fixing screws | max. 0.6 Nm |
| Ready delay | 10 s |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| Storage temperature | -25 ... 70 °C |
| between switches | min. 80 mm |
| Mounting type | Surface mounting on metal |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67/IP69K (only version with plug connector M8 and mating connector with the same degree of protection) |
| Рабочая температура | -25 ... 65 °C |
| Housing | Plastic, PBT |
| Rubber support | NBR 80 ±5 Shore |
| Housing guard | Fiber glass reinforced plastic |
| Explosion protection in accordance with ATEX Directive 2014/34/EU | II 3 G Ex ec IIB T6 Gc X / II 3 D Ex tc IIIC T80°C Dc X |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature | Housing guard and rubber support included |
| Installation position A or B (front side) | 15 mm |
| Installation position C or D (broad side) | 11 mm |
| in x/z direction | 40 mm |
| in y direction | 60 mm |
| In combination with actuator CES-A-BBN-C04-EX-137527 - Installation position C or D (broad side) | 6 mm |
| In combination with actuator CES-A-BBN-C04-EX-137527 - Installation position A or B (front side) | 10 mm |
| Switching hysteresis | 1 ... 2 mm |
| Ordernumber | 175319 |
| Масса | 0,075kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
