EUCHNER GmbH + Co. KG CES-I-IO-CC-C07-SE-168020

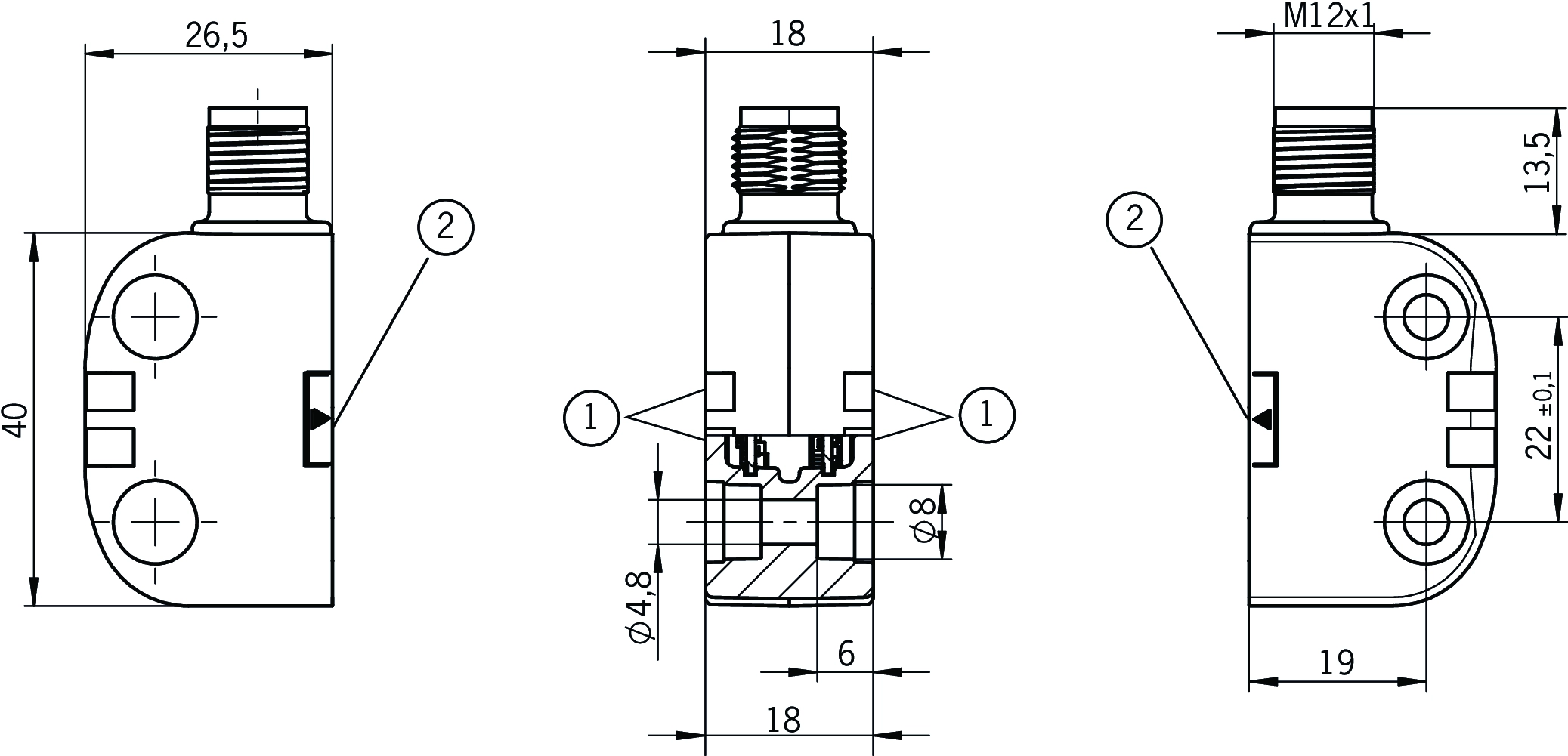

CES-I-IO-CC-C07-SE-168020
Технические характеристики
| Repeat accuracy R | 10 % |
|---|---|
| Напряжение питания | 0.25 ... 8 A |
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 75 V |
| Напряжение питания | 1.5 kV |
| U B | 18 ... 24 ... 30 V DC |
| Turn-on time | 75 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Cycle time | 10 ms |
| Safety class | III |
| Current consumption | max. 30 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Dimensions | 40 x 26.5 x 18 |
| Connection type | M12 plug connector, 5-pin, class A |
| Tightening torque | max. 0.8 Nm |
| Ready delay | 1 s |
| Operating altitude | max. 4 000 m |
| Installation orientation | any |
| Switching frequency | max. 1 Hz |
| between switches | min. 50 mm |
| Mounting type | Surface mounting on metal |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65/IP67/IP69/IP69K |
| at U B = 24 V DC | -25 ... 70 °C |
| Housing | Plastic, PBT-PC-GF30 |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures |
| Additional feature | Caps included |
| Data rate | COM2 (38.4 kbps) |
| Date interface | IO-Link |
| OFDT (One fault delay time) | max. 75 ms entspricht der Risikozeit nach EN 60947-5-3 |
| IO-Link Version | 1.1 |
| IO-Link Safety Version | 1.1.4 |
| Interface - Cycle time | 10 ms |
| Prozessdatenlänge Ausgang | 7 Byte |
| Prozessdatenlänge Eingang | 10 Byte |
| SIO-Mode | No |
| WCDT (Worst case delay time) | max. 75 ms |
| Installation position B | 5 mm (on steel) |
| Installation position A | 6.5 mm (on steel) |
| in x direction/installation position A + B | 13 mm |
| in x direction/installation position A | min. 3 mm |
| in x direction/installation position B | min. 2 mm (only at an ambient temperature of 0°C ... 70°C) |
| Installation position A + B | 13 mm |
| Installation position C + D | 7 mm |
| in x direction/installation position C + D | 17 mm |
| In combination with actuator CES-A-BTN-C07-156230 - in x direction/installation position A + B | 20 mm |
| In combination with actuator CES-A-BTN-C07-156230 - in x direction/installation position A | min. 10 mm |
| in x direction/installation position D | min. 2 mm |
| in x direction/installation position C | min. 3 mm |
| In combination with actuator CES-A-BTN-C07-156230 - in x direction/installation position B | min. 9 mm |
| Switching hysteresis | 1 ... 2 mm |
| Installation position C | 11 mm |
| In combination with actuator CES-A-BDN-06-158210 - Installation position A | 16 mm |
| In combination with actuator CES-A-BDN-06-158210 - in x direction/installation position A | 24 mm |
| in the z-direction / Installation position C | 21 mm |
| In combination with actuator CES-A-BDN-06-158210 - in the z-direction / Installation position C | min. 6 mm |
| Ordernumber | 168020 |
| Масса | 0,055kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
