EUCHNER GmbH + Co. KG CET1-AX-LRA-00-50X-SC
CET1-AX-LRA-00-50X-SC
Технические характеристики
| Solenoid | 11 W |
|---|---|
| Напряжение питания | 50 V |
| Напряжение питания | 0.8 kV |
| LED | 24 V DC -15% ... +15% reverse polarity protected |
| U CM | 24 V DC -15% ... +10% reverse polarity protected, regulated, residual ripple<5%, PELV |
| Solenoid duty cycle | 100 % |
| Safety class | III |
| Electrical connection values - LED | max. 6 mA |
| I CM | 450 mA Solenoid |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Anfahrgeschwindigkeit | max. 20 m/min |

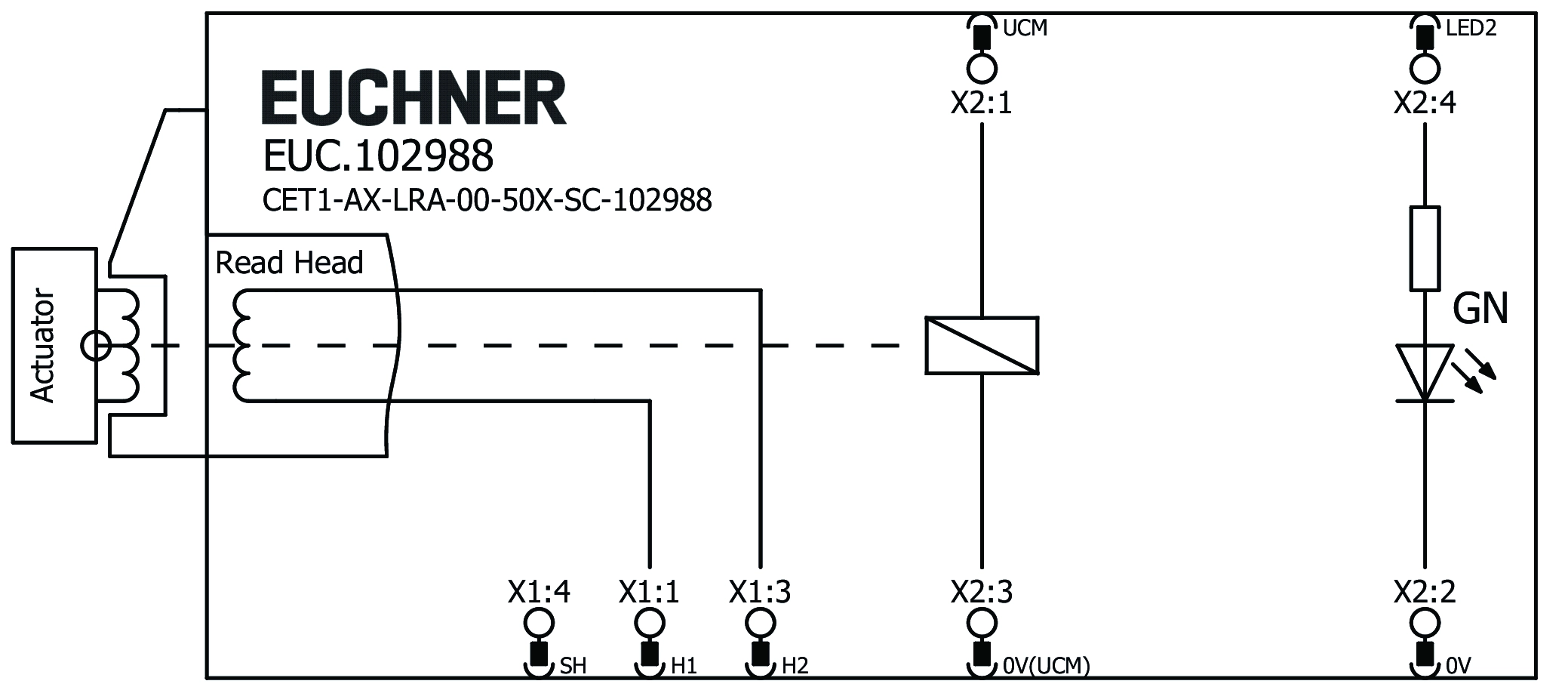

| Connection type | 2 plug connectors M8, 4-pin and 3-pin |
| Installation orientation | any |
| Switching frequency | 1 Hz |
| Degree of freedom X | ±5 mm |
| Degree of freedom Y | ±5 mm |
| Degree of freedom Z | ±4 mm |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 2 x 10⁶ |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP67 (with screwed tight plug connector) |
| at U B = 24 V DC | -20 ... 55 °C |
| Safety switch | Die-cast aluminum |
| Ramp | Stainless steel |
| Locking force F max | 6500 N |
| Locking force F Zh | 5000 N |
| Guard locking principle | Closed-circuit current principle |
| Ordernumber | 102988 |
| Масса | 1,1kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-05 Safety-related transponder switch with guardlocking |
