EUCHNER GmbH + Co. KG CIT3PL1N30-STR
CIT3PL1N30-STR
Технические характеристики
| LED display | Yellow: data carrier active |
|---|---|
| Output type | Push-pull |
| Напряжение питания | 20 ... 28 V DC (All the electrical connections must either be isolated from the mains supply by a safety transformer according IEC/ EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent isolation measures.) |
| per output | -30 ... +30 mA |
| without load | 65 ... 100 mA |
| Resistance | 4.5 kΩ Input resistance |

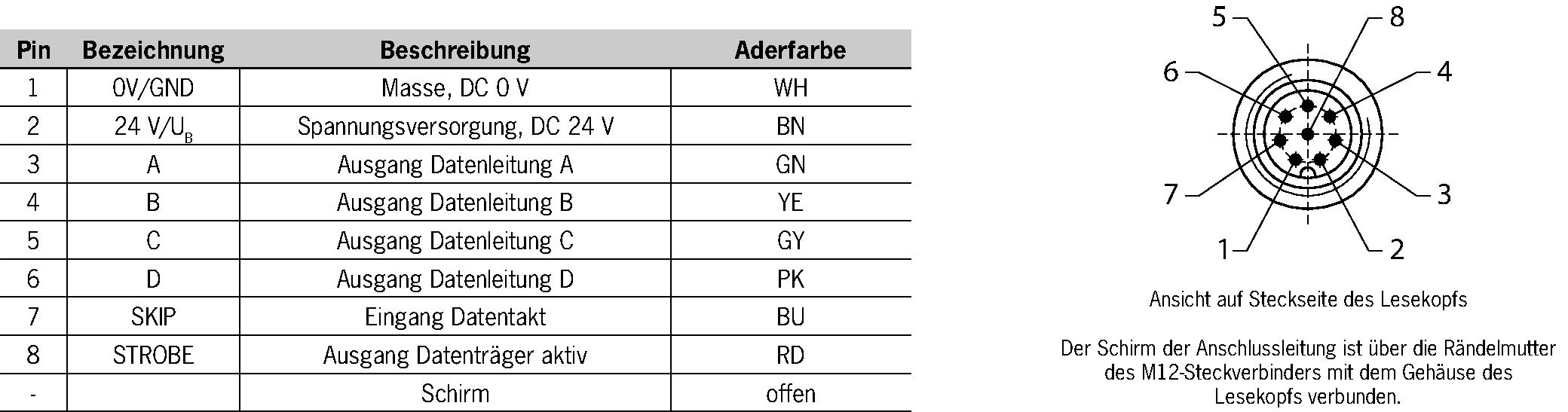

| Connection type | M12 plug, 8-pin, radial connection (The shield on the connecting cable is connected to the read head's housing via the knurled nut on the M12 plug connector.) |
| Storage temperature | -25 ... 70 °C |
| Mounting type | surface |
| Degree of protection | IP67 |
| Рабочая температура | 0 ... 50 °C |
| Housing | CuZn, nickel plated |
| Date interface | 4-bit binary coded + strobe |
| at 21 °C | 0 ... 7 ... 18 mm |
| In combination with actuator CIS3P35X16SH16YHNOU, CIS3P35X16SH16YHNOP, CIS3P35X16SH16YVNOU, CIS3P35X16SH16YVNOP - at 21 °C | 8 mm (Center offset mL in y direction (for sL = 7 mm)) |
| In combination with actuator CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOP - at 21 °C | 0 ... 5 ... 14 mm |
| at 25 °C | 18 mm (Center offset mL in x direction (for sL = 5 mm)) |
| In combination with actuator CIS3P16D08KH16YSNOU, CIS3P16D08KH16YSNOP - at 25 °C | 6 mm (Center offset mL in y direction (for sL = 5 mm)) |
| Ordernumber | 071950 |
| Масса | 0,218kg |
| Customs tariff number | 85389099990 |
| ECLASS 11.0 | 27-28-04-01 Identification, RFID Reader |
