EUCHNER GmbH + Co. KG CKS-A-L1B-SC-158081
CKS-A-L1B-SC-158081
Технические характеристики
| referred to the end stop for the inserted actuator | 30 mm (in conjunction with evaluation unit CES-AZ-xES-xxB) |
|---|---|
| Workspace - referred to the end stop for the inserted actuator | min. 2 mm (in conjunction with evaluation unit CES-AZ-xES-xxB) |
| LED display | white: valid actuator detected |
| Power supply | Via evaluation unit |

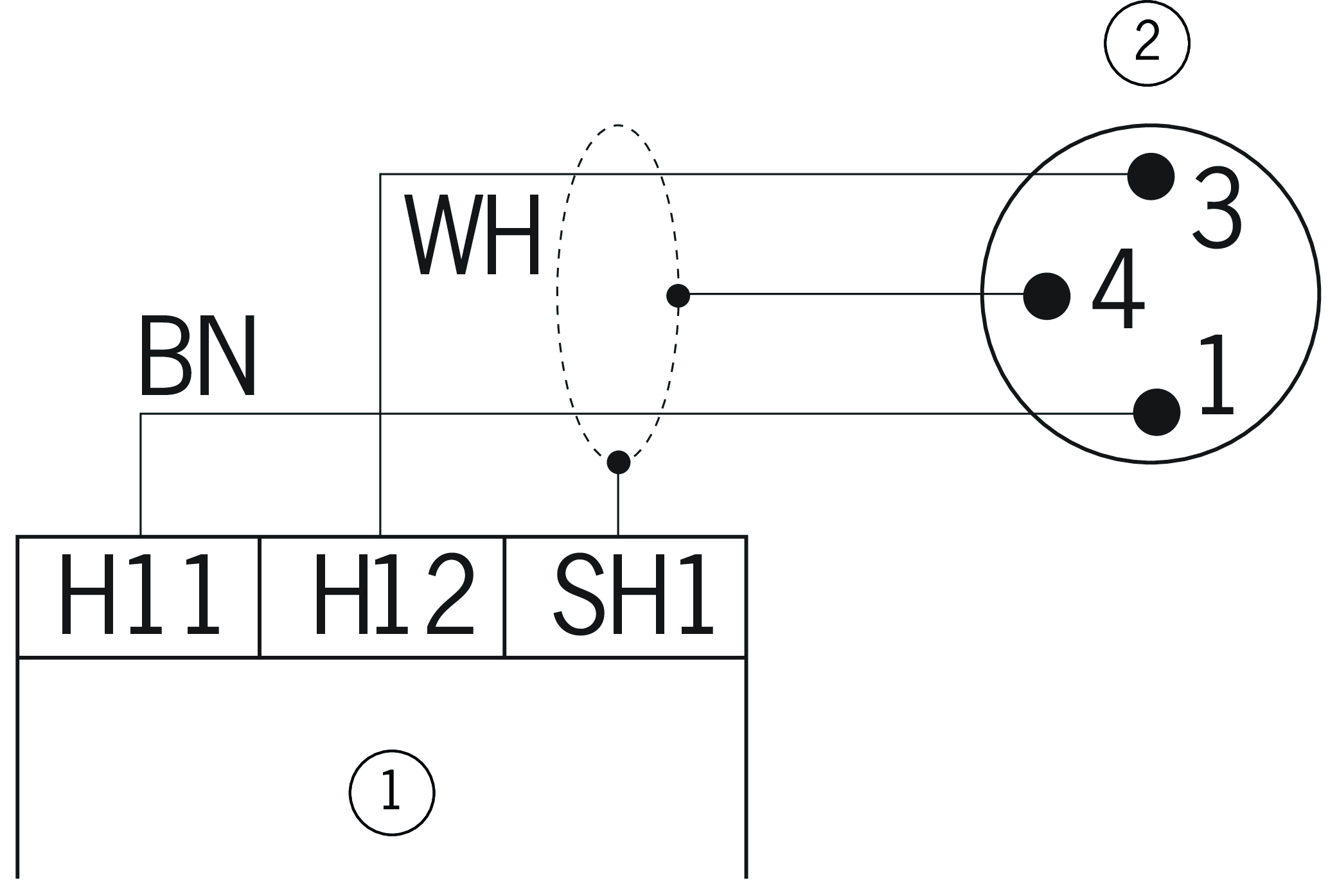

| Connection type | M8 plug connector, 3-pin |
| Fixing screws | 0.25 ... 0.35 Nm |
| Installation orientation | on the front |
| Switching frequency | see operating instructions for the related evaluation unit |
| Storage temperature | -25 ... 70 °C |
| maximum allowed | max. 25 m |
| Mounting type | Mounting using screw clamp elements on rear side |
| Mounting cut-out | 33 x 68 mm |
| in mounted condition (only access side) | IP65/IP67 (in the installed state) |
| Рабочая температура | -20 ... 70 °C |
| Housing | PA6-GF30 |
| Method of operation | inductive |
| Ordernumber | 158081 |
| Масса | 0,172kg |
| Customs tariff number | 85389099990 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
