EUCHNER GmbH + Co. KG CTM-LBI-BP-M-AZ-SA-166090

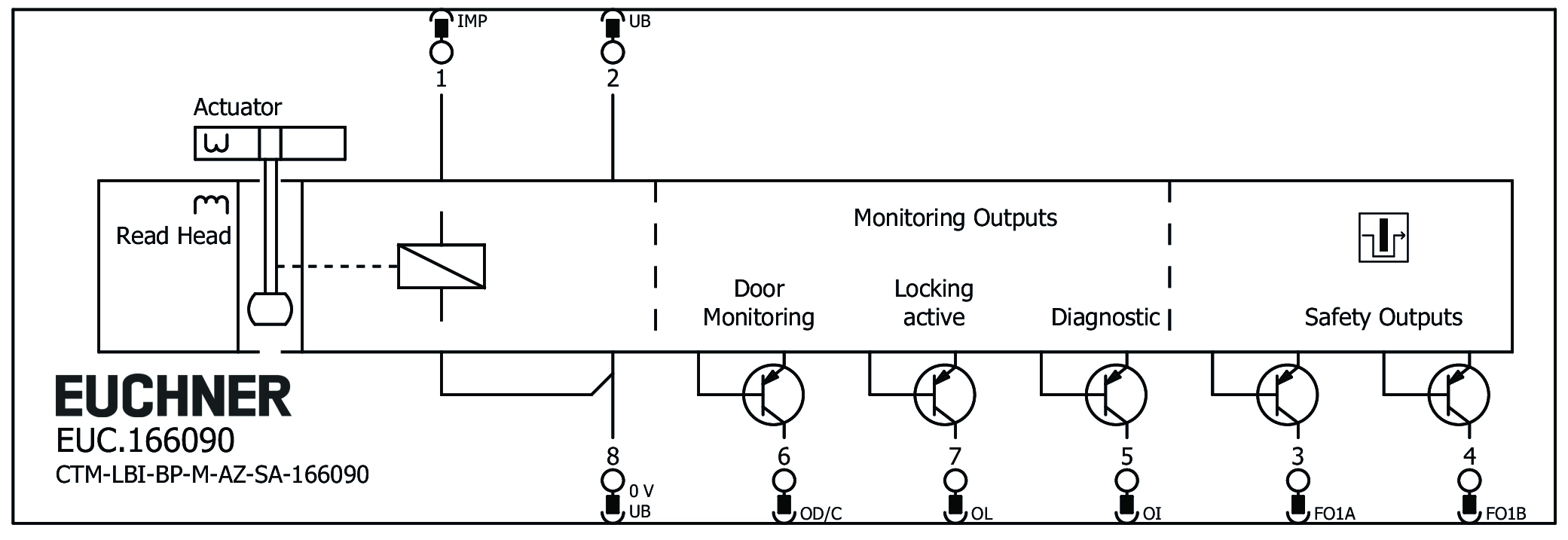

CTM-LBI-BP-M-AZ-SA-166090
Технические характеристики
| Repeat accuracy R | 10 % |
|---|---|
| Напряжение питания | 0.7 ... 8 A |
| at max. switching frequency | 3 W |
| Напряжение питания | 50 V |
| Напряжение питания | 0.5 kV |
| both safety outputs | max. 10 ms Acc. to EN IEC 60947-5-3 |
| Turn-on time | max. 400 ms |
| Solenoid duty cycle | 100 % |
| Off-state current Ir | max. 0.25 mA |
| Risk time according to EN 60947-5-3 | max. 200 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 10 ms |
| Switching load | DC 24V, UL Class 2 (alternatively, see operating instructions) |
| Safety class | III |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | 100 ms |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Guard locking not active (open) | 20.4 ... 26.4 V DC |
| Guard locking active (closed) | 0 ... 5 V DC |
| Electrical connection values - Guard locking not active (open) | 20 ... 50 mA |
| Output type | p-switching, short circuit-proof |
| Напряжение питания | 0.8xUB ... UB V DC |
| Switching current | 1 ... 50 mA |
| Electrical connection values - Output type | 2 semiconductor outputs, p-switching, short circuit-proof |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| HIGH U(FO1A) / U(FO1B) | UB-1.5 ... UB V DC |
| Discrepancy time | Acc. to EN IEC 60947-5-3 |
| DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| Electrical switching frequency | max. 0.25 Hz |
| per safety output FO1A / FO1B | 1 ... 150 mA |
| U UB | 24 V DC -15% ... +15% reverse polarity protected, regulated, residual ripple<5%, PELV |
| Напряжение питания | max. 500 mA |
| Anfahrgeschwindigkeit | max. 20 m/min |
| Connection type | Plug connector M12, 8-pin |
| Extraction force | 18 N |
| Ready delay | 5.5 s |
| Actuating force | 20 N |
| Installation orientation | any |
| Switching frequency | max. 0.25 Hz |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Overtravel | 2 mm |
| Retention force | 5 N |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65/IP67 (In the inserted and screwed tight state) |
| at U B = 24 V DC | -20 ... 60 °C |
| Safety switch housing | Reinforced thermoplastic |
| Seals | Fluorinated rubber (FKM) |
| Locking force F max | 1300 N |
| Locking force F Zh | 1000 N |
| Guard locking principle | BiState |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
| Ordernumber | 166090 |
| Масса | 0,26kg |
| Customs tariff number | 85365019 |
| ECLASS 11.0 | 27-27-24-05 Safety-related transponder switch with guardlocking |
