EUCHNER GmbH + Co. KG CTS-C1-BR-CC-FLX-AP-VSA-174014
CTS-C1-BR-CC-FLX-AP-VSA-174014

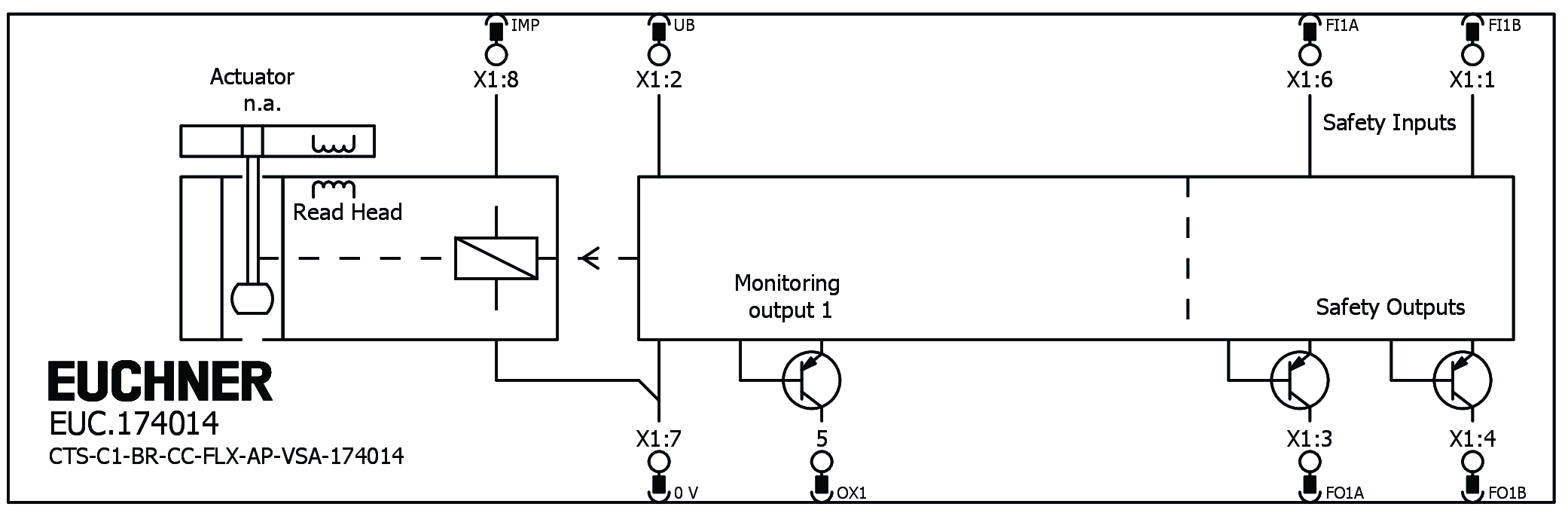

Технические характеристики
| UB | 1 ... 8 A external |
|---|---|
| IMP | 1 ... 8 A external |
| Power consumption | 9 W |
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 32 V |
| Напряжение питания | 0.8 kV |
| Electrical connection values - UB | 24 V DC -15% ... +20% (reverse polarity protected, regulated, residual ripple<5%, SELV) |
| Discrepancy time | max. 10 ms |
| Turn-on time | max. 400 ms |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| Напряжение питания | 24 V DC -15% ... +20% reverse polarity protected, regulated, residual ripple<5%, SELV |
| Solenoid duty cycle | 100 % |
| Risk time according to EN 60947-5-3 | max. 200 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 10 ms |
| according to UL | DC 24 V, Class 2 |
| Safety class | III |
| I IMP | 500 mA |
| I UB | 50 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | p-switching, short circuit-proof |
| Напряжение питания | 0.8xUB ... UB V DC |
| I-configuration (guard lock monitoring inactive) | 1 ... 10 mA |
| L configuration (guard lock monitoring active) | 1 ... 20 mA |
| Electrical connection values - Output type | Semiconductor outputs, p-switching, short circuit-proof |
| U FO1A /U FO1B LOW | 0 ... 1 V DC |
| U FO1A /U FO1B HIGH | UB-4V ... UB V DC (Value at a switching current of 50mA without taking into account the cable lengths) |
| Electrical connection values - I-configuration (guard lock monitoring inactive) | 1 ... 75 mA |
| Electrical connection values - L configuration (guard lock monitoring active) | 1 ... 80 mA |
| DC-13 I configuration (guard lock monitoring inactive) | 24V 75mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| DC-13 L configuration (guard lock monitoring active) | 24V 80mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 96 ms |
| Anfahrgeschwindigkeit | max. 20 m/min |
| Extraction force | 25 N |
| Ready delay | max. 5 s |
| Actuating force | 25 N |
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Retention force | 10 N |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65/IP67/IP69/IP69K |
| Рабочая температура | -20 ... 55 °C (A maximum value of +50 °C applies in the I-configuration of the switch (guard lock monitoring inactive)) |
| Connecting cable | PVC |
| Safety switch housing | Reinforced thermoplastic |
| Switch head cover | Die-cast zinc |
| Locking force F max | 5000 N |
| Locking force F Zh | 3800 N |
| Guard locking principle | Closed-circuit current principle |
| Connection type | Connecting cable with plug connector M12 |
| Static bending radius | 8x cable diameter |
| Cable outlet | straight |
| Cable length | 0.25 m |
| Number of pins | 8 |
| Switching frequency | max. 0.2 Hz |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
| Ordernumber | 174014 |
| Масса | 0,555kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-05 Safety-related transponder switch with guardlocking |
