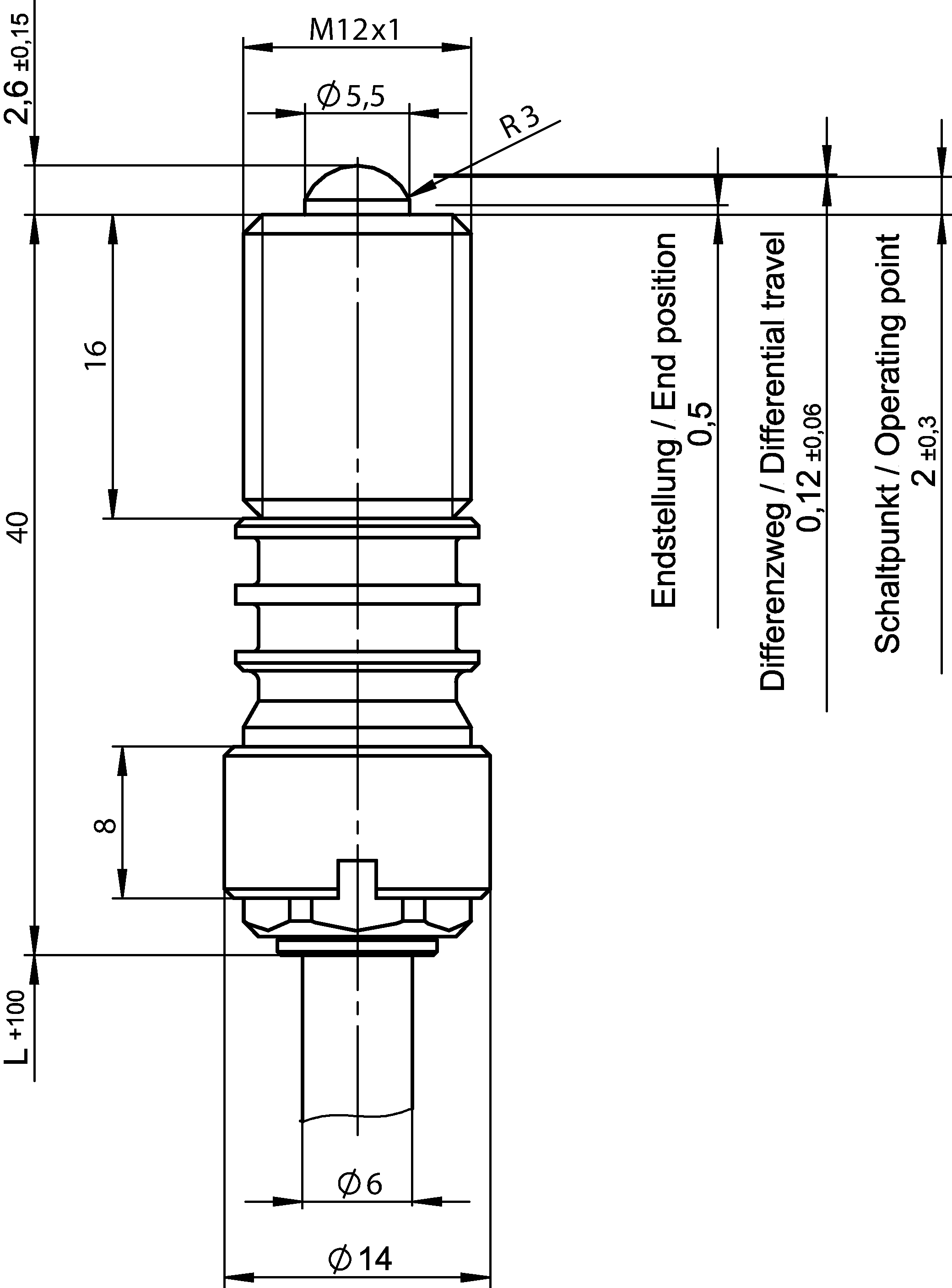

EUCHNER GmbH + Co. KG EGM12-2500C2452
EGM12-2500C2452
Технические характеристики
| Fuse | max. 2 A gG |
|---|---|
| Connection cross section | 0.5 mm² |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| AC-15 | 0.5 A 230 V |
| DC-13 | 0.6 A 24 V |
| min. | 12 V |
| min. at 24 V | 10 mA |
| Anfahrgeschwindigkeit | 0.01 ... 8 m/min |
| Connection type | PUR cable (three-core) |
| Number NC contacts | 1 (Changeover contact) |
| Number of NO contacts | 1 (Changeover contact) |
| Design | Thread M12 x 1 |
| Actuating element | Rounded plunger (short) |
| Actuating force | 16 N |
| Installation orientation | any |
| Storage temperature | -25 ... 80 °C |
| Cable length | 2.5 m |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action switching contact |
| Degree of protection | IP65 |
| Рабочая температура | -20 ... 80 °C |
| Housing | stainless steel |
| Contact | Silver alloy, gold plated |
| Repeat accuracy (absolute) | ±0.01 mm (on axial actuation in the retracted state after approx. 2,000 operating cycles) |
| C2452 | Rounded plunger |
| Ordernumber | 126384 |
| Масса | 0,155kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-06-01 Position switch (Type 1) |
