EUCHNER GmbH + Co. KG EKS-A-APR-G08
EKS-A-APR-G08
Технические характеристики
| red | Error |
|---|---|
| yellow | Key in the actuating range |
| green | operational |
| Connection cross section | 0.14 ... 2.5 mm² |
| Напряжение питания | 9 ... 24 ... 28 V DC (This device is intended to be used with a Class 2 power source in accordance with UL1310.) |
| Current consumption | max. 70 mA |
| Напряжение питания | U B -2 ... U B V (High signal) |
| Switching current | 1 ... 10 ... 50 mA (High signal) |
| Connection type | plug-in screw terminal |
| Number of read heads | max. 1 |
| Storage temperature | -25 ... 70 °C |

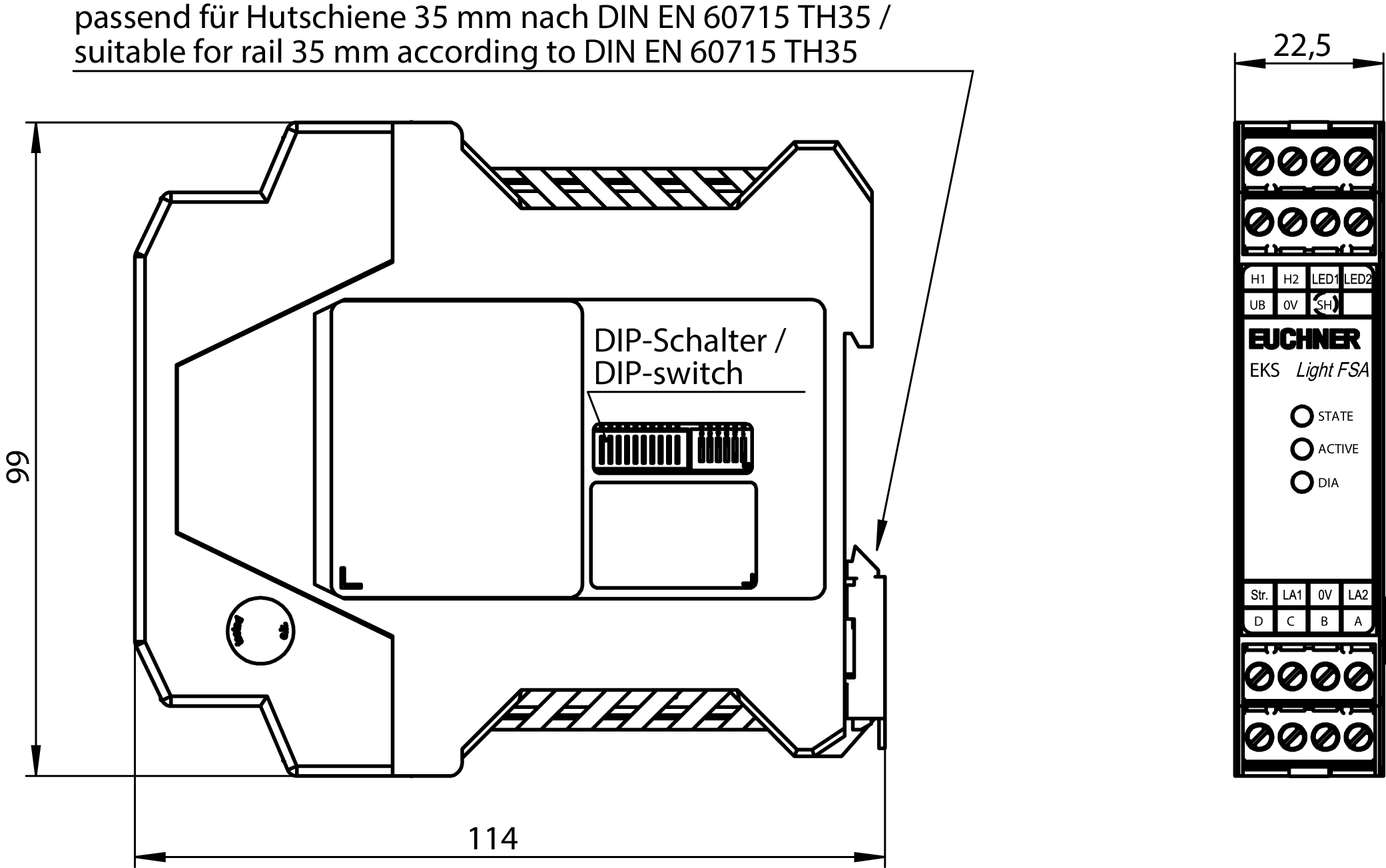

| Mounting type | Mounting rail TH 35 (EN IEC 60715) |
| at U B = 24 V DC | 0 ... 55 °C |
| Housing | PA6.6, gray |
| Date interface | 4-bit parallel plus strobe, binary coded via High/Low level |
| Ordernumber | 113647 |
| Масса | 0,19kg |
| Customs tariff number | 85364110 |
| ECLASS 11.0 | 27-39-90-90 Property, access monitor (other, unspecified) |
