EUCHNER GmbH + Co. KG EKS2-R-I1B1-B1-170919
EKS2-R-I1B1-B1-170919
Технические характеристики
| U B | 24 V DC -15% ... +20% regulated, residual ripple<5%, PELV (Supply via EKS2 evaluation unit) |
|---|---|
| Connection type | RJ9 plug connector, 4-pin |
| Installation orientation | on the front |
| Storage temperature | -25 ... 70 °C |
| Cable length | max. 50 m |

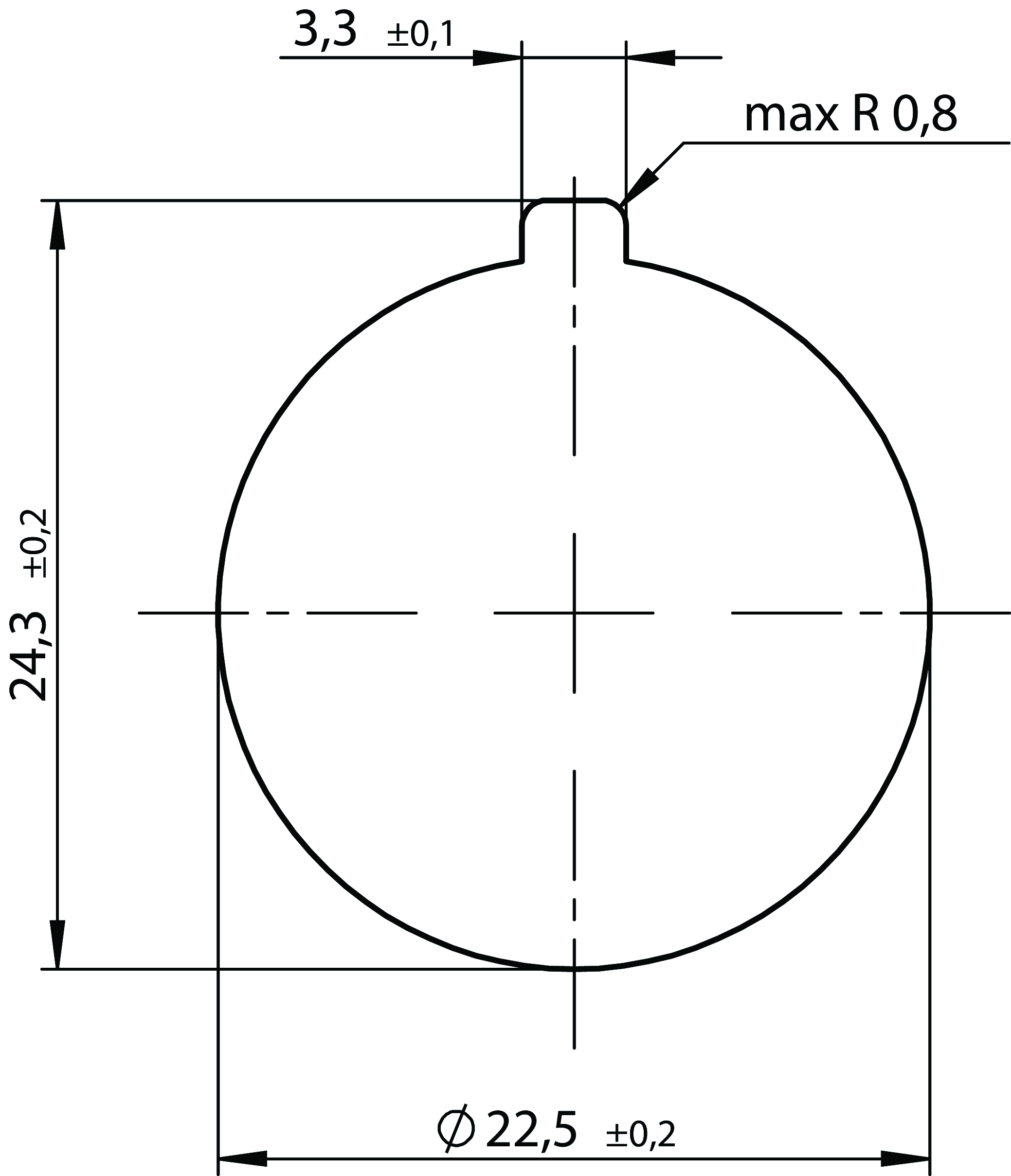

| Mounting cut-out | D22 (EN IEC 60947-5-1) |
| rear side of the panel | IP20 |
| in installed state | IP65/IP67/IP69/IP69K |
| Рабочая температура | -20 ... 55 °C |
| Housing | Plastic TPU, PBT |
| Method of operation | inductive |
| Ordernumber | 170919 |
| Масса | 0,055kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-39-90-90 Property, access monitor (other, unspecified) |
