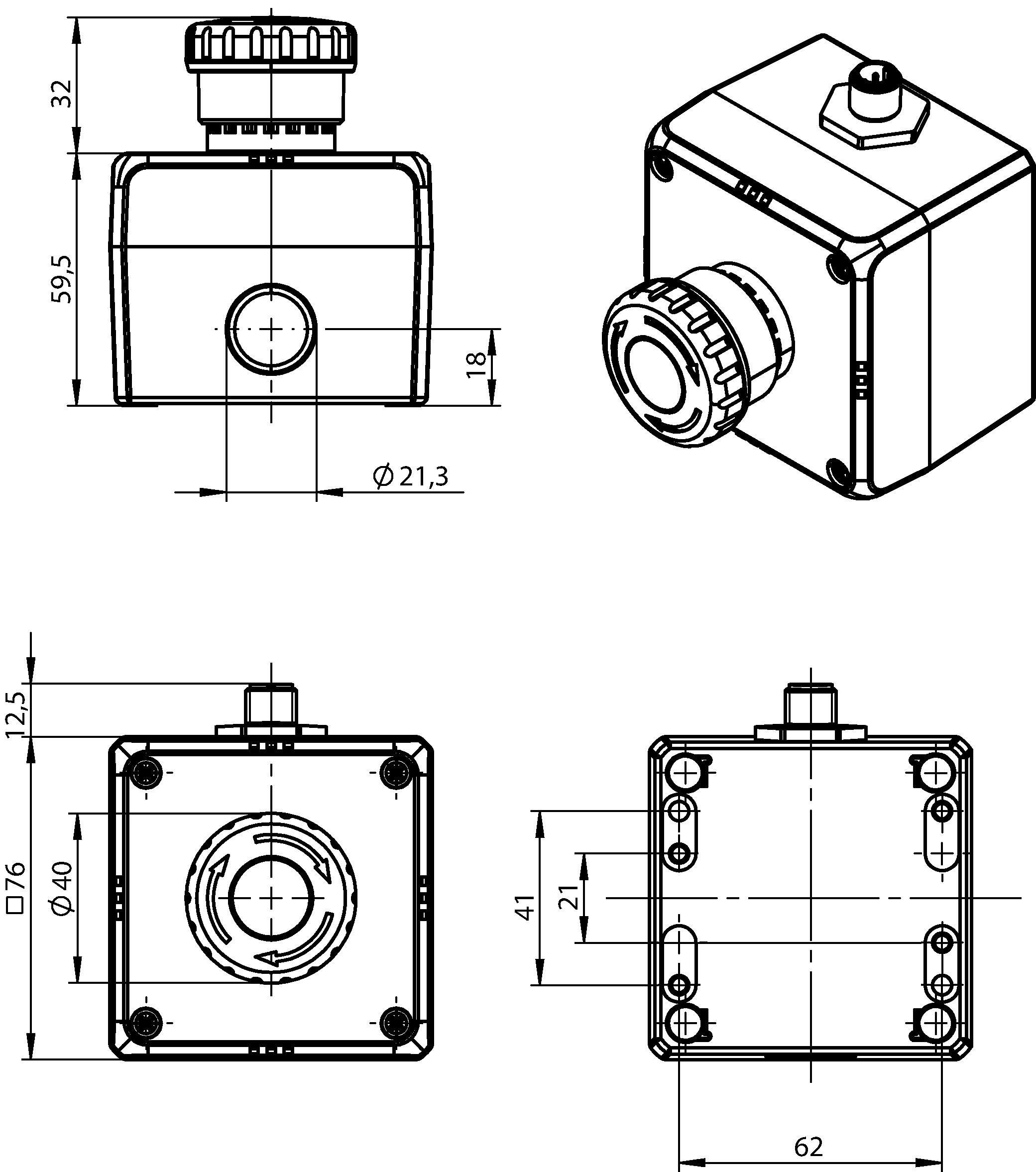

EUCHNER GmbH + Co. KG ES-FB1W-XW1E-LV412Q4MFR-YO-1C2530
ES-FB1W-XW1E-LV412Q4MFR-YO-1C2530
Технические характеристики
| Напряжение питания | 50 V |
|---|---|
| AC/DC | -10% ... 24 ... +10% V |
| Operating current | 15 mA |
| DC-14 Normally open contact | 0.3 A 50 V |
| AC-15 Normally closed contact | 1.5 A 50 V |
| DC-13 Normally closed contact | 1 A 30 V |
| min. at 24 V | 10 mA |
| thermal rated current I th | 1 A |
| Connection type | Plug connector M12 (5-pin (without PE)) |
| Number of NO contacts | 1 |
| Number of positively driven contacts | 2 |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 0.25 x 10⁶ |
| Degree of protection | IP65 |
| Рабочая температура | -25 ... 55 °C |
| Housing | Polycarbonate |
| Pushbutton | Reinforced thermoplastic |
| Contact | Silver alloy, gold flashed |
| Lighting | Yes |
| C2530 | Pin assignment to customer requirements |
| Bottom part | yellow |
| Actuating button | red transparent |
| Ordernumber | 169351 |
| Масса | 0,27kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-37-12-44 EMERGENCY-STOP pushbutton, complete device |
