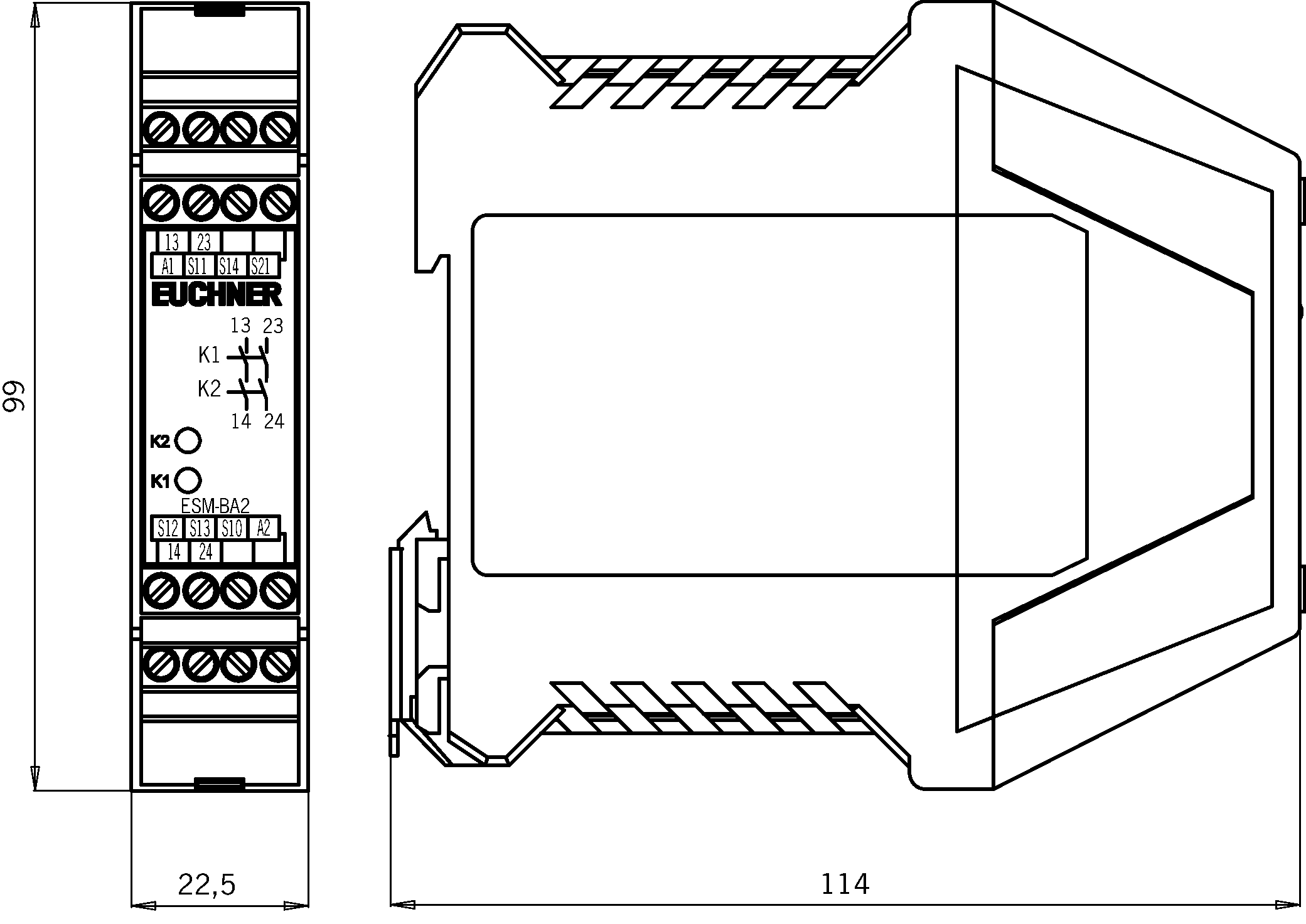

EUCHNER GmbH + Co. KG ESM-BA201
ESM-BA201
Технические характеристики
| LED display | 2 status displays (green) for relays K1 and K2 |
|---|---|
| at 24 V DC | 1.5 W |
| Connection cross section | 0.14 ... 2.5 mm² (Connection terminals (size)) |
| Напряжение питания | 250 V |
| Rated supply frequency | 50 ... 60 Hz |
| Напряжение питания | 4 kV |
| AC/DC | 24 V -10% ... +10% (All the electrical connections must either be isolated from the mains supply by a safety transformer according to EN 61558-2-6 with limited output voltage in the event of a fault, or by other equivalent insulation measures.) |
| Напряжение питания | 2.5 kV |
| to S11 DC | 24 V |
| S11...S14 | 40 mA |
| Напряжение питания | III |
| On version U B = 24 V DC | Yes |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| Contact fuses | 10 AgG |
| Output type | Relay contacts, floating and positively driven (redundant) |
| AC-15 | 250 V 3A |
| DC-12 | 6A resistive load, 24 V (6 operating cycles/min.) |
| DC-13 | 24 V 3A |
| AC-12 | 6A resistive load, 250 V (6 operating cycles/min.) |
| AC | max. 250 V |
| at 5 V | min. 10 mA |
| Connection type | Connection terminals |
| Storage temperature | -25 ... 70 °C |
| with conductor cross-section 0.75 mm 2 | 1000 m |
| operating cycles | 10 x 10⁶ |
| Mounting type | Mounting rail TH 35 (EN IEC 60715) |
| Degree of protection | IP20 |
| at U B = 24 V AC | -15 ... 40 °C (+60 °C at 24 V DC and at 20% undervoltage, T max : 50 °C) |
| Contact | AgSnO 2 |
| Housing | Polyamide PA6.6 |
| in compliance with | siehe Konformitätserklärung |
| Ordernumber | 085610 |
| Масса | 0,202kg |
| Customs tariff number | 85364110 |
| ECLASS 11.0 | 27-37-18-19 Device for monitoring of safety-related circuits |
