EUCHNER GmbH + Co. KG ESM-BA302
ESM-BA302

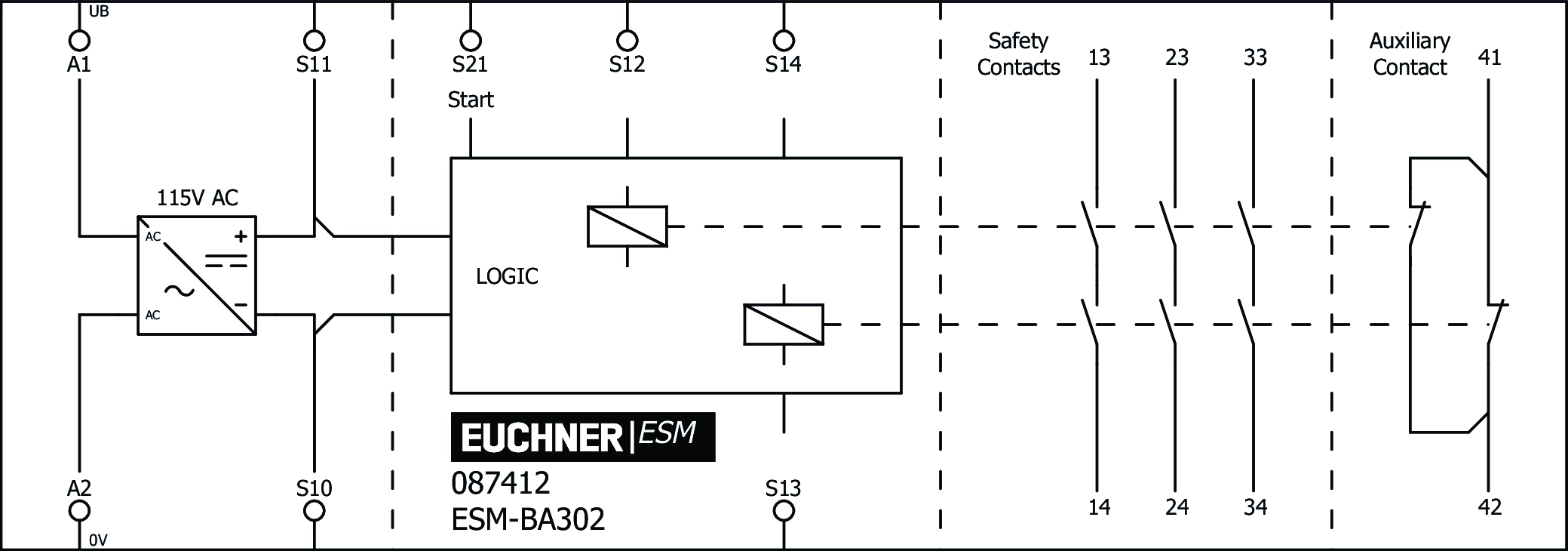

Технические характеристики
| LED display | 2 status displays (green) for relays K1 and K2 |
|---|---|
| at 230 V AC | 6.9 VA |
| Connection cross section | 0.14 ... 2.5 mm² (Connection terminals (size)) |
| Напряжение питания | 250 V |
| Rated supply frequency | 50 ... 60 Hz |
| Напряжение питания | 4 kV |
| AC | 115 V -10% ... +10% |
| Напряжение питания | 2.5 kV |
| to S11 DC | 24 V |
| S11...S14 | 60 mA |
| Напряжение питания | III |
| Degree of contamination (external, according to EN 60947-1) | 2 |
| Contact fuses | 10 AgG |
| Output type | Relay contacts, floating and positively driven (redundant) |
| DC-12 | 8A resistive load, 40 V (6 operating cycles/min.) |
| AC-12 | 8A resistive load, 250 V (6 operating cycles/min.) |
| DC-13 | 24 V 3A |
| AC-15 | 250 V 3A |
| Electrical connection values - AC | max. 250 V |
| at 5 V | min. 10 mA |
| Cumulative current | max. 15 A for all contacts ("When several ESM-BA3.. units are closely spaced under load, the maximum cumulative current at an ambient temperature of T=20°C is 9 A; at T=30°C, 3 A; and at T=40°C, 1 A. If these currents are exceeded, a distance of 5 mm must be maintained between the devices.") |
| Electrical connection values - Output type | Relay contacts, dry contacts |
| Connection type | Connection terminals |
| Storage temperature | -25 ... 70 °C |
| with conductor cross-section 0.75 mm 2 | 1000 m |
| operating cycles | 10 x 10⁶ |
| Mounting type | Mounting rail TH 35 (EN IEC 60715) |
| Degree of protection | IP20 |
| Рабочая температура | -15 ... 40 °C (If several ESM-BA3.. devices are closely spaced under load, the max. cumulative current is 9 A at an ambient temperature of T=20 °C , 3 A at T=30 °C and 1 A at T=40 °C. If these currents are exceeded, a spacing of 5mm between the devices must be observed.) |
| Contact | AgSnO 2 |
| Housing | Polyamide PA6.6 |
| in compliance with | siehe Konformitätserklärung |
| Ordernumber | 087412 |
| Масса | 0,295kg |
| Customs tariff number | 85364110 |
| ECLASS 11.0 | 27-37-18-19 Device for monitoring of safety-related circuits |
