EUCHNER GmbH + Co. KG HKB100S7G24
HKB100S7G24
Технические характеристики
| Connection cross section | 0.08 ... 1.5 mm² |
|---|---|
| Connection cross section AWG | 28 ... 16 AWG |

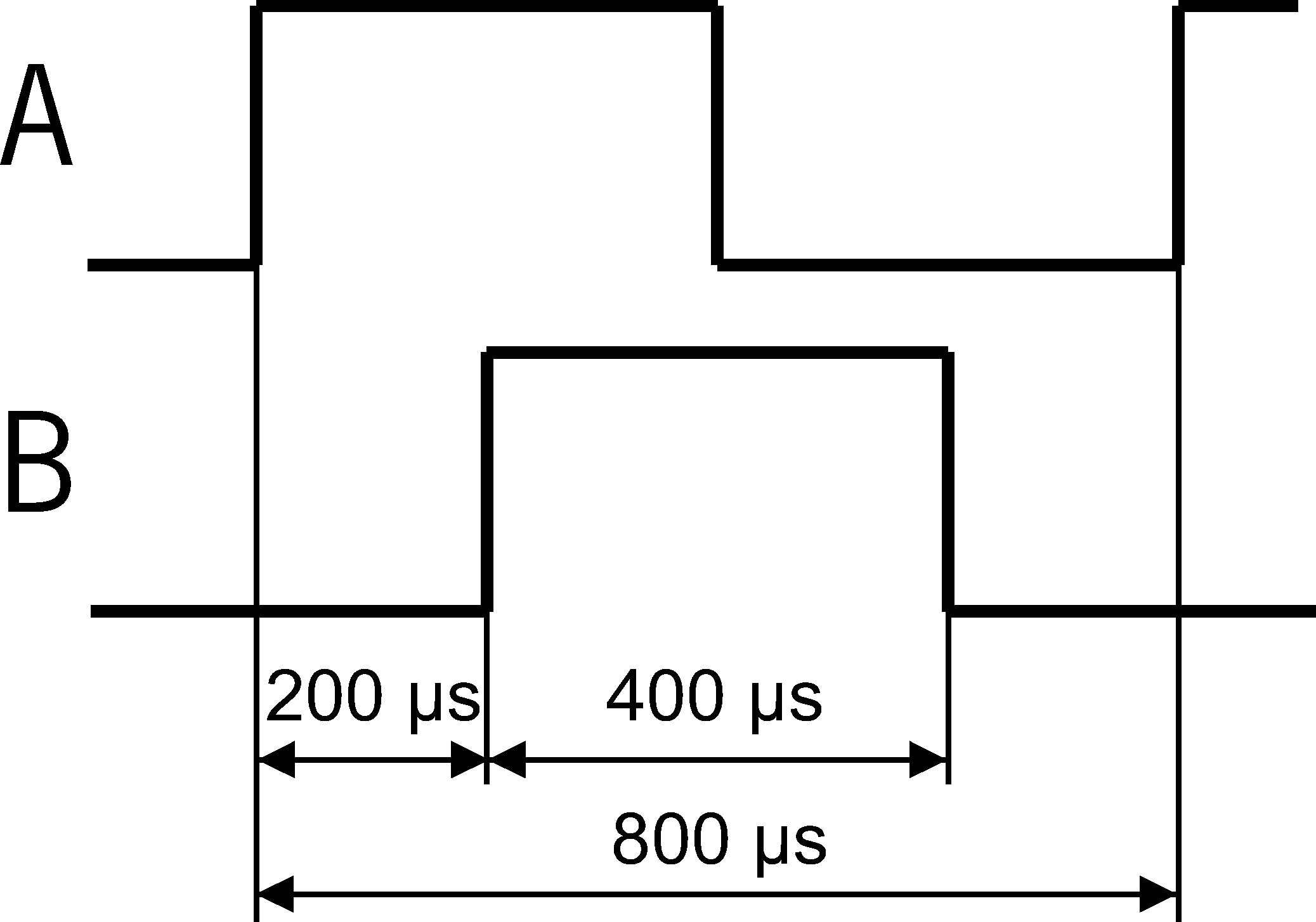

| Output type | Push-pull |
| LOW(0) | max. 3 V DC at 20mA |
| HIGH(1) | min. Ub-3 V DC at 20mA |
| Напряжение питания | 10 ... 30 V DC |
| according to CE | EN 61000-6-2, EN 61000-6-4 |
| Pulses per revolution | 2x100 |
| without load | max. 80 mA |
| Connection type | Screw terminal, 7-pin |
| Tightening torque | max. 0.25 Nm |
| Storage temperature | -25 ... 70 °C |
| (condensation not permissible) | 80 % rH |
| Mechanical life | 5 x 10⁶ |
| Detent positions per revolution | 100 |
| Shock and vibration resistance | according to EN 60068-2-27/-2-6 |
| according to NEMA | 250-12 (in the installed state) |
| Рабочая температура | 0 ... 50 °C |
| Материал | Aluminum |
| Detent mechanism | Magnetic |
| Ordernumber | 105138 |
| Масса | 0,17kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-24-23-07 Command-, control-, signal appliance |
