EUCHNER GmbH + Co. KG HWB100T100G05/V5
HWB100T100G05/V5
Технические характеристики
| Output type | Push-pull |
|---|---|
| LOW(0) | max. 0.5 V DC at 20mA |
| HIGH(1) | min. 4.0 V DC at 20mA |
| Напряжение питания | 5 V DC -10% ... +10% |
| Pulses per revolution | 2x100 |
| without load | max. 80 mA |

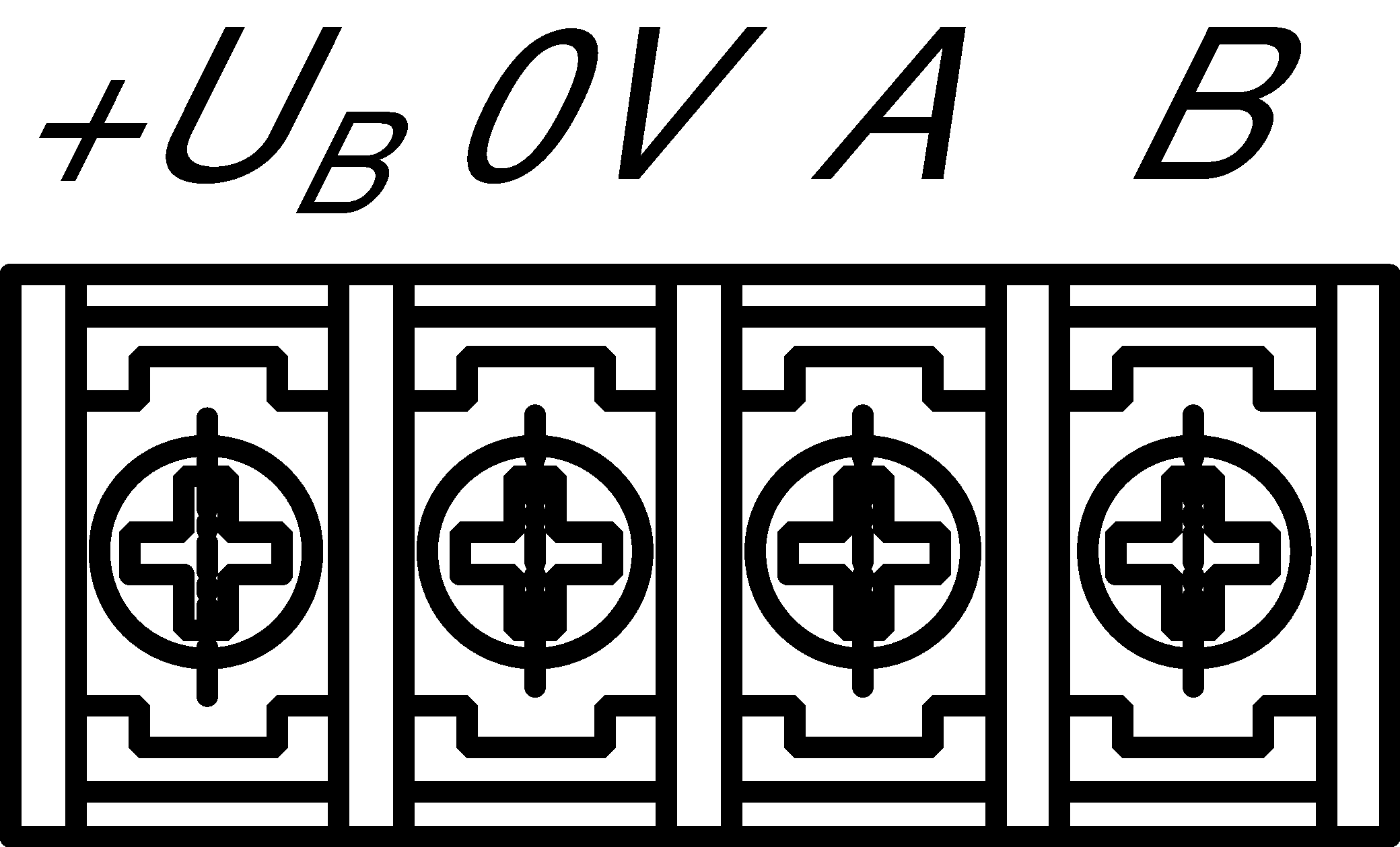

| Connection type | Screw terminals, 4-pin |
| Storage temperature | -25 ... 70 °C |
| (condensation not permissible) | 80 % rH |
| Mechanical life | 1 x 10⁶ |
| Detent positions per revolution | 100 |
| according to NEMA | 250-12 (in the installed state) |
| Рабочая температура | 0 ... 50 °C |
| Материал | Metal |
| Detent mechanism | mechanical |
| Control panel thickness | Max. 3 mm |
| Ordernumber | 072974 |
| Масса | 0,872kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-24-23-07 Command-, control-, signal appliance |
