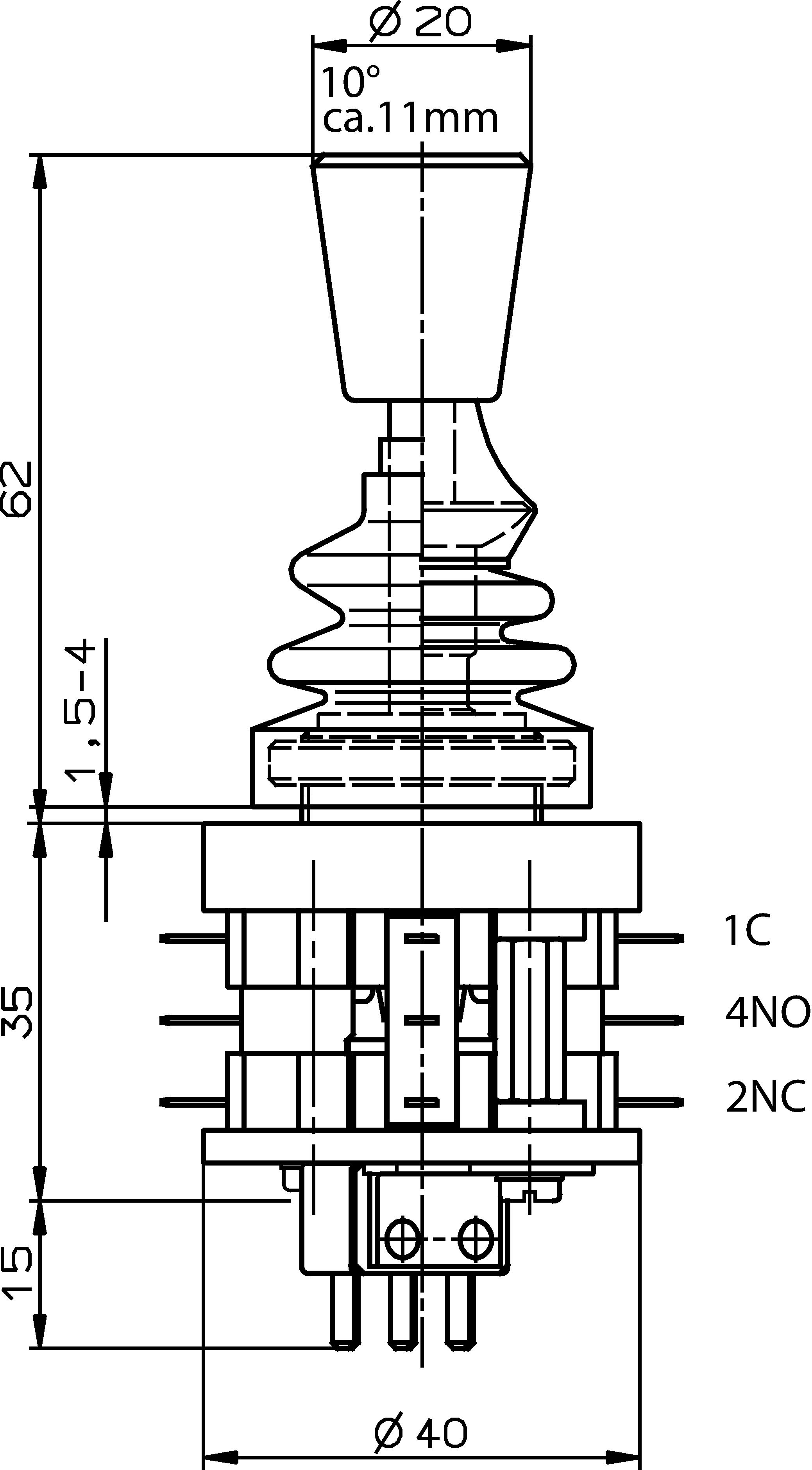

EUCHNER GmbH + Co. KG KES1234
KES1234
Технические характеристики
| Fuse | T10/F20 |
|---|---|
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 24V 2A |
| AC-15 | 230V 4A |
| Напряжение питания | min. 10 V |
| (at 24V) | min. 12 mA |
| Connection type | Tab connector 2.8x0.5 IEC760 |
| Number of monitoring contacts | 4 (4 directions) |
| Actuating directions | 4 (Switch) |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Mounting cut-out | D22 (EN IEC 60947-5-1) |
| Switching principle | Changeover contact C, IEC 947-5-1 (Snap-action contact element, design ES587) |
| on the front with bellows | IP65 |
| Рабочая температура | -25 ... 65 °C |
| Contact | Silver alloy |
| Ordernumber | 034847 |
| Масса | 0,105kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-37-14-04 Control switch, joystick |
