EUCHNER GmbH + Co. KG LEITUNG-12-ADRIG-3,5M
LEITUNG 12-ADRIG 3,5M
Технические характеристики
| Cable shielding | Yes (Cu thread covering, optical coverage approx. 90%) |
|---|---|
| specific conductor resistance | max. 145 Ω/km |

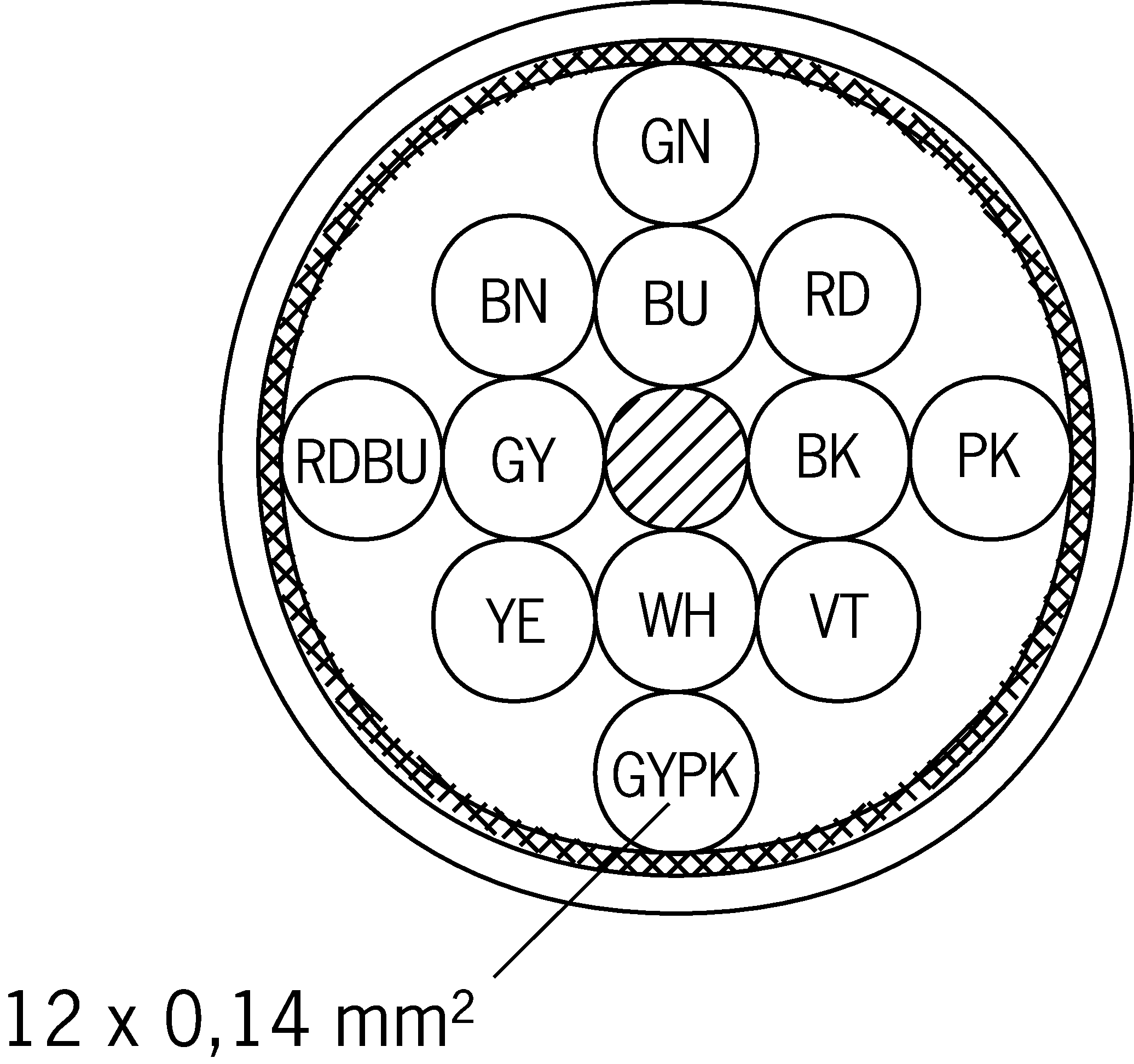

| Conductor identification | Color code according to DIN 47100 |
| Conductor cross-section | 0.14 mm² |
| Number of conductors | 12 |
| Dynamic bending radius | 15 x cable diameter |
| Static bending radius | 10 x cable diameter |
| Storage temperature | -40 ... 80 °C |
| Cable type | straight |
| Cable diameter | 6.0 mm -0,3 ... +0,3 mm |
| Cable length | 3.5 m |
| Sheath color | black matte |
| Рабочая температура | -10 ... 70 °C |
| Рабочая температура | -40 ... 80 °C |
| Sheath | PUR |
| Conductor end | trimmed smooth |
| Connection type | flying lead |
| Ordernumber | 087379 |
| Масса | 0,184kg |
| Customs tariff number | 85389099990 |
| ECLASS 11.0 | 27-06-03-04 Appliance cord (data cable) |
