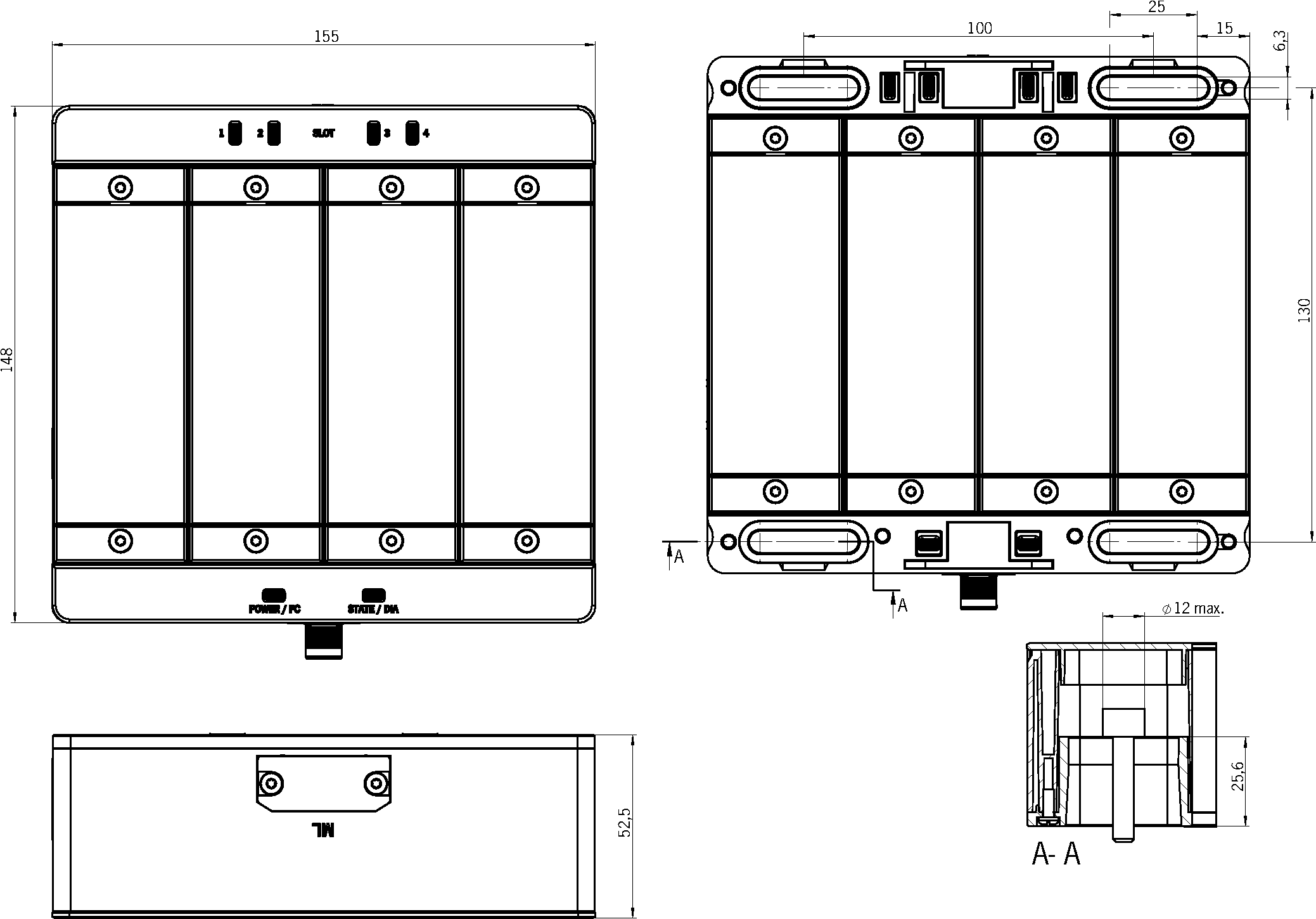

EUCHNER GmbH + Co. KG MCM-MLI-YA9B1A9B1-LA-155996
MCM-MLI-YA9B1A9B1-LA-155996
Технические характеристики
| Storage temperature | -25 ... 70 °C |
|---|---|
| PFH D | 2.82 x 10 -9 |
| Current consumption | max. 30 mA |
| Breaking capacity | max. 0.25 W |
| Напряжение питания | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
| Installation orientation | any |
| Mechanical values and environment - Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| at U B = 24 V DC | -25 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Submodulbreite | 1 |
| Software ID (SW ID) | 127040 |
| Additional feature | incl. lens set, ID no. 163284 |
| Mechanical values and environment - Installation orientation | any |
| Mechanical values and environment - Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Mechanical values and environment - at U B = 24 V DC | -30 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Miscellaneous - Submodulbreite | 1 |
| Miscellaneous - Additional feature | Incl. label holder, ID no. 156732 |
| MLI | 5-pin, M12x1 |
| Напряжение питания | 36 V |
| Напряжение питания | 30 V |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
| Рабочая температура | -30 ... 55 °C |
| Connection type | 2x M4 screws |
| Mechanical values and environment - Connection type | Male plug |
| Number of pins | 5 |
| Mechanical values and environment - Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Plug housing | Plastic |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Mechanical values and environment - Number of pins | 5 |
| Mechanical values and environment - Insertion cycles | 100 |
| Mechanical values and environment - Plug housing | Plastic, die-cast zinc, nickel plated |
| Plug lock | die-cast zinc, nickel plated |
| Напряжение питания | 75 V |
| Напряжение питания | 0.5 kV |
| EMC protection requirements | EMC Directive 2014/30/EU |
| Safety class | III |
| Electrical connection values - Current consumption | max. 75 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Switching frequency | 0.25 Hz |
| Mechanical life | 1 x 10⁶ |
| Housing | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
| Slotkonfiguration | 1,1,1,1 |
| Electrical connection values - Degree of contamination according to EN 60664-1 | 3 |
| Рабочая температура | -30 ... 55 °C |
| Color | black |
| Ordernumber | 155996 |
| Масса | 1,3kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-24-26-03 Field bus, decentralized peripheral - module carrier |
