EUCHNER GmbH + Co. KG MGB-L0-APA-AA1A2-S1-R-112596
MGB-L0-APA-AA1A2-S1-R-112596
Технические характеристики

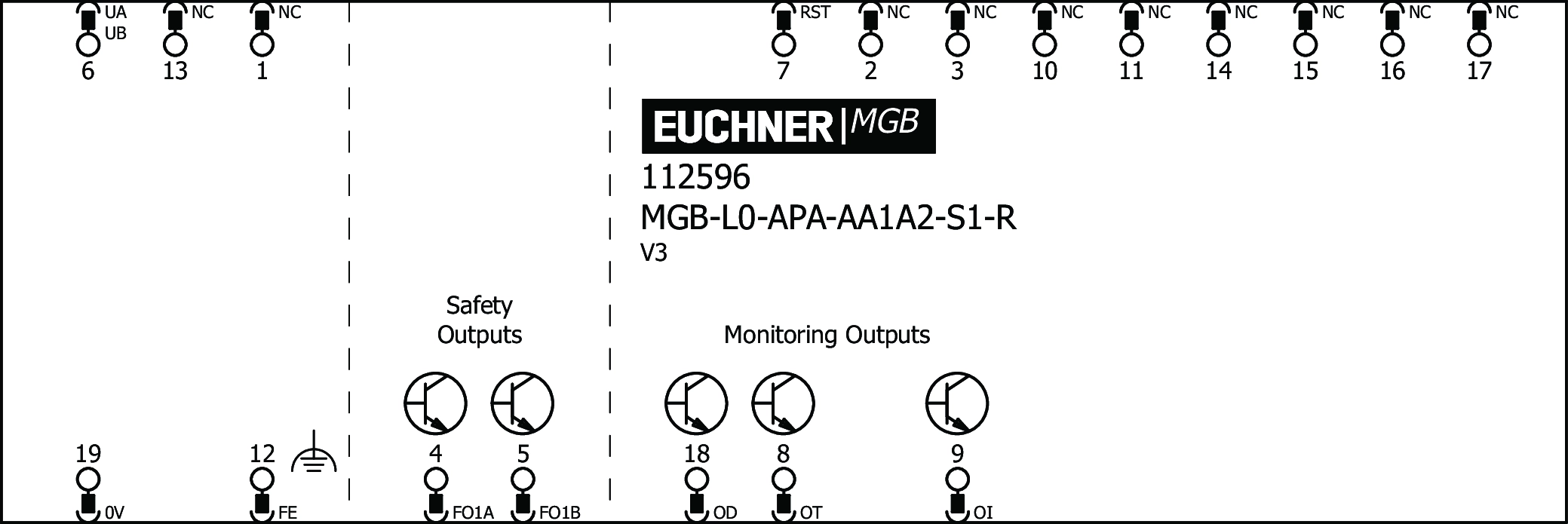

| Occupancy diagram | L0 |
|---|---|
| Напряжение питания | 30 V |
| Напряжение питания | 1.5 kV |
| between FO1A and FO1B | max. 10 ms |
| DC-13 | 24V 200mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.) |
| Risk time according to EN 60947-5-3 | max. 350 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Напряжение питания | UA-2V ... UA V DC (Value at a switching current of 50mA without taking into account the cable lengths) |
| Output current | max. 50 mA |
| Electrical connection values - Output type | Semiconductor outputs, p-switching, short circuit-proof |
| U FO1A /U FO1B HIGH | UB-2V ... UB V DC (Value at a switching current of 50mA without taking into account the cable lengths) |
| U FO1A /U FO1B LOW | 0 ... 1 V DC |
| per safety output FO1A / FO1B | 1 ... 200 mA |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 100 ms |
| U A | 24 V DC -15% ... +10% ((reverse polarity protected, regulated, residual ripple<5%, PELV)) |
| I UA | max. 10 mA ((with no load on outputs OD, OT, OL, OI)) |
| U B | 24 V DC -15% ... +10% ((reverse polarity protected, regulated, residual ripple<5%, PELV)) |
| I UB | max. 80 mA ((no load on outputs)) |
| Connection type | Plug connector RC18 (X6) |
| Installation orientation | Door hinge DIN right |
| Switching frequency | 0.25 Hz |
| Storage temperature | -25 ... 70 °C |
| in case of use as door stop, and 1 Joule impact energy | 0.1 x 10⁶ |
| Degree of protection | IP65 |
| at U B = 24 V DC | -20 ... 55 °C |
| Housing | Fiber glass reinforced plastic; nickel-plated die-cast zinc; stainless steel |
| Additional feature | Mounting plate |
| Ordernumber | 112596 |
| Масса | 0,835kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
