EUCHNER GmbH + Co. KG MGB2-I-BR-U-XA9S0-LY-R-165702
MGB2-I-BR-U-XA9S0-LY-R-165702
Технические характеристики
| Installation orientation | Door hinge DIN right |
|---|---|
| Current consumption | max. 30 mA |
| Breaking capacity | max. 0.25 W |
| Напряжение питания | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
| Mechanical values and environment - Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (IP20) (in the installed state) |
| at U B = 24 V DC | -25 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Submodulbreite | 1 |
| Software ID (SW ID) | 127040 |
| Additional feature | incl. lens set, ID no. 163284 |
| (rigid/flexible) with cable end sleeve according to DIN 46 228/1 | 0.25 ... 1.5 mm² |
| (rigid/flexible) | 0.25 ... 1.5 mm² ((AWG 23 ... AWG 16)) |
| (rigid/flexible) with cable end sleeve with collar according to DIN 46 228/1 | 0.25 ... 0.75 mm² |
| Напряжение питания | 75 V |
| Напряжение питания | 1.5 kV |
| between FO1A and FO1B | max. 10 ms |
| DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads.) |
| Risk time according to EN 60947-5-3 | max. 50 ms |
| Risk time according to EN 60947-5-3, extension for each additional device | max. 10 ms |
| Safety class | III |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Output type | Semiconductor outputs, p-switching, short circuit-proof |
| Напряжение питания | UB-2 ... UB V DC (Value at a switching current of 50mA without taking into account the cable lengths) |
| Output current | max. 50 mA |
| Electrical connection values - Output type | Semiconductor outputs, p-switching, short circuit-proof |
| U FO1A /U FO1B HIGH | UB-3,5 ... UB V DC (Value at a switching current of 150mA without taking into account the cable lengths) |
| U FO1A /U FO1B LOW | 0 ... 1 V DC |
| per safety output FO1A / FO1B | 1 ... 150 mA |
| Turn-on time | max. 80 ms |
| Test pulse duration | max. 0.3 ms |
| Test pulse interval | min. 100 ms |
| U B | 24 V DC -15% ... +20% ((reverse polarity protected, regulated, residual ripple<5%, PELV)) |
| I UB | max. 80 mA (at 20.4 V including safety inputs FI1A and FI1B, no load on outputs) |
| Ready delay | 5 s |
| Mechanical values and environment - Storage temperature | -30 ... 70 °C |
| in case of use as door stop, and 2 Joule impact energy | 0.1 x 10⁶ |
| in case of use as door stop, and 1 Joule impact energy | 0.2 x 10⁶ |
| Total | 1 x 10⁶ |
| Mechanical values and environment - Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Mechanical values and environment - Degree of protection | IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.) |
| Mechanical values and environment - at U B = 24 V DC | -30 ... 55 °C |
| Housing | Fiber glass reinforced plastic; die-cast zinc, nickel plated |

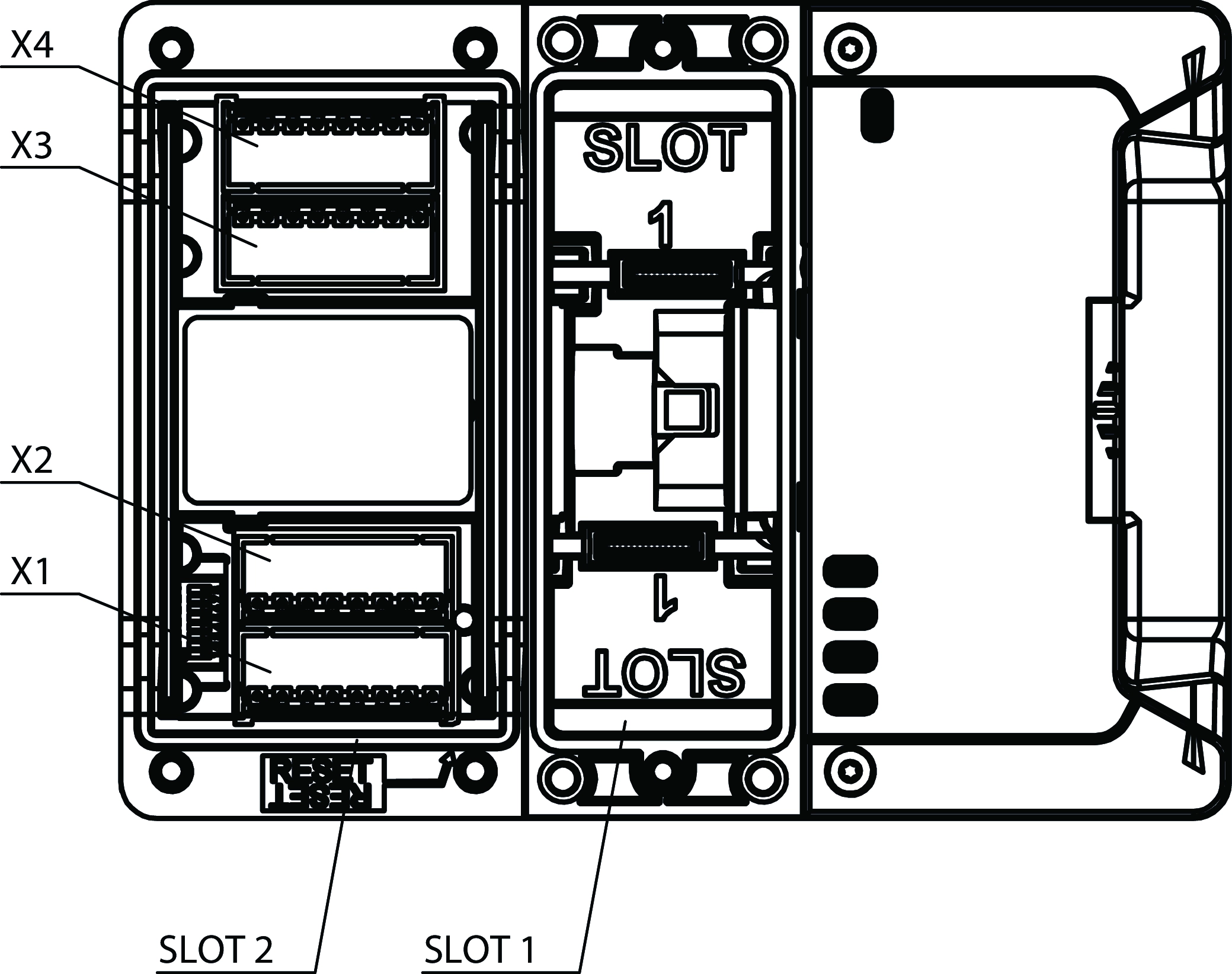

| Slotkonfiguration | 1 |
| Connection type | Cable entries M20x1.5 |
| Рабочая температура | -25 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Degree of contamination according to EN 60664-1 | 3 |
| Рабочая температура | -30 ... 55 °C |
| Mechanical values and environment - Connection type | 2x M4 screws |
| Color | black |
| Ordernumber | 165702 |
| Масса | 1,4kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
