EUCHNER GmbH + Co. KG MGB2-I-MLI-U-YA4A4-JA-R-157989
MGB2-I-MLI-U-YA4A4-JA-R-157989
Технические характеристики
| Installation orientation | Door hinge DIN right |
|---|---|
| Mechanical values and environment - Installation orientation | any |
| Storage temperature | -30 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| at U B = 24 V DC | -30 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Submodulbreite | 1 |
| MLI | 5-pin, M12x1 |
| Напряжение питания | 36 V |
| Напряжение питания | 30 V |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
| Mechanical values and environment - Storage temperature | -30 ... 70 °C |
| Рабочая температура | -30 ... 55 °C |
| Connection type | 2x M4 screws |
| Mechanical values and environment - Connection type | Male plug |
| Number of pins | 5 |
| Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Insertion cycles | 100 |
| Plug housing | Plastic |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Mechanical values and environment - Number of pins | 5 |
| Mechanical values and environment - Degree of protection | IP65 (Only in the screwed tight state with the related mating components.) |
| Mechanical values and environment - Insertion cycles | 100 |
| Mechanical values and environment - Plug housing | Plastic, die-cast zinc, nickel plated |
| Plug lock | die-cast zinc, nickel plated |
| Напряжение питания | 75 V |
| Напряжение питания | 0.5 kV |
| EMC protection requirements | EMC Directive 2014/30/EU |
| Safety class | III |
| Current consumption | max. 75 mA |
| Transponder coding | Unicode |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Switching frequency | 0.25 Hz |
| in case of use as door stop, and 2 Joule impact energy | 0.1 x 10⁶ |
| Total | 1 x 10⁶ |
| in case of use as door stop, and 1 Joule impact energy | 0.2 x 10⁶ |
| Время отклика | See operating instructions for bus module MBM-... |
| Mechanical values and environment - Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Mechanical values and environment - at U B = 24 V DC | -30 ... 55 °C |
| Housing | Fiber glass reinforced plastic, die-cast zinc, nickel plated |

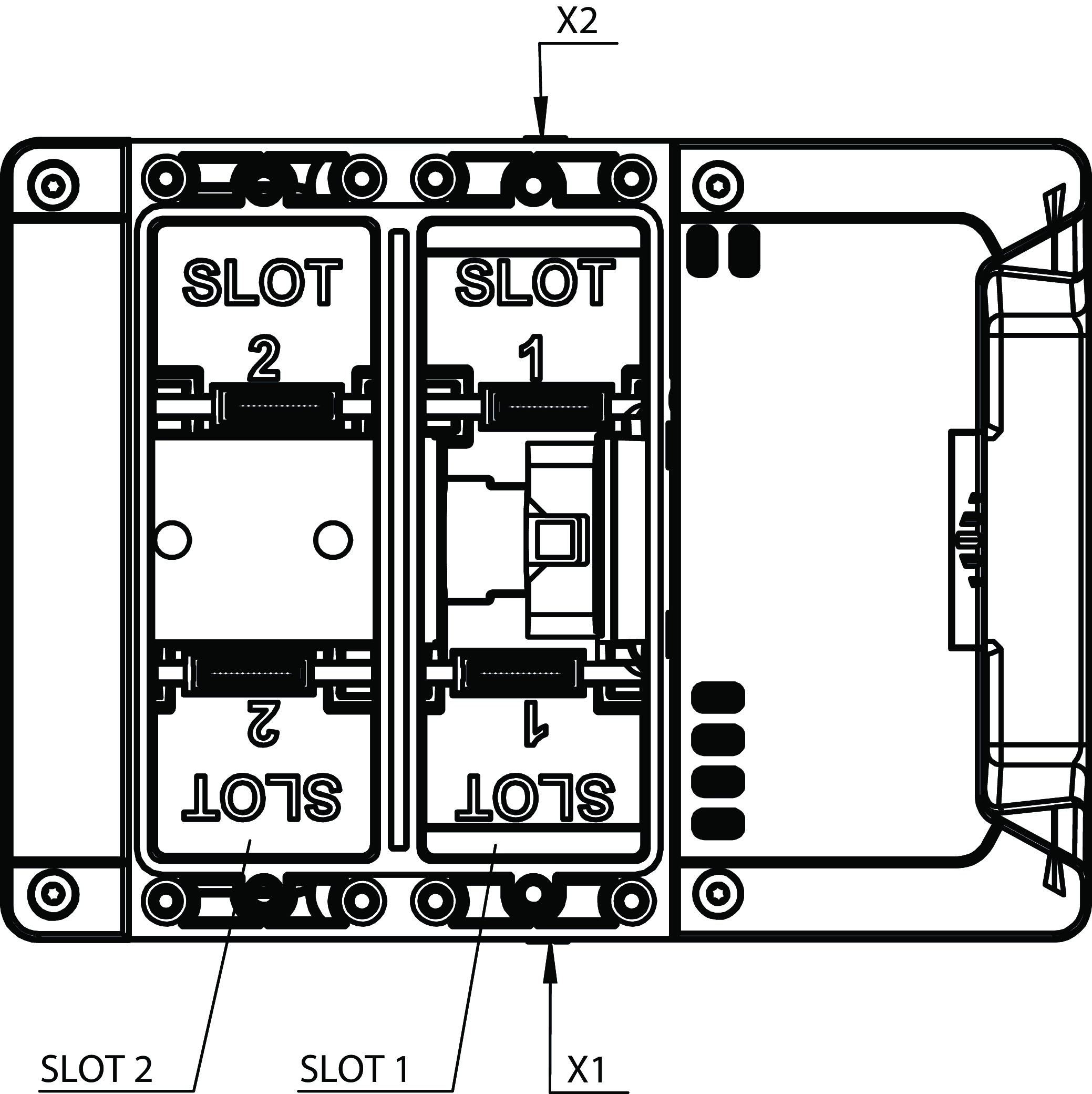

| Slotkonfiguration | 1,1 |
| Electrical connection values - Degree of contamination according to EN 60664-1 | 3 |
| Рабочая температура | -30 ... 55 °C |
| Материал | Fiber glass reinforced plastic |
| Color | black |
| Ordernumber | 157989 |
| Масса | 1,13kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
