EUCHNER GmbH + Co. KG MGB2-L1HB-PN-U-S2-MA-L-173067
MGB2-L1HB-PN-U-S2-MA-L-173067

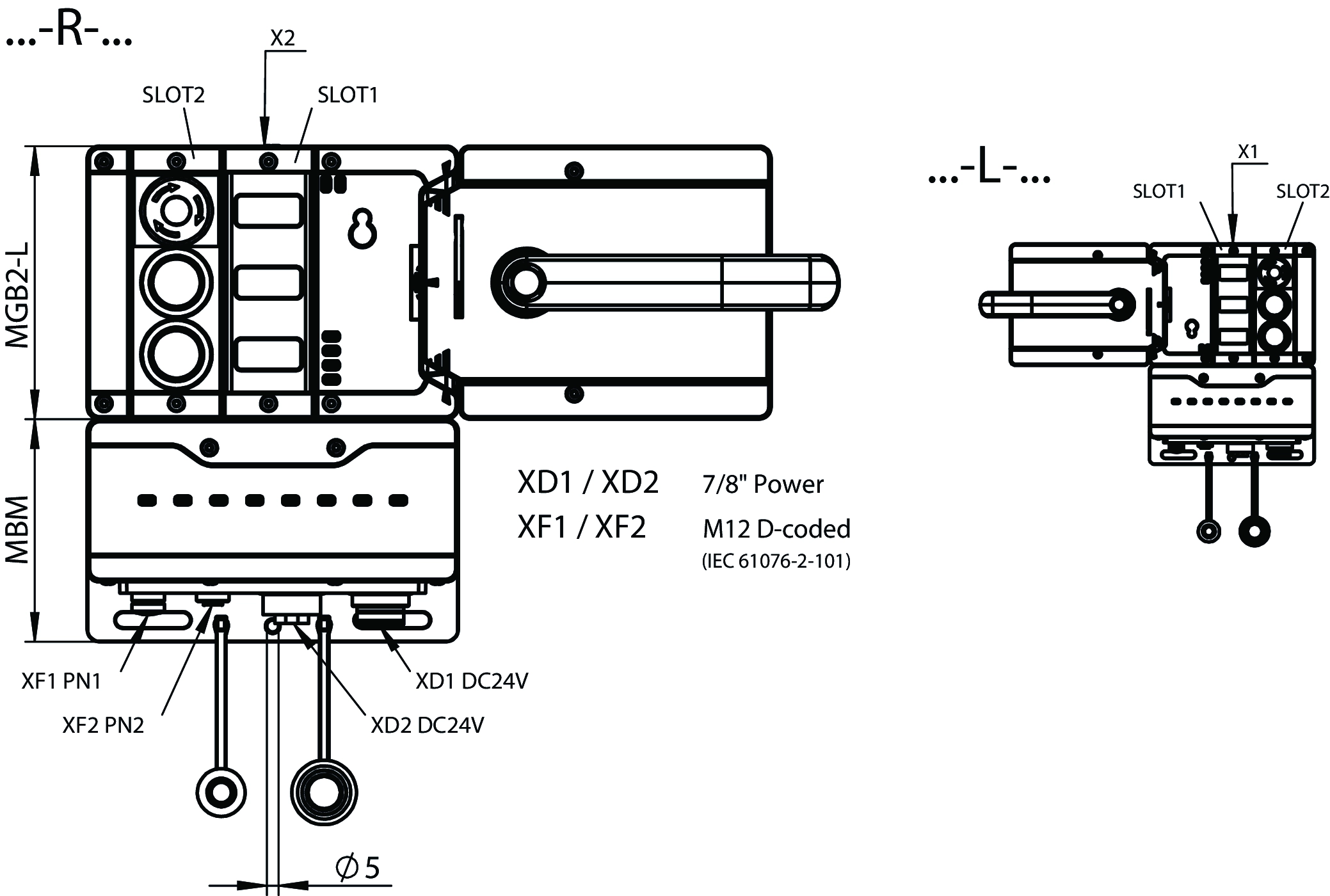

Технические характеристики
| Installation orientation | Door hinge DIN left |
|---|---|
| Mechanical values and environment - Installation orientation | Door hinge DIN left |
| Storage temperature | -30 ... 70 °C |
| Degree of protection | IP65 |
| Рабочая температура | -30 ... 55 °C |
| Housing | Fiber glass reinforced plastic, nickel-plated die-cast zinc, stainless steel |
| Additional feature | with automatic lockout mechanism |
| MLI | 5-pin, M12x1 |
| Напряжение питания | 75 V |
| Напряжение питания | 0.5 kV |
| EMC protection requirements | EMC Directive 2014/30/EU |
| XD1, XD2 | max. 12000 mA (at temperatures<40 °C current consumption max. 16 A possible) |
| Safety class | III |
| Bus module incl. all modules/submodules connected | max. 3200 mA (at temperatures<40 °C current consumption max. 4 A possible) |
| Bus module | max. 200 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| external | min. 1 A slow blow |
| L1 | 24 V DC -15% ... +20% ((reverse polarity protected, residual ripple<5%, PELV)) |
| L2 | 24 V DC -15% ... +20% (The auxiliary voltage is not required for the MGB system) |
| according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12. D-coded, screened (XF2 (The document PROFINET 'Cabling and Interconnection Technology' from the PNO aids in the correct selection of cables.)) |
| Mechanical values and environment - according to IEC 61076-2-101, Profinet I/O cable, at least cat. 5e | M12. D-coded, screened (XF1 (The document PROFINET 'Cabling and Interconnection Technology' from the PNO aids in the correct selection of cables.)) |
| Mechanical values and environment - Storage temperature | -25 ... 70 °C |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Mechanical values and environment - Degree of protection | IP65 (In the closed state when the connection cables, connecting cables and submodules are correctly mounted.) |
| at U B = 24 V DC | -25 ... 55 °C |
| Mechanical values and environment - Housing | Fiber glass reinforced plastic, die-cast zinc, nickel plated |
| Connection type | Screw terminal |
| Mechanical values and environment - Connection type | Male plug |
| Type specification | M12 EN 61076-2-101 / A-coded |
| Number of pins | 5 |
| Insertion cycles | 100 |
| Mechanical values and environment - Number of pins | 5 |
| Mechanical values and environment - Insertion cycles | 100 |
| Bus data protocol | Profinet (IEC 61158 type 10) |
| Safety data protocol | Profisafe (IEC 61784-3-3) |
| Date interface | Ethernet |
| Напряжение питания | 75 V |
| Напряжение питания | 0.5 kV |
| Electrical connection values - EMC protection requirements | EMC Directive 2014/30/EU |
| Electrical connection values - Safety class | III |
| Current consumption | max. 350 mA |
| Transponder coding | Unicode |
| Electrical connection values - Degree of contamination (external, according to EN 60947-1) | 3 |
| Switching frequency | 0.25 Hz |
| Total | 1 x 10⁶ |
| in case of use as door stop, and 2 Joule impact energy | 0.1 x 10⁶ |
| in case of use as door stop, and 1 Joule impact energy | 0.2 x 10⁶ |
| Время отклика | See operating instructions for bus module MBM-... |
| Mechanical values and environment - Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Mechanical values and environment - at U B = 24 V DC | -30 ... 55 °C |
| Locking force F Zh | 2000 N |
| Guard locking principle | Closed-circuit current principle |
| Slotkonfiguration | 1,1 |
| Материал | Fiber glass reinforced plastic |
| Submodulbreite | 1 |
| Miscellaneous - Additional feature | Incl. label holder, ID no. 156732 |
| Electrical connection values - MLI | 5-pin, M12x1 |
| Напряжение питания | 36 V |
| Напряжение питания | 30 V |
| at 40 °C | 4 A |
| Degree of contamination according to EN 60664-1 | 3 |
| Рабочая температура | -30 ... 55 °C |
| Plug housing | Plastic |
| Mechanical values and environment - Type specification | M12 EN 61076-2-101 / A-coded |
| Mechanical values and environment - Plug housing | Plastic, die-cast zinc, nickel plated |
| Plug lock | die-cast zinc, nickel plated |
| Electrical connection values - Current consumption | max. 32 mA |
| Breaking capacity | max. 0.25 W |
| Напряжение питания | 24 V |
| Switching current | 5 ... 10 mA |
| LED power supply | 24 V DC |
| Electrical connection values - Breaking capacity | max. 0.25 W |
| Напряжение питания | 5 ... 24 V |
| Electrical connection values - Switching current | 1 ... 100 mA |
| Electrical connection values - LED power supply | 24 V DC |
| Время отклика | See operating instructions for bus module MBM-... or interlocking/locking module MGB2-I.-BR-... / MGB2-L.-BR-... |
| Материал | Fiber glass reinforced plastic |
| Miscellaneous - Submodulbreite | 1 |
| Software ID (SW ID) | 9000001 |
| Electrical connection values - Degree of contamination according to EN 60664-1 | 3 |
| Color | black |
| Ordernumber | 173067 |
| Масса | 3,915kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-27-24-05 Safety-related transponder switch with guardlocking |
