EUCHNER GmbH + Co. KG MGBS-P-I-AP-U-R-ZZE-SBB-162926
MGBS-P-I-AP-U-R-ZZE-SBB-162926

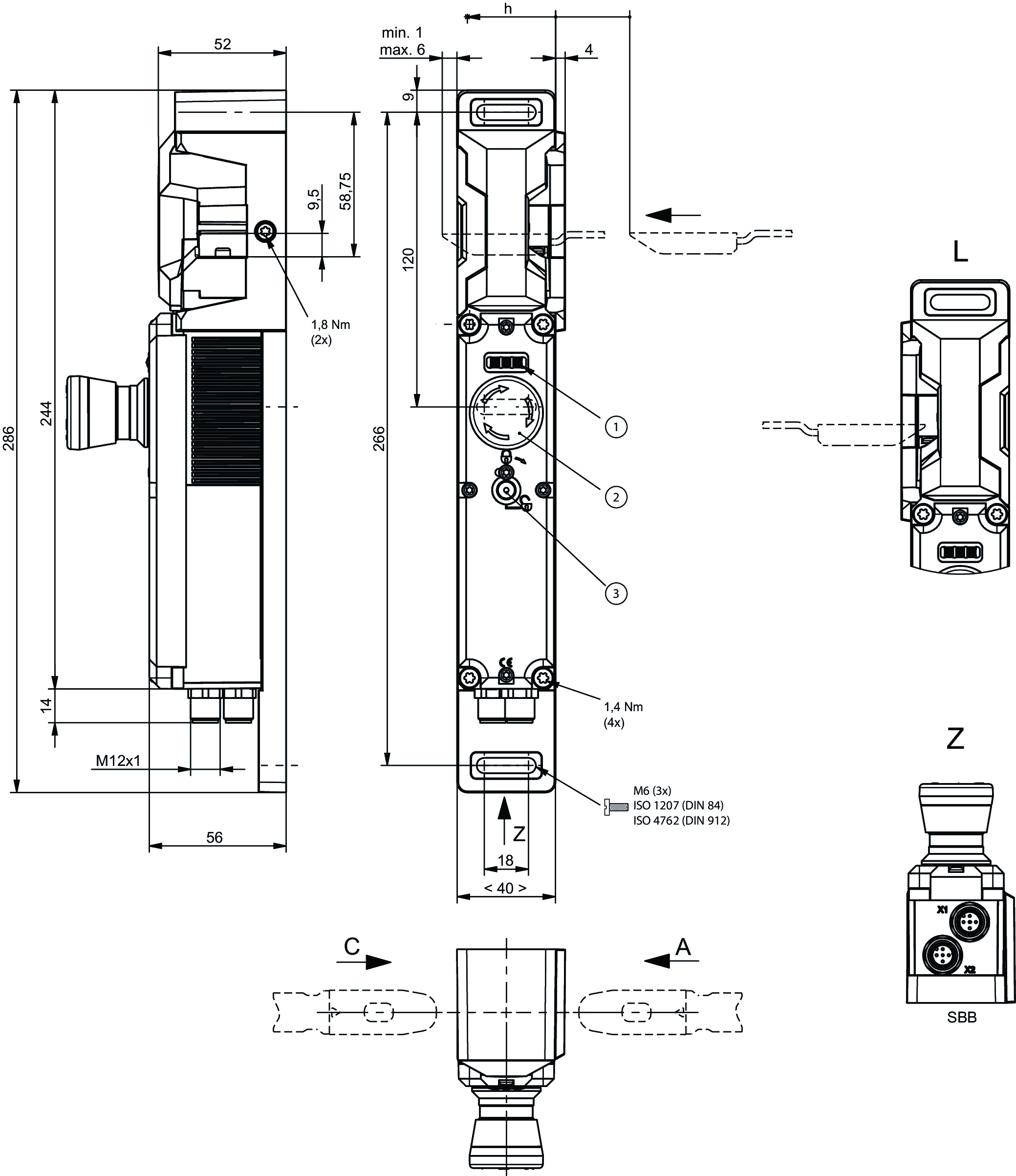

Технические характеристики
| Repeat accuracy R | 10 % |
|---|---|
| Напряжение питания | 0.25 ... 8 A |
| Power consumption | 1 W |
| Напряжение питания | 50 V |
| Напряжение питания | 0.5 kV |
| U UB | 24 V DC -15% ... +15% reverse polarity protected, regulated, residual ripple<5%, PELV |
| EMC protection requirements | Acc. to EN IEC 60947-5-3 |
| DC-13 | 24V 150mA (Caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| according to UL | 24V DC, Class 2 (alternatively, see operating instructions) |
| Safety class | III |
| I UB | 40 mA |
| Test pulse duration | max. 0.3 ms (Applies to a load with C<= 30nF and R<= 20kOhm) |
| Test pulse interval | min. 100 ms |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Breaking capacity | max. 0.25 W |
| Напряжение питания | 5 ... 24 V |
| Switching current | 1 ... 100 mA |
| Output type | 2 semiconductor outputs, p-switching, short circuit-proof |
| HIGH U(FO1A) / U(FO1B) | UB-1.5 ... UB V DC |
| LOW U(FO1A) / U(FO1B) | 0 ... 1 V DC |
| both safety outputs | max. 10 ms Acc. to EN IEC 60947-5-3 |
| Turn-on time | max. 400 ms |
| Off-state current Ir | max. 0.25 mA |
| per safety output FO1A / FO1B | 1 ... 150 mA |
| Anfahrgeschwindigkeit | max. 20 m/min |
| Connection type | 2 plug connector M12, 5-pin |
| Extraction force | 20 N |
| Ready delay | max. 1 s |
| Actuating force | 10 N |
| Installation orientation | Door hinge DIN right |
| Switching frequency | max. 0.5 Hz |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Overtravel | 5 mm |
| Shock and vibration resistance | Acc. to EN IEC 60947-5-3 |
| Degree of protection | IP65 (In the inserted and screwed tight state) |
| at U B = 24 V DC | -20 ... 55 °C |
| Safety switch housing | Reinforced thermoplastic |
| Switch bracket | Die-cast zinc |
| Notices for UL approval | Operation only with UL Class 2 power supply or equivalent measures; see operating instructions |
| Detent mechanism | Snap-in bolt |
| Ordernumber | 162926 |
| Масса | 1,8kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-24-03 Safety-related transponder switch |
