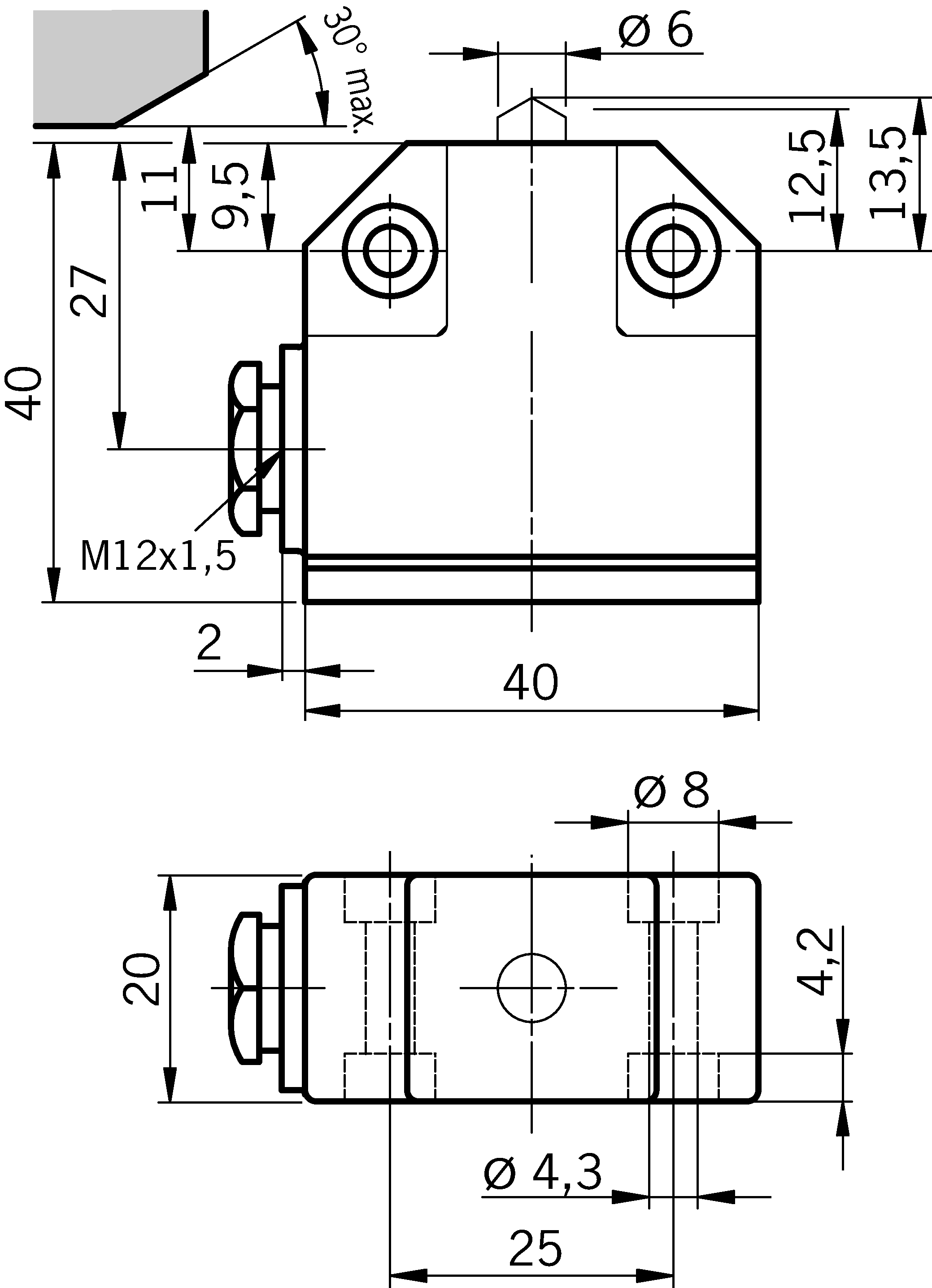

EUCHNER GmbH + Co. KG N01D550-MC2018
N01D550-MC2018
Технические характеристики
| Fuse | max. 6 A gG |
|---|---|
| Connection cross section | 0.14 ... 1 mm² (Soldered connection) |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 2 A 24 V |
| AC-15 | 2 A 230 V |
| min. at DC 24V | 10 mA |
| thermal rated current I th | 6 A |
| Anfahrgeschwindigkeit | 0.01 ... 20 m/min |
| 1 x | M12 x 1.5 with special cable gland |
| Number of door position NC contacts | 1 Changeover contact |
| Number of door position NO contacts | 1 (Changeover contact) |
| Actuating element | Chisel plunger |
| Actuating force | 15 ... 20 N |
| Installation orientation | any |
| Storage temperature | -25 ... 80 °C |
| Mechanical life | 10 x 10⁶ |
| Switching principle | Changeover contact with snap-action function |
| Degree of protection | IP67 |
| Рабочая температура | -5 ... 80 °C |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Ordernumber | 085708 |
| Масса | 0,089kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-06-01 Position switch (Type 1) |
