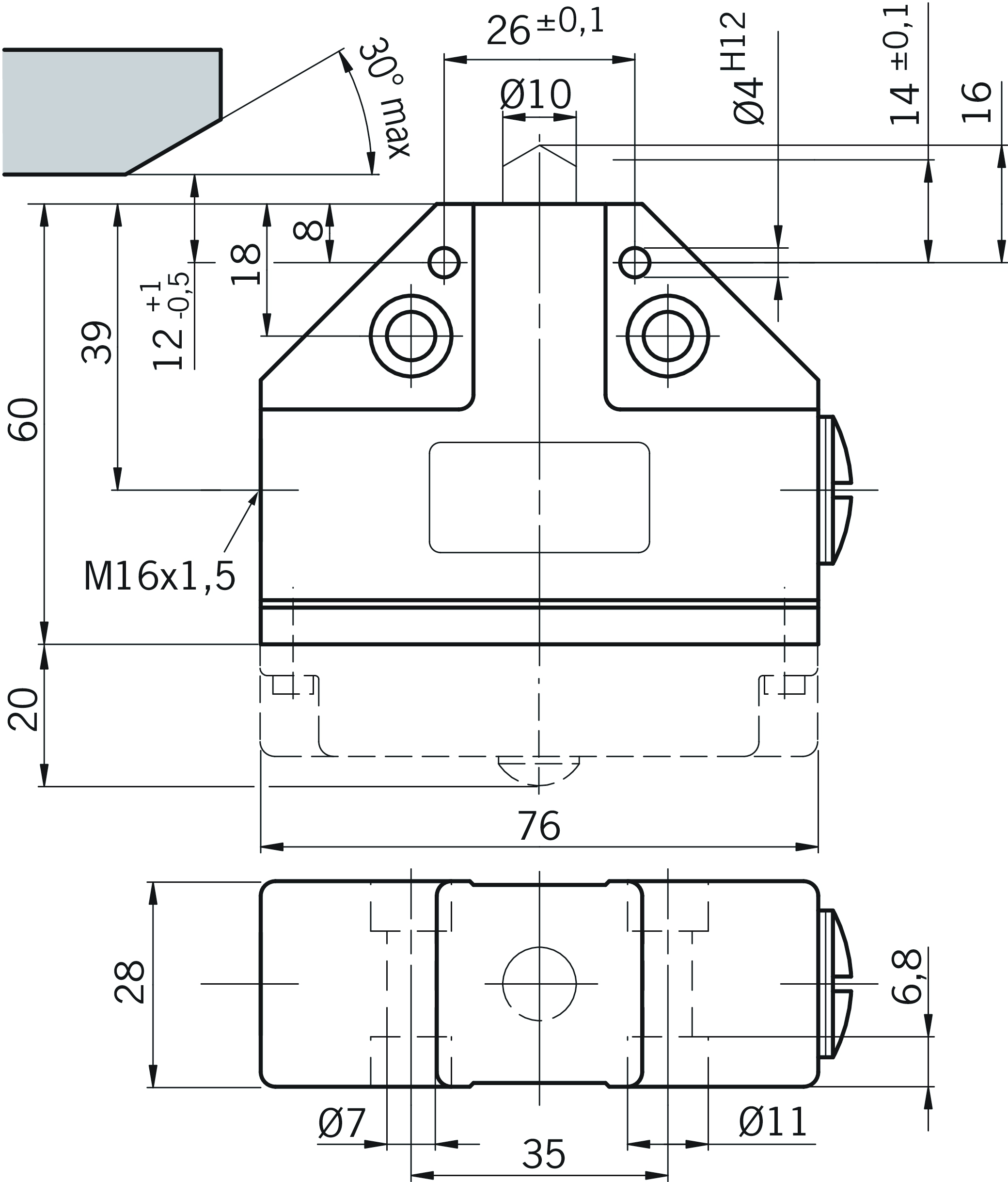

EUCHNER GmbH + Co. KG N1AD502-M
N1AD502-M
Технические характеристики
| Fuse | max. 8 A gG |
|---|---|
| Connection cross section | 0.34 ... 1.5 mm² |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 6 A 24 V |
| AC-12 | 8 A 250 V |
| AC-15 | 6 A 230 V |
| min. at DC 12V | 10 mA |
| thermal rated current I th | 8 A |
| Anfahrgeschwindigkeit | 0.01 ... 40 m/min |
| 2 x | M16 x 1.5 |
| Number NC contacts | 1 |
| Number of switching elements | 1 |
| Number of NO contacts | 1 |
| Design | Housing according to DIN 43693 |
| Actuating element | Chisel plunger |
| Actuating force | min. 20 N |
| Installation orientation | any |
| Storage temperature | -25 ... 80 °C |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | max. 3 ms |
| Switching principle | Snap-action switching contact |
| Operating point accuracy | ± 0,002 (The reproducible operating point accuracy refers to the axial travel of the plunger after the switching element ES 502 E has been run-in with approx. 2,000 operating cycles.) |
| Schließzeit | max. 4 ms |
| Degree of protection | IP67 |
| Рабочая температура | -5 ... 80 °C |
| Contact | Silver alloy, gold flashed |
| Housing | Anodized die-cast alloy |
| Ordernumber | 079265 |
| Масса | 0,226kg |
| Global Trade Item Number (GTIN) | 4047048002012 |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-06-01 Position switch (Type 1) |
