EUCHNER GmbH + Co. KG NG1FO-510-M
NG1FO-510-M
Технические характеристики
| Fuse | max. 6 A gG |
|---|---|
| Connection cross section | 0.34 ... 1.5 mm² |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 6 A 24 V |
| AC-15 | 6 A 230 V |
| AC-12 | 10 A 230 V |
| min. at DC 24V | 10 mA |
| thermal rated current I th | 6 A |
| Anfahrgeschwindigkeit | 0.5 ... 20 m/min |
| 1 x | M20 x 1.5 |

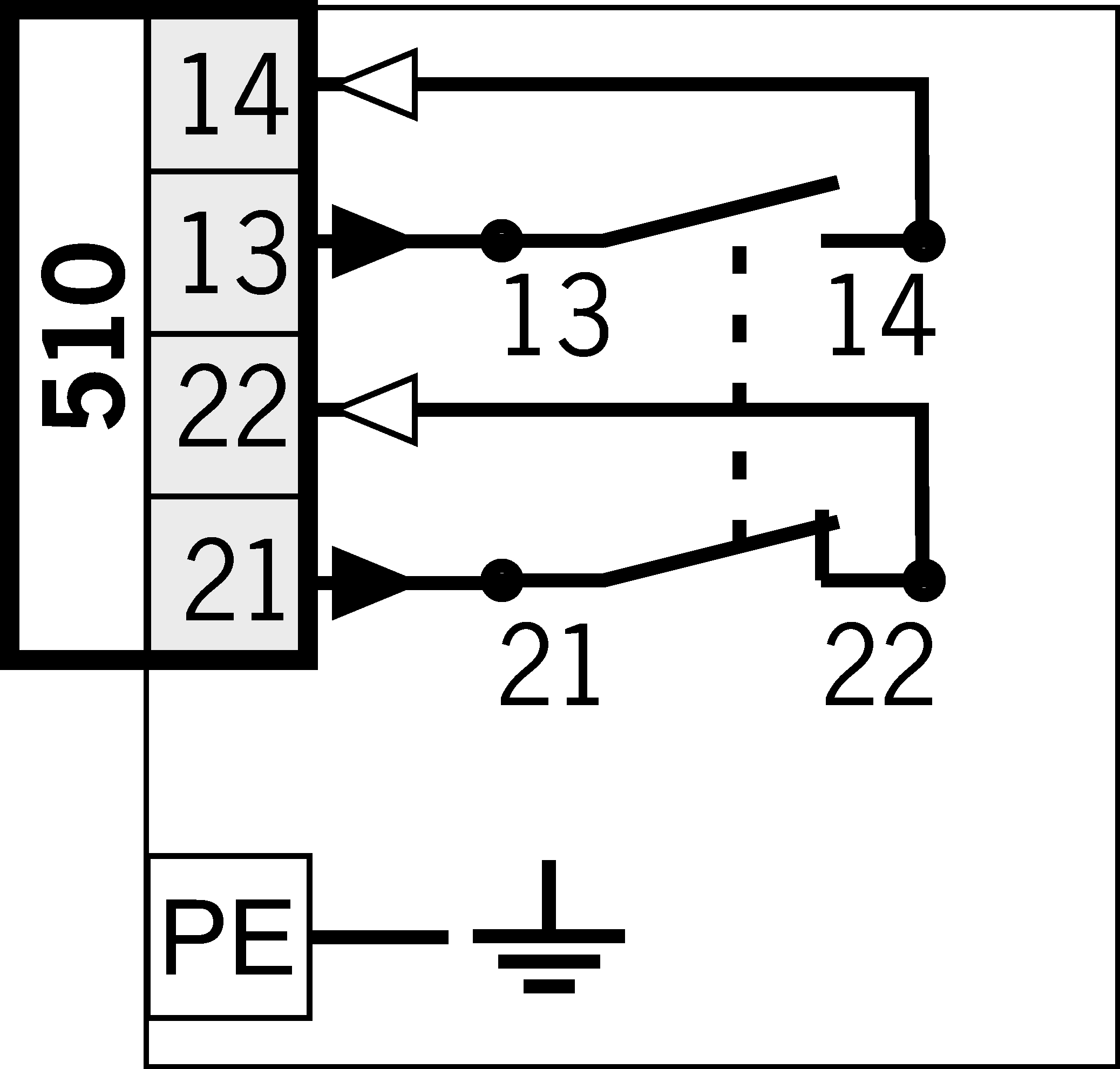

| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Actuating element | Spring actuator |
| Actuating force | min. 15 N |
| Installation orientation | any |
| Storage temperature | -25 ... 80 °C |
| Mechanical life | 30 x 10⁶ |
| Contact bounce time | max. 3 ms |
| Switching principle | Snap-action switching contact |
| Schließzeit | max. 4 ms |
| Degree of protection | IP67 |
| Рабочая температура | -25 ... 80 °C |
| Housing | Anodized die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Ordernumber | 079911 |
| Масса | 0,328kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-06-01 Position switch (Type 1) |
