EUCHNER GmbH + Co. KG STA3A-4121A024MF-EX

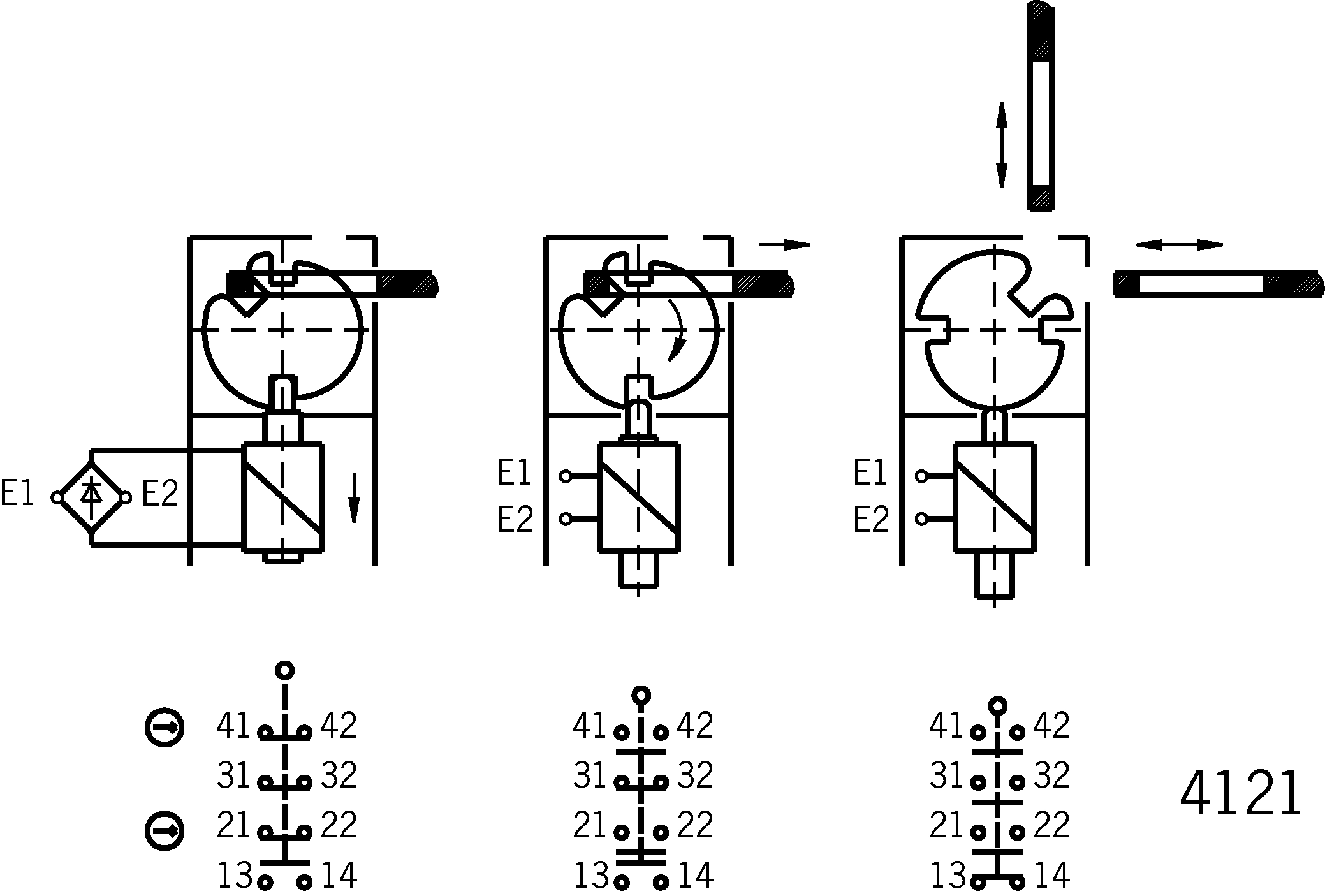

STA3A-4121A024MF-EX
Технические характеристики
| Fuse | max. 4 A gG |
|---|---|
| Power consumption | 8 W |
| Connection cross section | 0.34 ... 1.5 mm² |
| Напряжение питания | 50 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 4 A 24 V |
| AC-15 | 4 A 50 V |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| min. at 10 mA | 12 V |
| min. at 24 V | 1 mA |
| thermal rated current I th | 4 A |
| Anfahrgeschwindigkeit | max. 20 m/min |
| Approach direction | A |
| 3 x | Cable entry M20 x 1.5 |
| Number of door position NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Extraction force | 30 N |
| Actuation frequency | max. 1200 1/h |
| Actuating force | 35 N |
| Installation orientation | any |
| Insertion depth | 24.5 mm |
| Clamping range for cable | 7 ... 13 mm |
| Storage temperature | -25 ... 75 °C |
| Mechanical life | 1 x 10⁶ |
| Retention force | 20 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Рабочая температура | -20 ... 75 °C |
| Housing | Die-cast alloy |
| Contact | Silver alloy, gold flashed |
| Locking force F max | 3000 N |
| Locking force F Zh | 2300 N |
| Guard locking principle | Closed-circuit current principle |
| incl. cable gland | II3G Ex nR IIB T4 Gc X /II3D Ex tc IIIC T110°C Dc X |
| Overtravel | 5 mm |
| Ordernumber | 115586 |
| Масса | 0,937kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-26-03 Safety switch with guard control |
