EUCHNER GmbH + Co. KG TK1-4131CB024SM8
TK1-4131CB024SM8
Технические характеристики
| Fuse | max. 1 A gG |
|---|---|
| Power consumption | 8 W |
| Напряжение питания | 30 V |
| Напряжение питания | 1.5 kV |
| DC-13 | 1 A 24 V |
| AC-15 | 1 A 24 V |
| AC/DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| min. at 10 mA | 12 V |
| min. at 24 V | 1 mA |
| thermal rated current I th | 1 A |
| Approach direction | C |

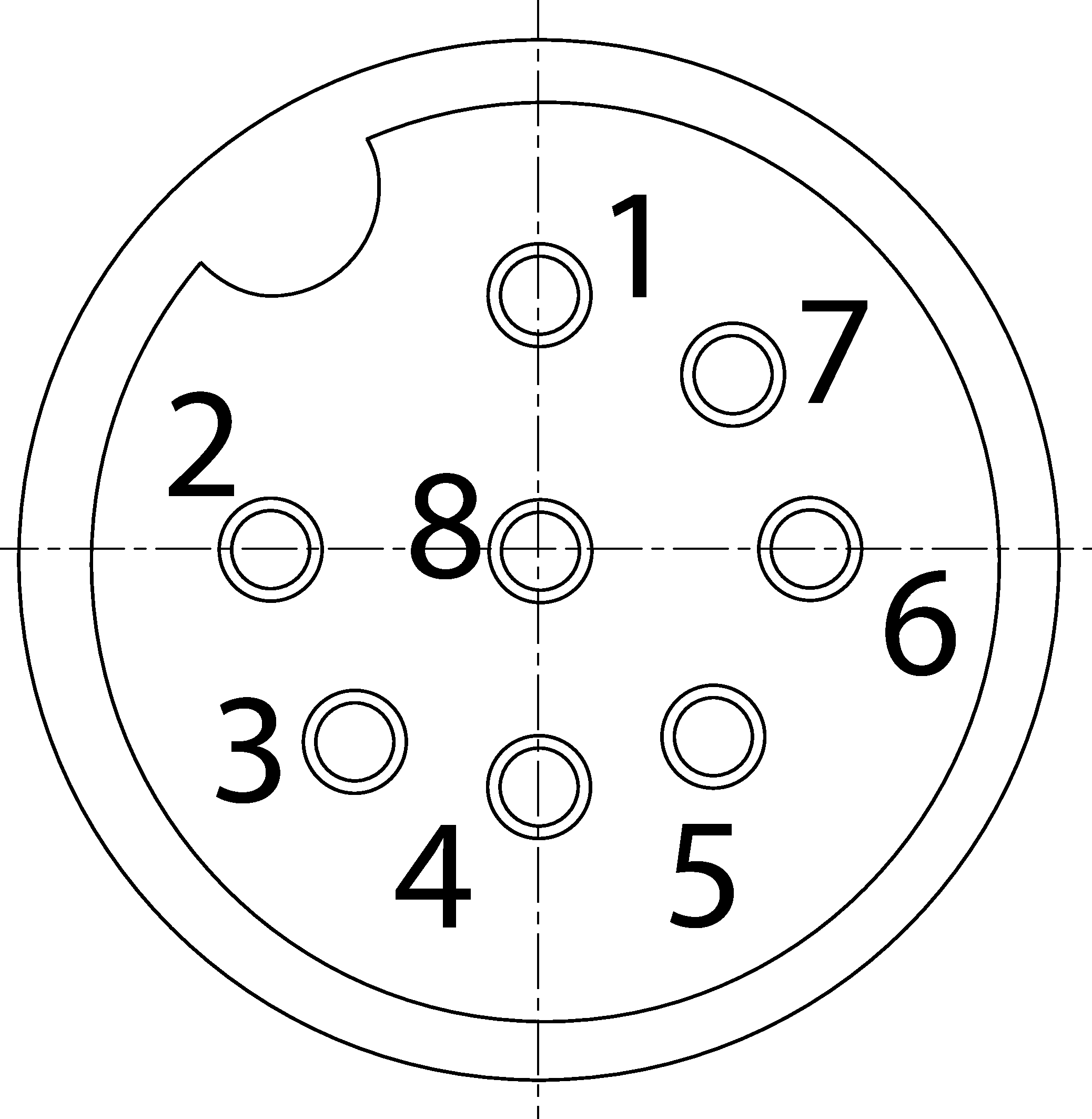

| 1 x | Plug connector M12 (8-pin) |
| Number of guard lock monitoring NO contacts | 1 |
| Number of guard lock monitoring positively driven contacts | 2 |
| Actuation frequency | max. 1200 1/h |
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Рабочая температура | -20 ... 55 °C |
| Housing | Reinforced thermoplastic |
| Contact | Silver alloy, gold flashed |
| Locking force F max | 5000 N |
| Guard locking principle | Closed-circuit current principle |
| Ordernumber | 115310 |
| Масса | 0,623kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-26-03 Safety switch with guard control |
