EUCHNER GmbH + Co. KG TQ1-1211G024-5000
TQ1-1211G024-5000
Технические характеристики
| Fuse | max. 2 A gG |
|---|---|
| Power consumption | 2.7 W |
| Напряжение питания | 300 V |
| Напряжение питания | 2.5 kV |
| DC-13 Monitoring contact | 0.22 A 125 V |
| AC-15 Monitoring contact | 1 A 125 V |
| AC-15 Safety contact | 0.75 A 250 V |
| DC-13 Safety contact | 0.27 A 250 V |
| DC | 24 V -15% ... +10% |
| Solenoid duty cycle | 100 % |
| min. at 10 mA | 12 V |
| min. at 24 V | 1 mA |
| thermal rated current I th | 2.5 A |
| Anfahrgeschwindigkeit | 3 ... 60 m/min |
| Connection type | Connecting cable, 5 m |

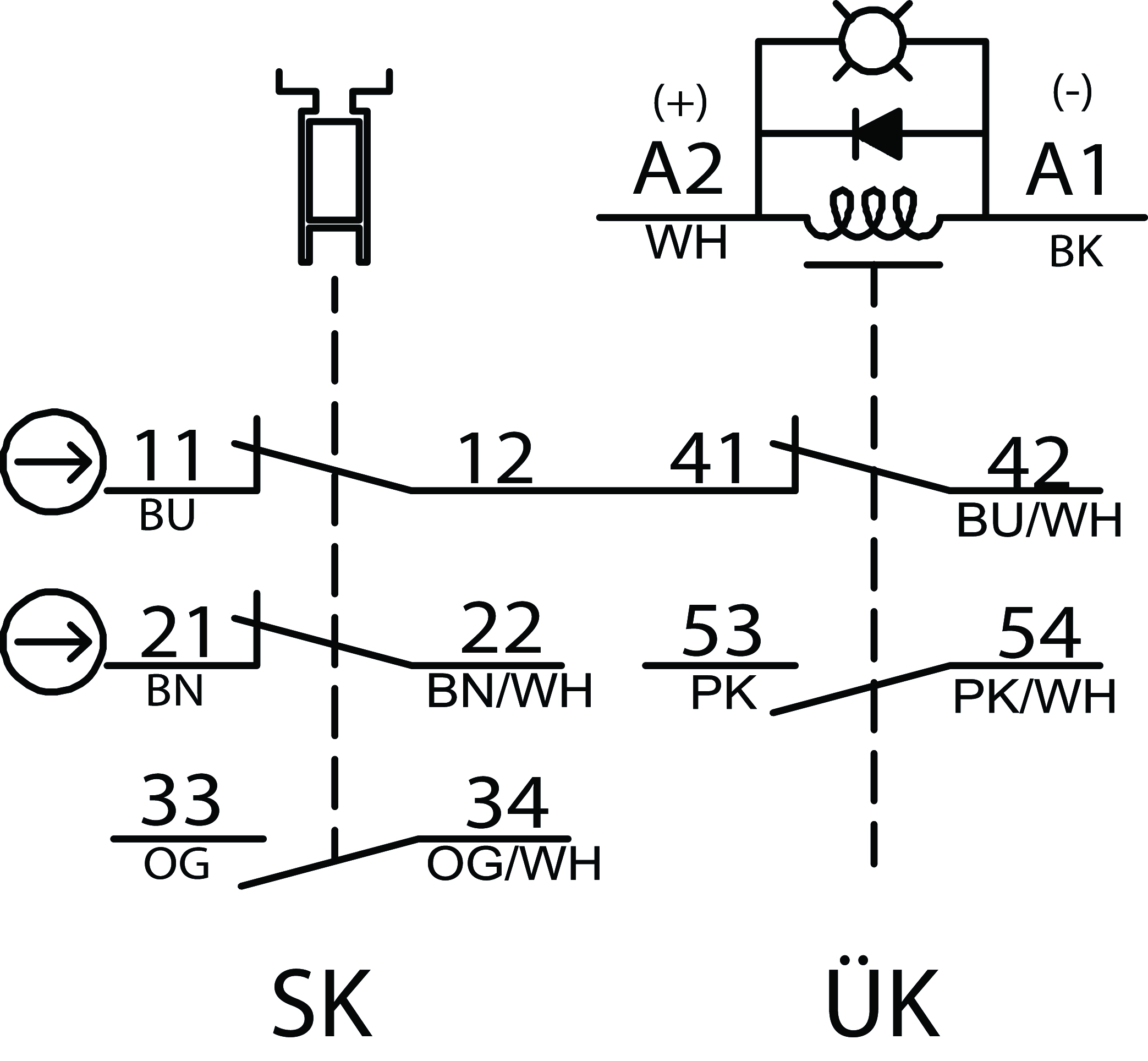

| Number of guard lock monitoring NC contacts | 1 |
| Number of door position NO contacts | 1 |
| Number of guard lock monitoring NO contacts | 1 |
| Number of door position positively driven contacts | 2 |
| Extraction force | 10 N |
| Actuation frequency | max. 900 1/h |
| Actuating force | 5 N |
| Installation orientation | any |
| Insertion depth | 26.3 mm |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |
| Retention force | 1 N |
| Switching principle | Slow-action switching contact |
| Degree of protection | IP67 |
| Рабочая температура | -20 ... 50 °C |
| Contact | Silver alloy, gold flashed |
| Housing | Reinforced thermoplastic |
| Locking force F max | 500 N |
| Guard locking principle | Closed-circuit current principle |
| Horizontal overtravel | 1.3 mm |
| In combination with actuator ACTUATOR-Q-GT, HINGED ACTUATOR-Q-RO, HINGED ACTUATOR-Q-LU, ACTUATOR-Q-WT - Horizontal overtravel | 1.9 mm |
| Ordernumber | 103379 |
| Масса | 0,586kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-27-26-03 Safety switch with guard control |
