EUCHNER GmbH + Co. KG WET1-8W
WET1-8W
Технические характеристики
| Fuse | T16/F25 |
|---|---|
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| AC-15 | 230V 10A |
| DC-13 | 24V 4A |
| Напряжение питания | min. 24 V |
| (at 24V) | min. 50 mA |
| Connection type | Screw terminal |
| Number of monitoring contacts | 8 (8 directions) |
| Actuating directions | 8 (Pushbutton) |
| Storage temperature | -25 ... 70 °C |
| Mechanical life | 1 x 10⁶ |

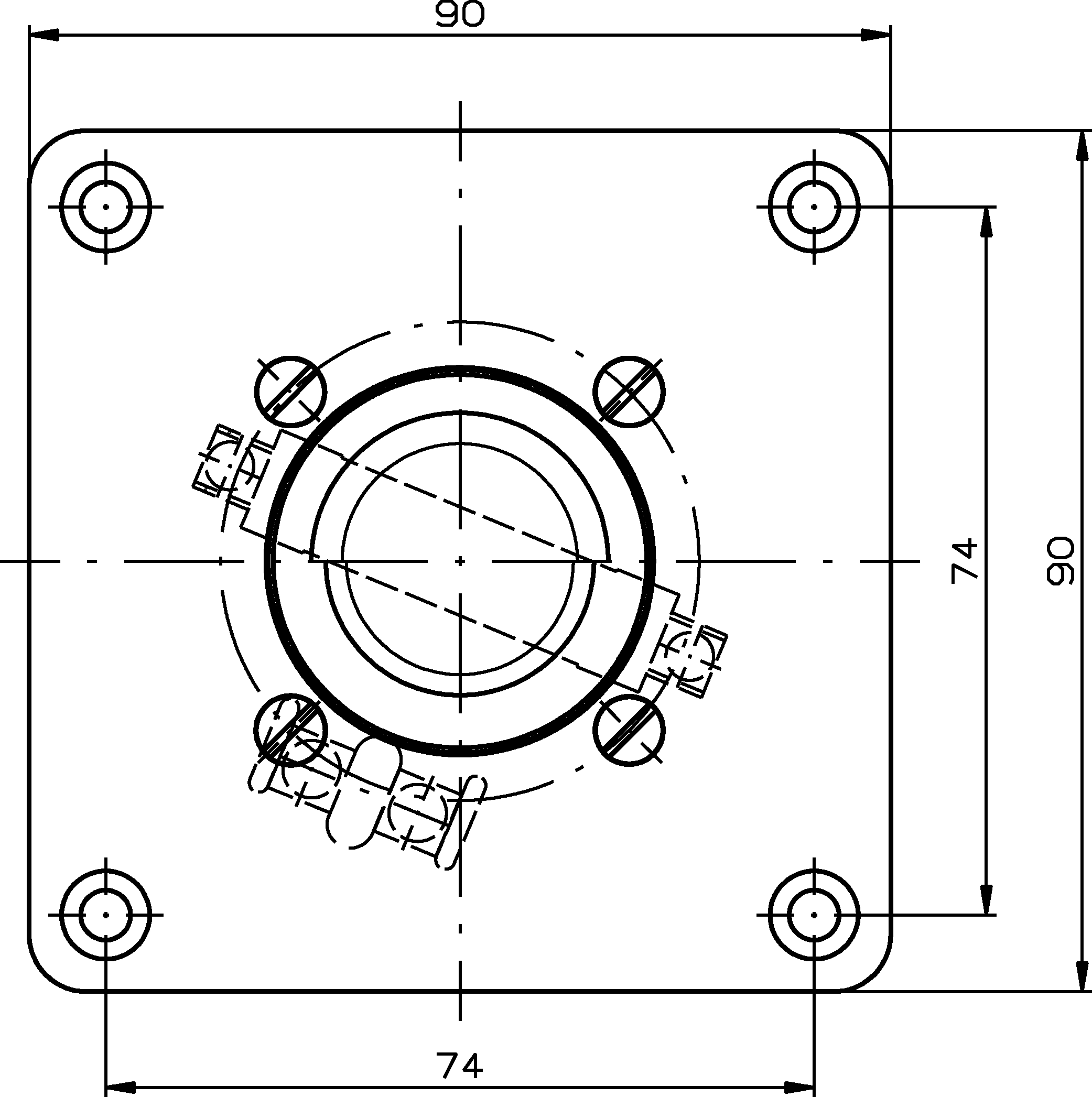

| Mounting cut-out | Ø 42 mm |
| Switching principle | Changeover contact ZA, IEC 947-5-1 (Snap-action contact element, design ES502V1) |
| on the front with bellows | IP65 |
| Рабочая температура | -5 ... 65 °C |
| Contact | Silver alloy |
| Additional feature | Bellows |
| Ordernumber | 018626 |
| Масса | 0,59kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-37-14-04 Control switch, joystick |
