EUCHNER GmbH + Co. KG ZSA1-3
ZSA1-3
Технические характеристики
| Fuse | max. 4 A gG |
|---|---|
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| DC-13 | 3 A 24 V |
| AC-15 | 4 A 230 V |
| min. at 10 mA | 12 V |
| min. at 24 V | 1 mA |

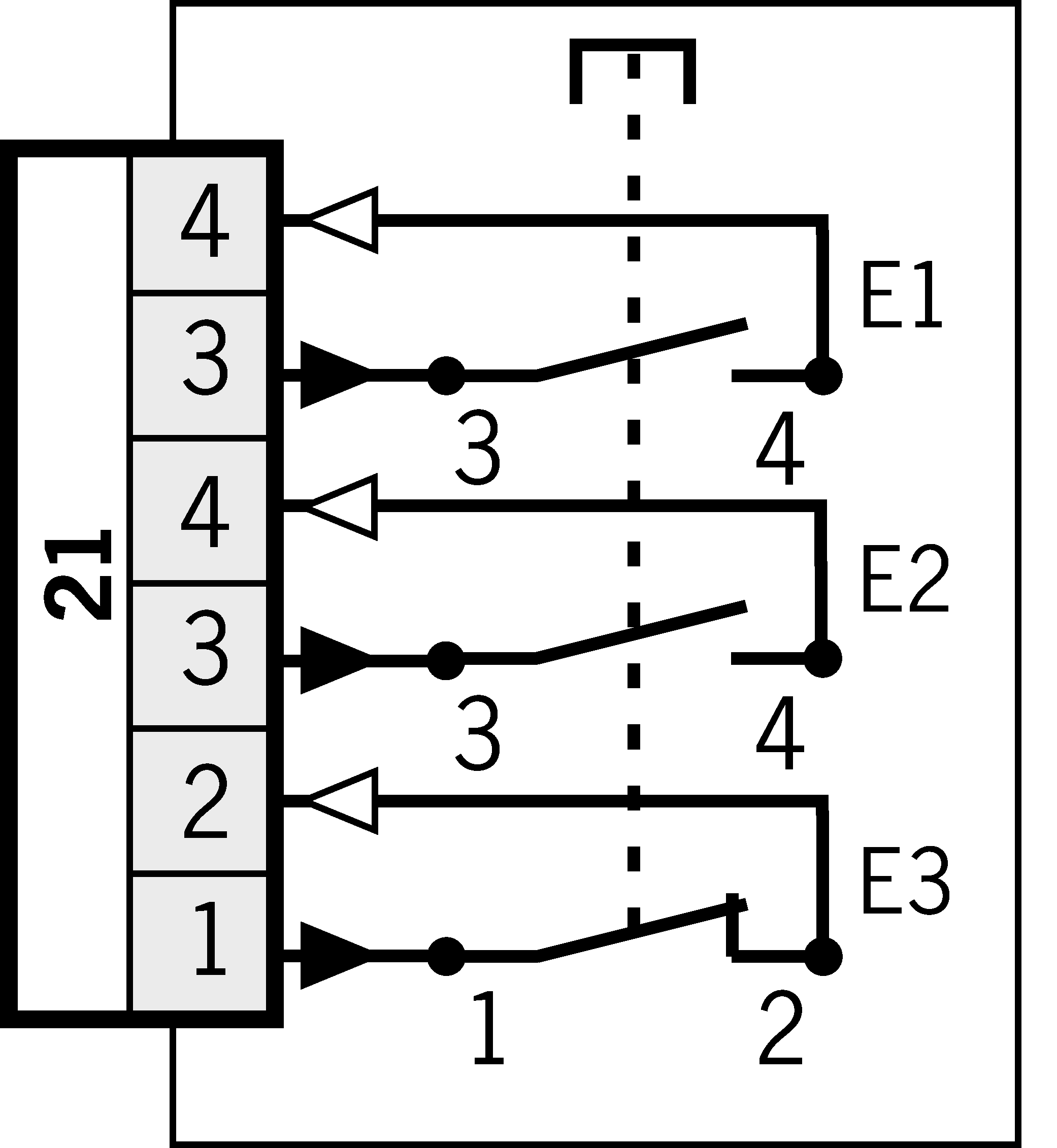

| Switching characteristics | 2-stage enabling switch |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection type | Tab connector 2.8 x 0.8 IEC 760, cable Ø 3.5...8.0 mm |
| Number NC contacts | 1 |
| Number of NO contacts | 2 |
| Storage temperature | -25 ... 70 °C |
| Position 1-2-1 | 0.1 x 10⁶ |
| Switching principle | Slow-action contact element |
| Degree of protection | IP65 |
| Рабочая температура | -5 ... 50 °C |
| Материал | Plastic |
| in compliance with | 60947-5-1 |
| Ordernumber | 070736 |
| Масса | 0,185kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
