EUCHNER GmbH + Co. KG ZSB077029
ZSB077029
Технические характеристики
| Fuse | max. 2 A gG |
|---|---|
| Connecting cable | 8x0.5 mm² + 8x0.14 mm² (4x0.5 mm² screened + 4x0.5 mm² unscreened + 8x0.14 mm² unscreened. Outer screen over everything.) |
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 250 V |
| Напряжение питания | 0.8 kV |
| DC-13 | 2 A 24 V |
| AC-15 | 2 A 24 V |
| min. at 10 mA | min. 12 V |
| min. at 24 V | min. 1 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Electrical connection values - Fuse | max. 0.1 A gG |
| DC-13 Additional elements | 100 mA 24 V |
| AC-15 Additional elements | 400 mA 24 V |

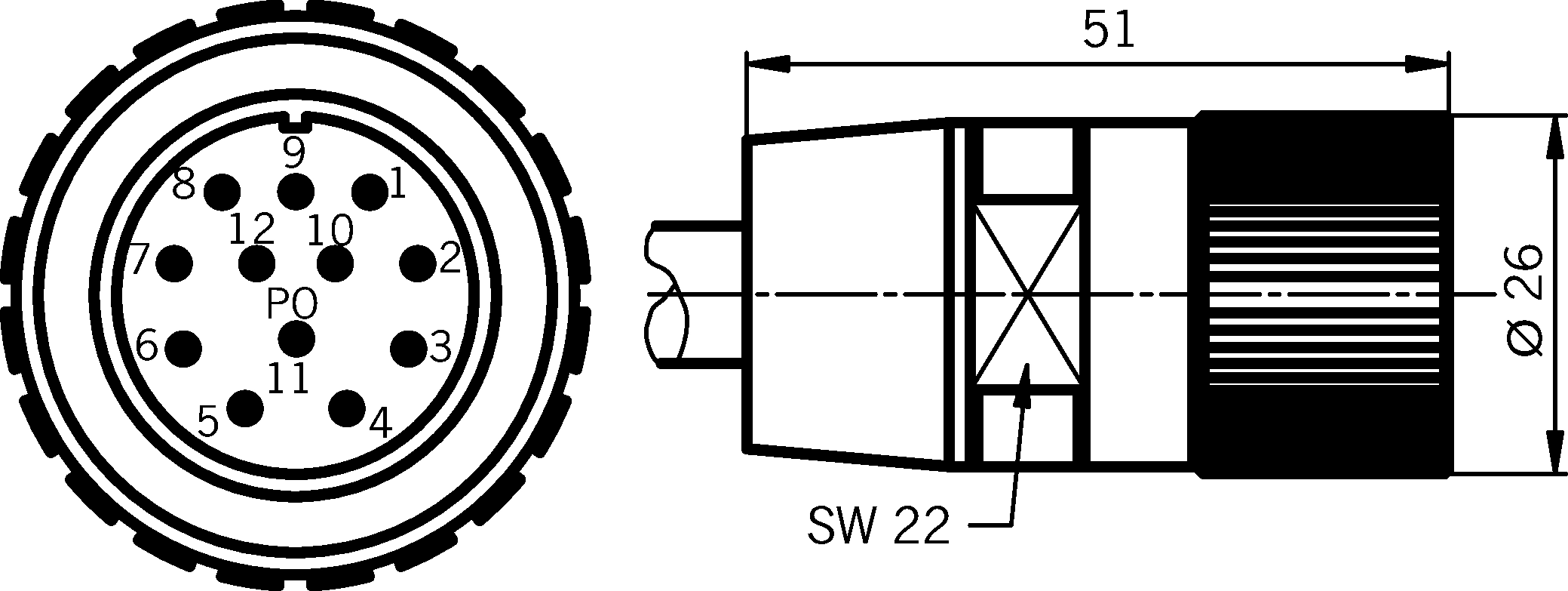

| Connection type | Plug connector number of pins 12 |
| Number of NO contacts | 2 |
| Number of positively driven contacts | 2 |
| Storage temperature | -25 ... 70 °C |
| straight | 5 m |
| Position 1-2-1 | 0.1 x 10⁶ |
| Position 1-2-3-1 | 0.1 x 10⁶ |
| Switching principle | Slow-action contact element |
| Degree of protection | IP65 |
| Рабочая температура | -5 ... 50 °C |
| Cap | Elastomer, low PAH, black |
| Housing | Plastic, yellow |
| Ordernumber | 077029 |
| Масса | 1,759kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
