EUCHNER GmbH + Co. KG ZSB2B7CAS1
ZSB2B7CAS1
Технические характеристики
| ASI operating current | max. 45 mA |
|---|---|
| AS-Interface protocol | ASi-3 |
| ASI data in | D0, D1 = door position (NO contact E1), D2, D3 = door position (NO contact E2) |
| AS-Interface parameters | P0 = plus pushbutton, P1 = minus pushbutton |
| AS-Interface slave type | ID-Code: B, EA-Code: 7 |
| Напряжение питания | 22.5 ... 30 ... 31.6 V |

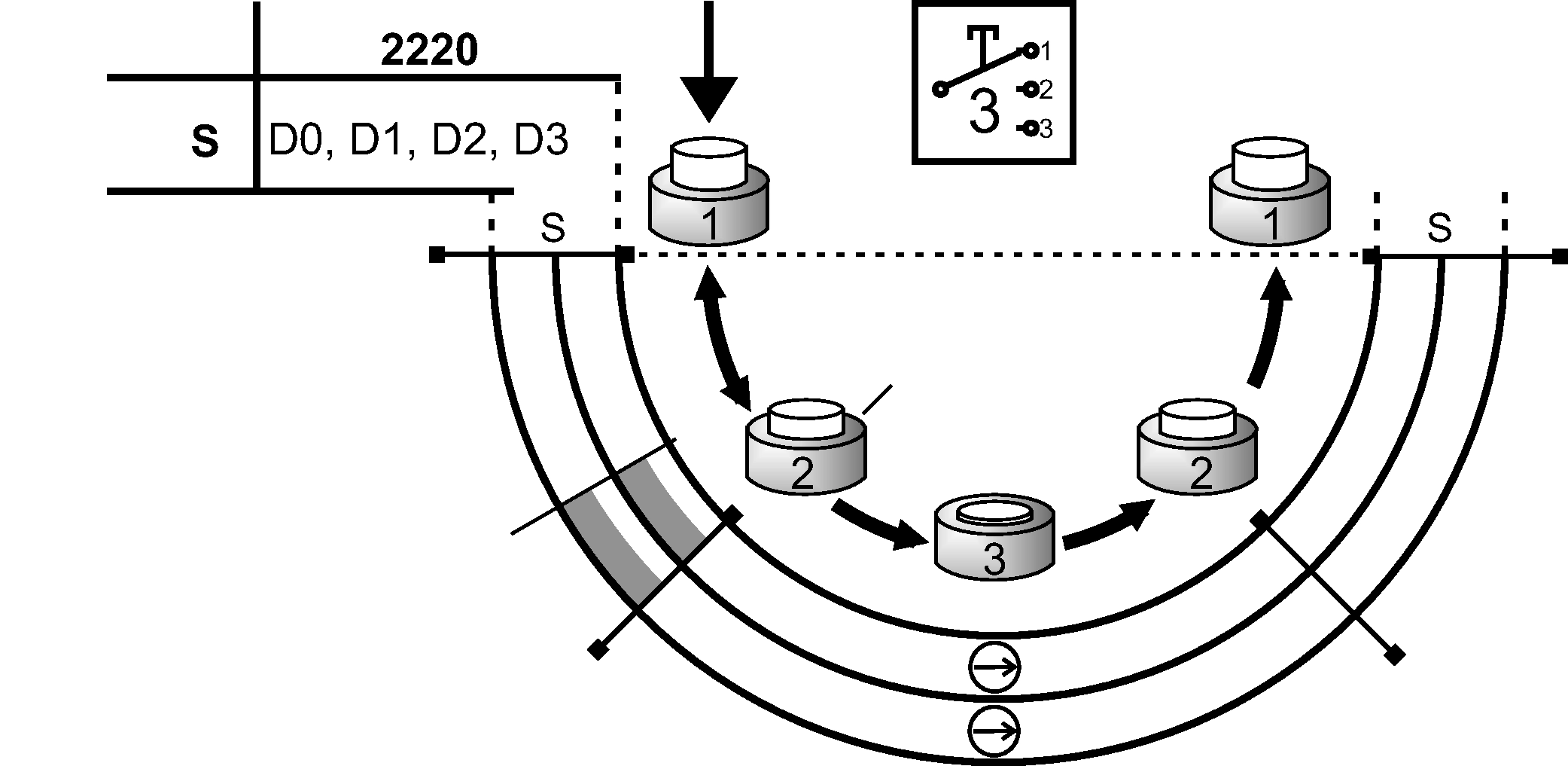

| Switching characteristics | 3-stage enabling switch |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection type | M12 plug connector, 4-pin |
| Number of NO contacts | 2 |
| Storage temperature | -25 ... 70 °C |
| Position 1-2-3-1 | 0.1 x 10⁶ |
| Position 1-2-1 | 0.1 x 10⁶ |
| Switching principle | Slow-action contact element |
| In the inserted and screwed tight state | IP65 |
| Рабочая температура | -5 ... 50 °C |
| Материал | Plastic |
| in compliance with | 60947-5-8 |
| Additional feature | 2 pushbuttons (+ and -) |
| Ordernumber | 096703 |
| Масса | 0,223kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
