EUCHNER GmbH + Co. KG ZSE2-1
ZSE2-1
Технические характеристики
| Fuse | max. 4 A gG |
|---|---|
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 250 V |
| Напряжение питания | 2.5 kV |
| AC-15 | 4 A 230 V |
| DC-13 | 3 A 24 V |
| at 10mA | min. 12 V |
| at 24V | min. 1 mA |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection type | Tab connector 2.8 x 0.8 IEC 760 |
| Number NC contacts | 1 |
| Number of NO contacts | 1 |
| Number of positively driven contacts | 1 |
| Installation orientation | any |
| Storage temperature | -25 ... 70 °C |
| Position 1-2-1 | 0.1 x 10⁶ |
| Position 1-2-3-1 | 0.1 x 10⁶ |

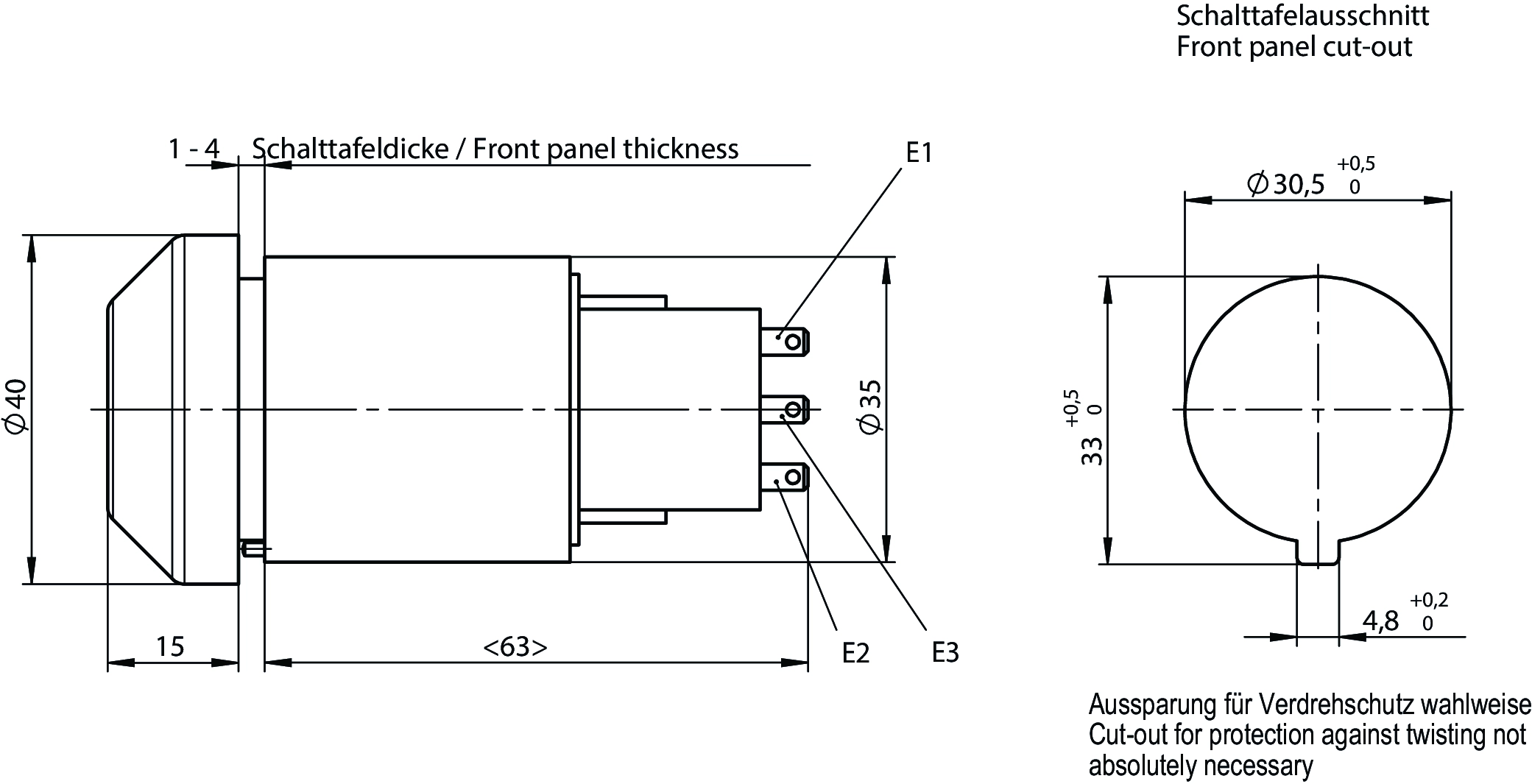

| Mounting cut-out | D30 (EN IEC 60947-5-1) |
| Switching principle | Slow-action contact element |
| Рабочая температура | -5 ... 60 °C |
| Housing | Plastic, color black |
| Cap | Elastomer, low PAH, black |
| in compliance with | 60947-5-8 |
| Ordernumber | 052448 |
| Масса | 0,098kg |
| Customs tariff number | 85365019000 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
