EUCHNER GmbH + Co. KG ZSM2100-169919
ZSM2100-169919
Технические характеристики
| Fuse | max. 2 A gG |
|---|---|
| Connecting cable | 8x0.5 mm² + 8x0.14 mm² (4x0.5 mm² screened + 4x0.5 mm² unscreened + 8x0.14 mm² unscreened. Outer screen over everything.) |
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 50 V |
| Напряжение питания | 0.5 kV |
| DC-13 | 24V 0.01A (For additional indicators) |
| Electrical connection values - DC-13 | 30 V 0.1 A (For enabling switch, caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |

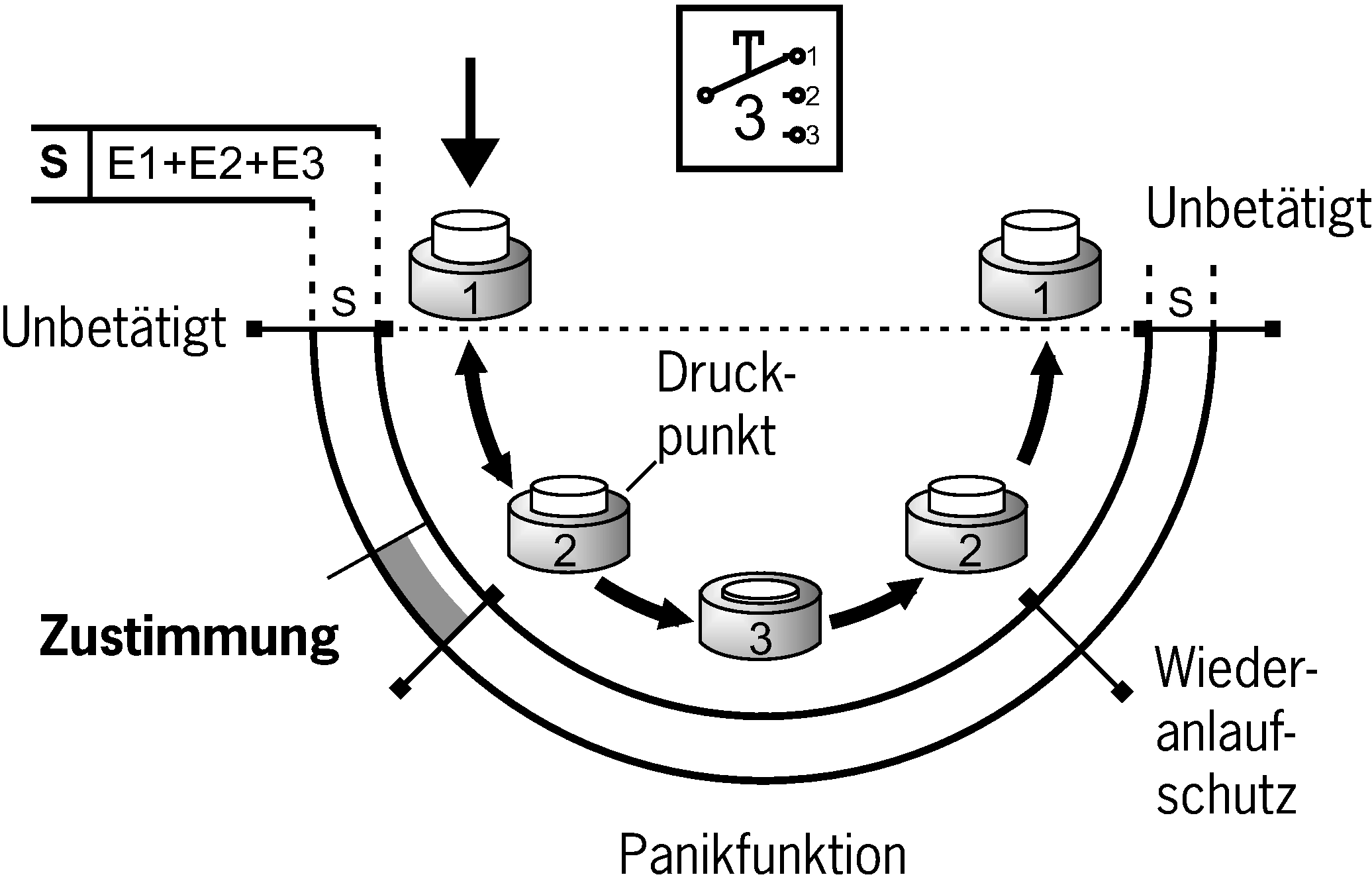

| Switching characteristics | 3-stage enabling switch |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection type | Flying lead with cable end sleeves |
| Number of changeover contacts | 3 (Connection as per block diagram) |
| Storage temperature | -25 ... 70 °C |
| straight | 3 m |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action contact element |
| Degree of protection | IP54 |
| Рабочая температура | -25 ... 60 °C (the enabling switch must not be dropped in low temperature mode, otherwise the degree of protection IP54 cannot be warranted) |
| Материал | PA, CR, TPE (Low PAH) |
| in compliance with | 60947-5-8 |
| Ordernumber | 169919 |
| Масса | 0,93kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
