EUCHNER GmbH + Co. KG ZSM2101-099715
ZSM2101-099715
Технические характеристики
| Fuse | max. 2 A gG |
|---|---|
| Connecting cable | 23x0.14 mm² (screened) |
| rated conditional short-circuit current | 100 A |
| Напряжение питания | 50 V |
| Напряжение питания | 0.5 kV |
| DC-13 | 30 V 0.1 A (For enabling switch, caution: outputs must be protected with a free-wheeling diode in case of inductive loads) |
| Electrical connection values - DC-13 | 24V 0.3A (For additional controls) |
| Switching characteristics | 3-stage enabling switch |
| Degree of contamination (external, according to EN 60947-1) | 3 |
| Connection type | flying lead |

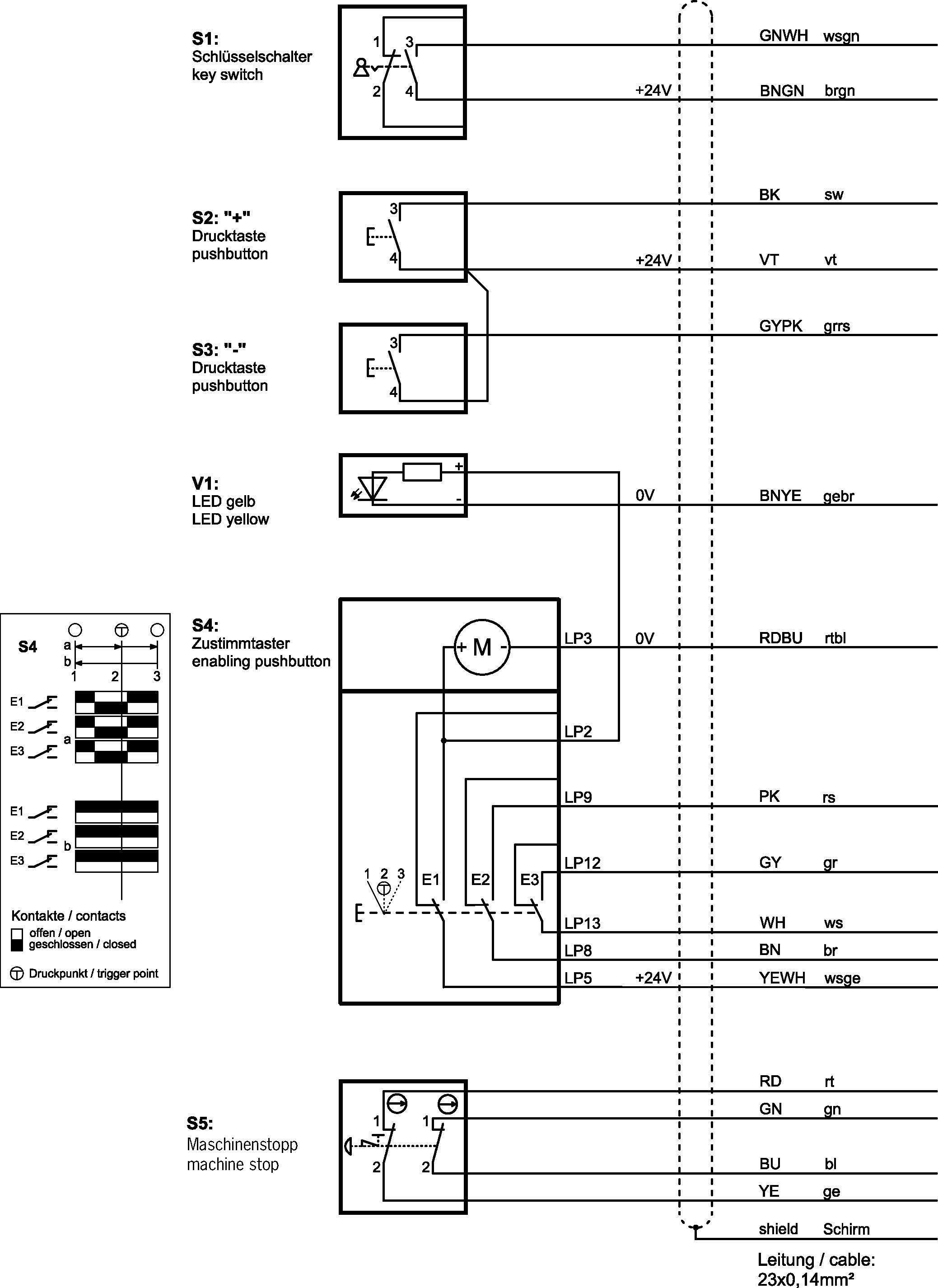

| Number of changeover contacts | 3 (Connection as per block diagram) |
| Storage temperature | -25 ... 70 °C |
| straight | 5 m |
| Mechanical life | 1 x 10⁶ |
| Switching principle | Snap-action contact element |
| Degree of protection | IP54 |
| Рабочая температура | -5 ... 60 °C |
| Материал | PA, CR, TPE (Low PAH) |
| in compliance with | 60947-5-8 |
| Ordernumber | 099715 |
| Масса | 0,949kg |
| Customs tariff number | 85371098 |
| ECLASS 11.0 | 27-37-12-38 Agreement switch |
