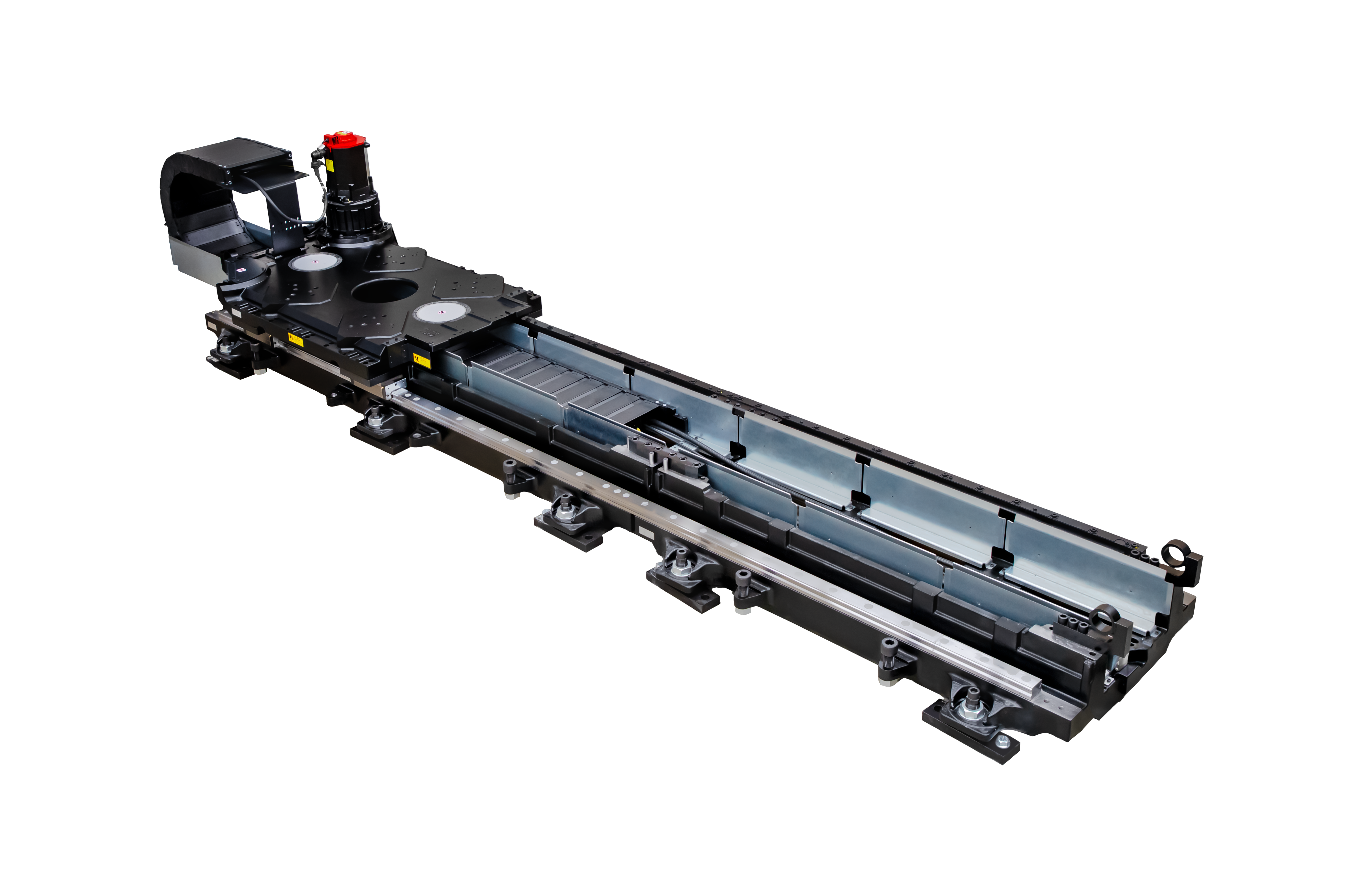

FANUC America Corporation (FANUC CORPORATION regional site) MODULAR-RTU
Modular RTU
Категории:
Технические характеристики
| Axes | 1 |
|---|---|
| Max Payload | 2000 kg |
| Stroke | 1m-20m (0.5m increments) |
| Max Speed (0–1500 kg payload) | 2 m/s |
| Max Speed (1500–2000 kg payload) | 1.5 m/s |
| Pose Repeatability | ±0.02 mm |
| Min Mass | 965 kg |
| Max Mass | 5505 kg |
| Max Riser Height 1 | 650 mm |
| Max Riser Height 2 | 300 mm |
| Mounting Method | Floor |
| Степень защиты (IP) | IP54 |
| Max Payload: | 50 kg |
| Reach: | 2050 mm |
