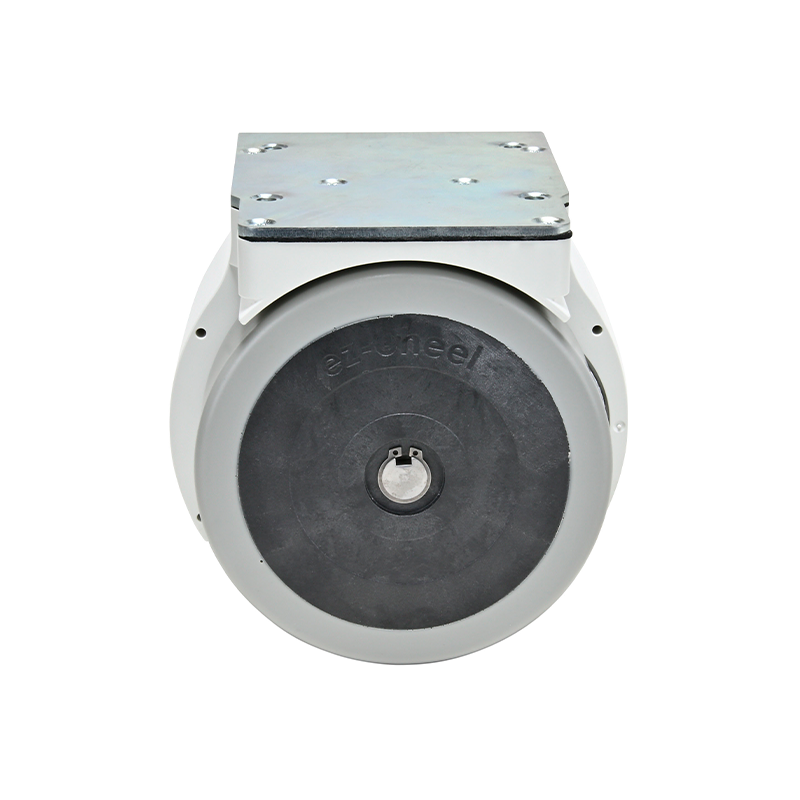

IDEC Corporation EW1A-160MNA
EW1A Series AWD 160: AWD 160 wheel, medical rubber, without battery
Технические характеристики
| Напряжение питания | 24V DC |
|---|---|
| Battery | No Battery |
| Battery electrochemistry | Ni-MH |
| IP index | IP66 |
| Height | 173mm |
| Gearbox | 2-stage Helical Gearbox |
| Type of tyre | PU, 70sh-A, Flat Profile |
| Tyre feature | Antistatic Wheel |
| External Brake | No |
| Wheel Diameter | 158mm |
| Peak torque | 22 Nm |
| Nominal power | 130W (S1) |
| Max vertical load | 50kg (up to 5km/h) |
| Peak pushing effort | 27 daN (750 kg) |
| HS code | 85 01 31 00 99 |
| Motor Speed range | 0-5km/h |
| Application | Catering Trolleys, Transfer Chairs & Beds, Rolling Equipment for Hospitals |
