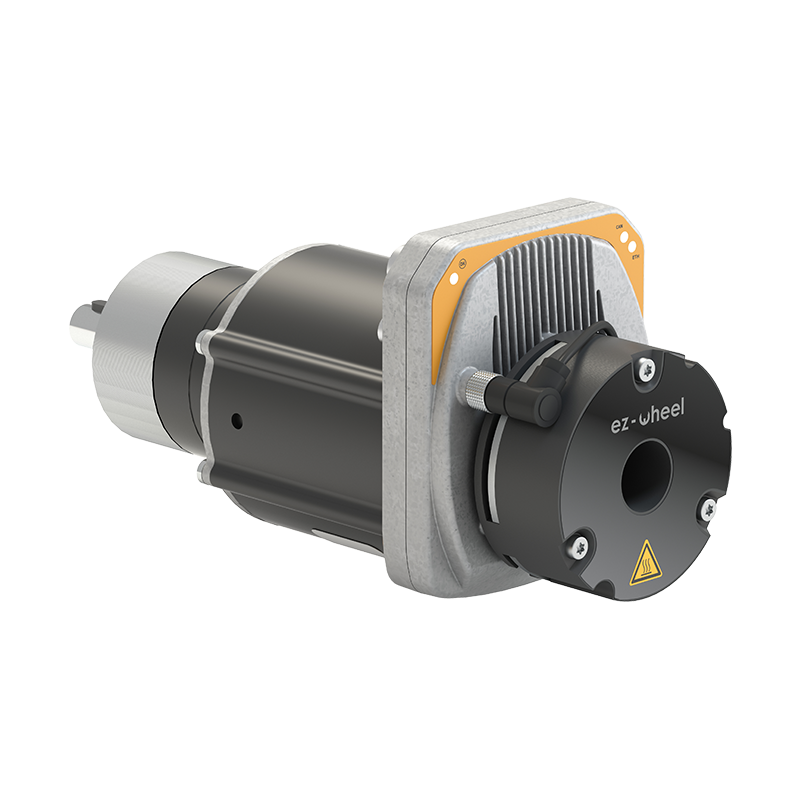

IDEC Corporation EW2A-000N14B
EW2A Series SWD Core: SWD Core drive, with 14:1 gear ratio and brake
Технические характеристики
| Напряжение питания | 24V DC |
|---|---|
| Interface | CANopen Safety |
| Battery | No Battery |
| Battery electrochemistry | No Battery |
| Functional safety motor | Motor disconnection: STO SIL3/Ple Motion control: SLS, SDI, SMS, SIL2/PLd Braking: SBC SIL2/PLd |
| Integrated encoder | Yes (412 ppr, SIL2/PLd) |
| IP index | IP66 (Electronics Housing) |
| Type of tyre | No Tyre |
| Wheel Diameter | No Wheel |
| Height | 114mm |
| Gearbox | 2-stage Planetary Gearbox (Ratio: 14:1) |
| External Brake | Yes |
| Peak torque | 37 Nm |
| Nominal power | 185W (S1) |
| Motor Speed range | 0-130 rpm |
| Application | Robots, Pallet Shuttles, Lifts, Conveyors |
