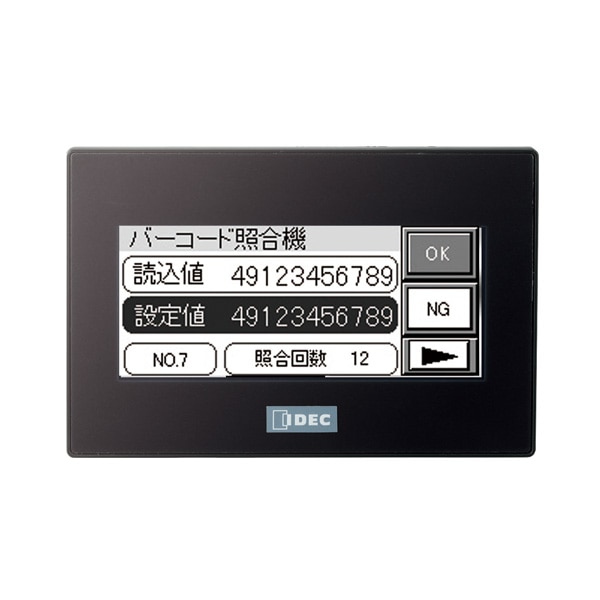

IDEC Corporation FT1A-M14KA-B
FT1A 3.8in PLC+HMI: 3.7 PLC+HMI Mono Sink Output
Технические характеристики
| Brightness | 740 cd/m² |
|---|---|
| Backlight Type | LED |
| Brightness Adjustment | 32 Levels |
| Bezel Color | Black |
| Степень защиты (IP) | IP66F |
| CE marking | Yes |
| Сертификация | Yes |
| Сертификация | Yes |
| Hazardous Location | Class I Div 2 |
| Degree of Protection | NEMA 13 |
| Operating Temperature | 0℃ to 55℃ |
| USB Port | USB Type A |
| Embedded Analog IO | 2 |
| Digital Output Type | Transistor Sink |
| Embedded Digital IO | 14 |
| Embedded Serial Port | 2 |
| Number of Ethernet Port | 1 |
| Number of Embedded Input | 8 |
| Product Type | 14 I/O Points (Monochrome) |
| Analog Input Type | 0-10V DC/4.20mA |
| Analog Output Type | 0-10V DC/4.20mA |
| Programming Language | Ladder/Function Block/Script |
| Communication Protocol | Modus RTU/Modbus TCP |
| Number of Embedded Output | 6 |
| Timer | 200 |
| Data register | 2000 |
| Internal relay | 1024 |
| Maximum Analog I/O Points | 8 |
| Maximum Digital I/O Points | 22 |
| Maximum number of expansion modules | 2 |
| Warranty | 1 Year |
