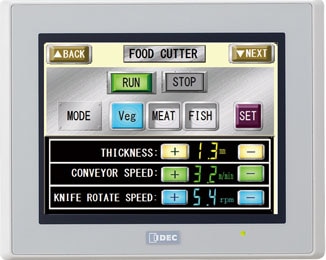

IDEC Corporation HG2G-V5FT22TF-W
HG2G 5.7in High-Performance: HG2G-V5FT22TF-W
Технические характеристики
| Brightness | 800 cd/m² |
|---|---|
| Display Type | TFT Color LCD |
| Backlight Life | Min. 100,000 hours |
| Display Resolution | 640px (W) x 480px (H) |
| Effective Display Area | 115.2mm (W)×86.4mm (H) |
| Body Color | Light Gray |
| Bezel Color | Light Gray |
| CE marking | Yes |
| Сертификация | Yes |
| Напряжение питания | 20.4-28.8V DC |
| Maximum Power Consumption | 18W |
| Degree of Protection | IP66F |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -20℃ to +70℃ |
| USB Port | USB Type A |
| Screen Size | 5.7' |
| Number of Ethernet Port | 1 |
| Mechanical Life | 1,000,000 Operations |
| Operating Force | Up to 3N |
| Maximum number of expansion modules | 2 |
| Warranty | 3 Years |
