JUMO GmbH & Co. KG 401021

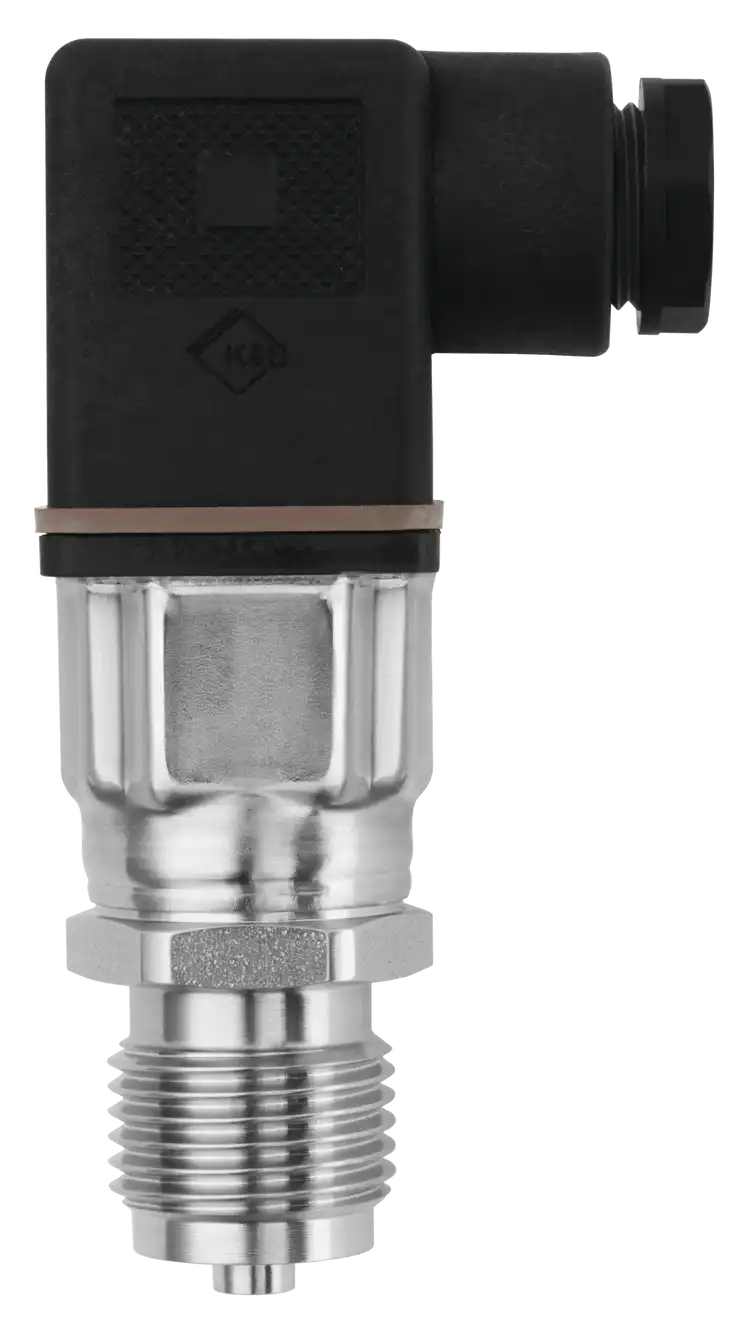

JUMO MIDAS S07 MA
Технические характеристики
| Accuracy (linearity) | 0.2 to 0.3 % |
|---|---|
| Input | -1 to +60 bar relative pressure; 0 to 25 bar absolute pressure |
| Process connection | All screw connections that are standard in the industry |
| Medium temperature | -40 to +125 °C |
| Output | 4 to 20 mA two-wire; DC 0.5 to 10 V three-wire |
| Measuring system | Silicon sensor with stainless steel separating membrane |
| Approvals | DNV, UL/UL(listed), H2ready |
