JUMO GmbH & Co. KG 406012

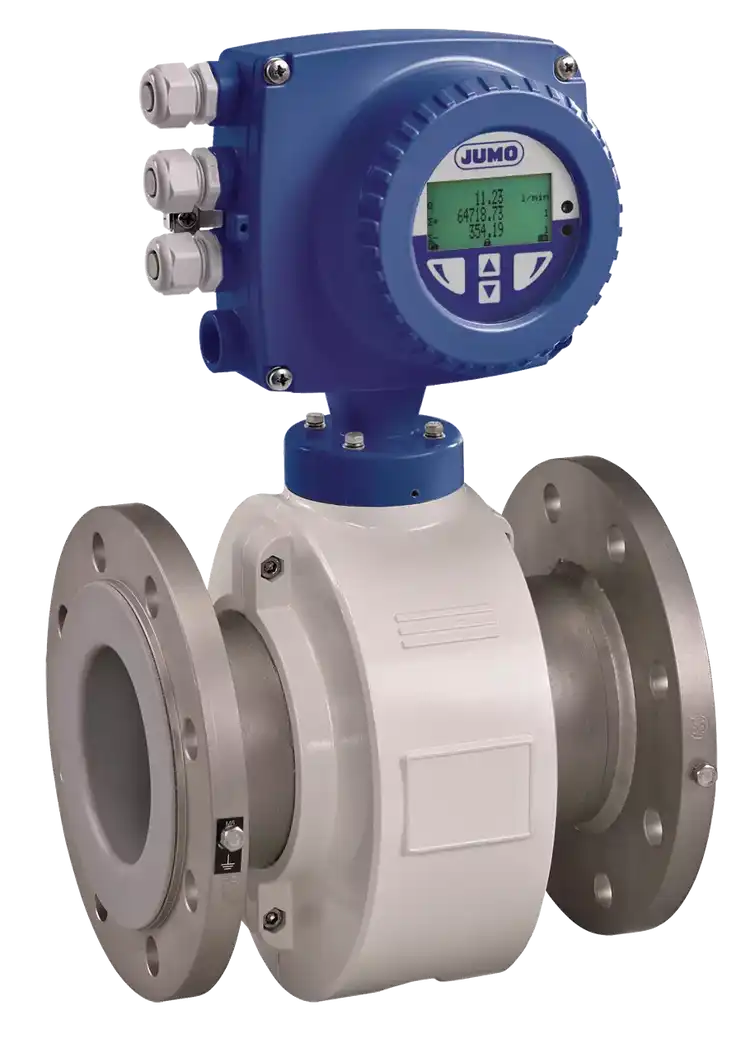

JUMO flowTRANS MAG S01
Технические характеристики
| Материал | PTFE; hard rubber; soft rubber; PFA; ETFE; ceramic carbide (more upon request) |
|---|---|
| Материал | Stainless steel: 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); titanium; tantalum; platinum-iridium; double layer; wolfram carbide |
| Nominal pressure | PN 6 to PN 100 |
| Medium temperature | 180 °C |
| Nominal pipe width | DN 3 to DN 2000 |
| Inputs/outputs | 4 to 20 mA (active/passive) HART® or PROFIBUS PA; impulse frequency output; switching output; digital input |
| Measuring accuracy | 0.3 % (optional: 0.2 %) of the measured value |
| Process connection | Flange according to DIN, ASME, JIS |
| Материал | Steel, stainless steel |
| Protection ratings | IP67; IP68 |
| Напряжение питания | AC 100 to 230 V; AC/DC 24 V |
