JUMO GmbH & Co. KG 406015

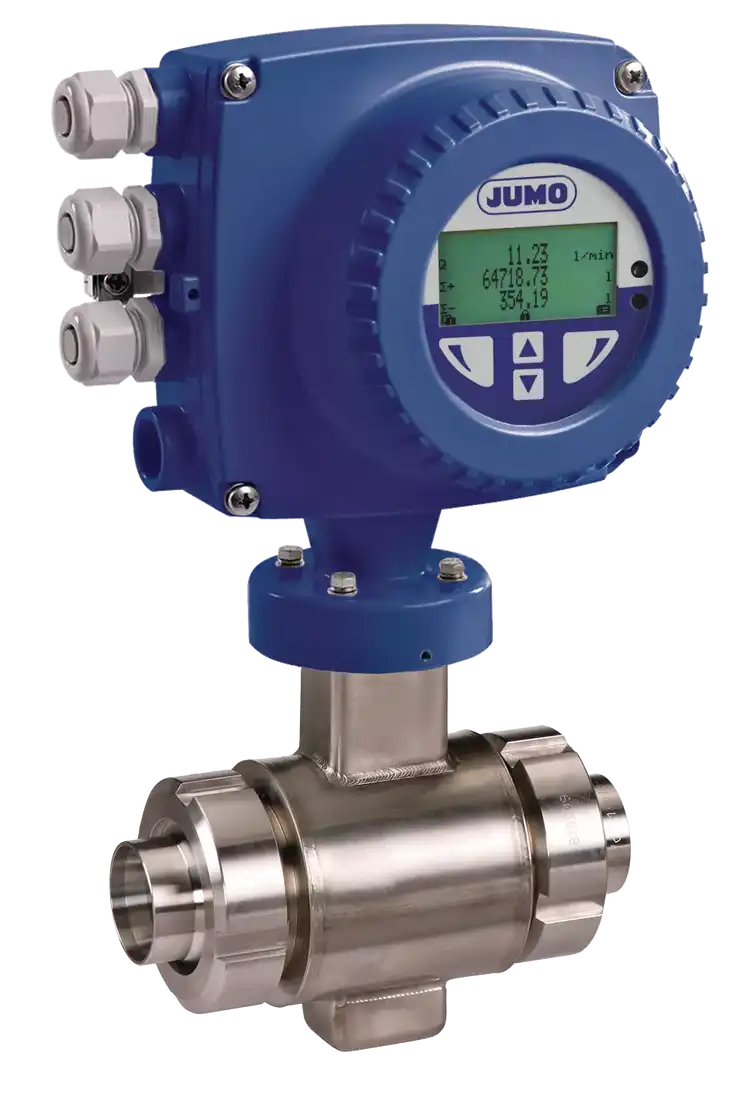

JUMO flowTRANS MAG H01
Технические характеристики
| Материал | PFA (as of DN 3); PEEK (for DN 1 to DN 2) |
|---|---|
| Материал | Stainless steel 1.4539, 1.4571; HASTELLOY® B-3 (2.4600), HASTELLOY® C-4 (2.4610); tantalum; titanium; platinum-iridium (more upon request) |
| Nominal pressure | PN 10 to PN 40 |
| Medium temperature | 180 °C |
| Nominal pipe width | DN 1 to DN 100 |
| Inputs/outputs | 4 to 20 mA (active/passive) HART® or PROFIBUS PA; impulse frequency output; switching output; digital input |
| Measuring accuracy | 0.3 % (optional: 0.2 %) of the measured value |
| Process connection | Screw connection according to DIN 11851; welded socket according to DIN 11850; Tri-Clamp according to DIN 32676; Tri-Clamp according to ASME BPE; connection flange |
| Материал | Stainless steel with seal (EPDM, silicone) and fastening; PVC, POM, and stainless steel (with 1/8" sanitary connection) |
| Protection type | IP67; IP68 |
| Напряжение питания | AC 100 to 230 V; AC/DC 24 V |
| Special feature | FDA compliant |
