JUMO GmbH & Co. KG 406041

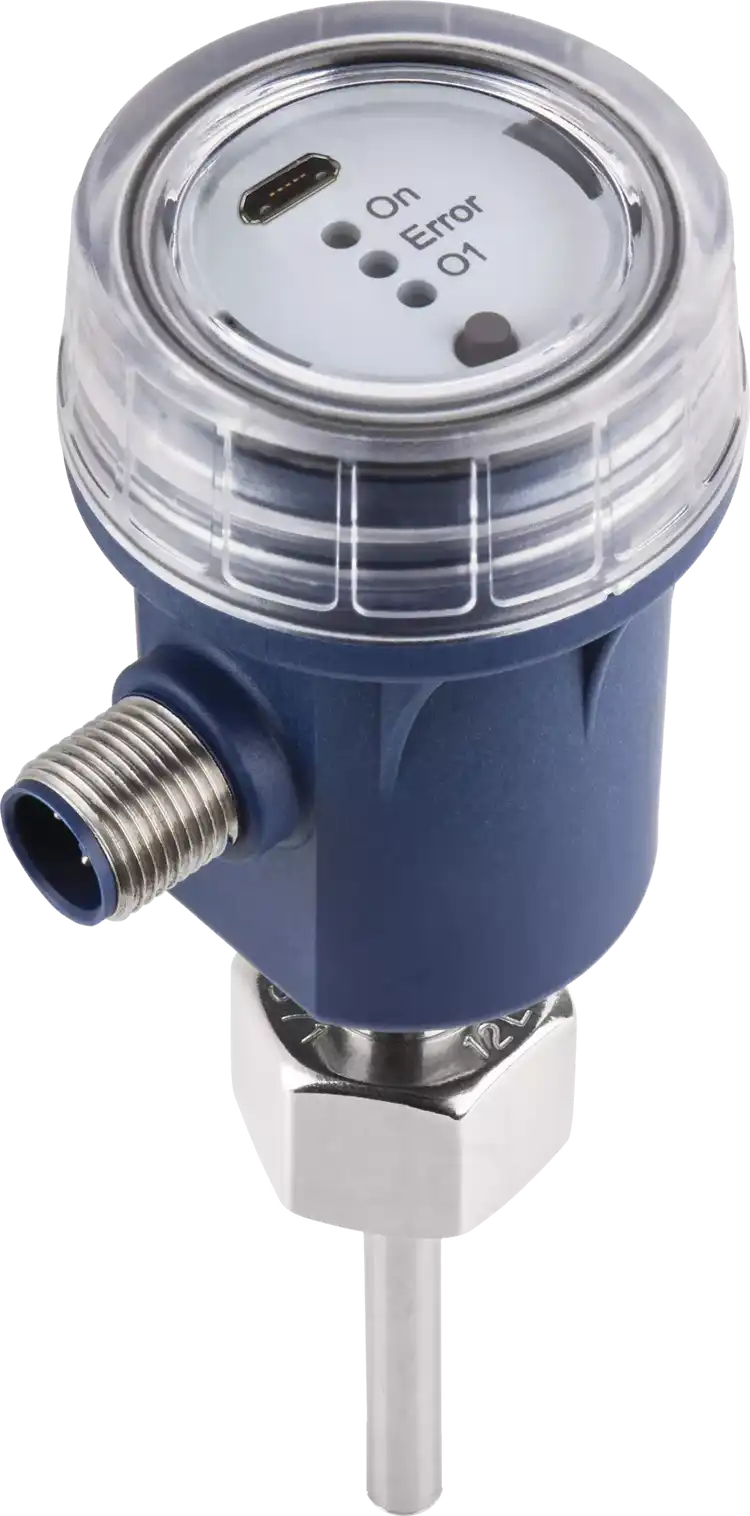

JUMO PINOS L02
Технические характеристики
| Measuring range | 0 to 300 cm/s |
|---|---|
| Nominal pressure | PN 75 |
| Medium temperature | -25 to +90 °C |
| Nominal pipe width | DN 20 to DN 300 (nominal widths larger than DN 50 require on-site calibration) |
| Outputs | 4 to 20 mA and/or PNP switching output |
| Measuring accuracy | Flow: 8 % of the measuring range end value temperature: ± 1 K |
| Parts in contact with medium | Stainless steel 316L, 316Ti (1.4404, 1.4571); sealing material FPM |
| Protection type | IP65; IP67 |
| Напряжение питания | DC 24 V ± 10 % |
| Special feature | Direction-independent mounting (360°); robust design for difficult environmental influences |
| Accessories | Welded socket; screw-in adapter; PVC spigot; PVC T-piece |
