JUMO GmbH & Co. KG 701050

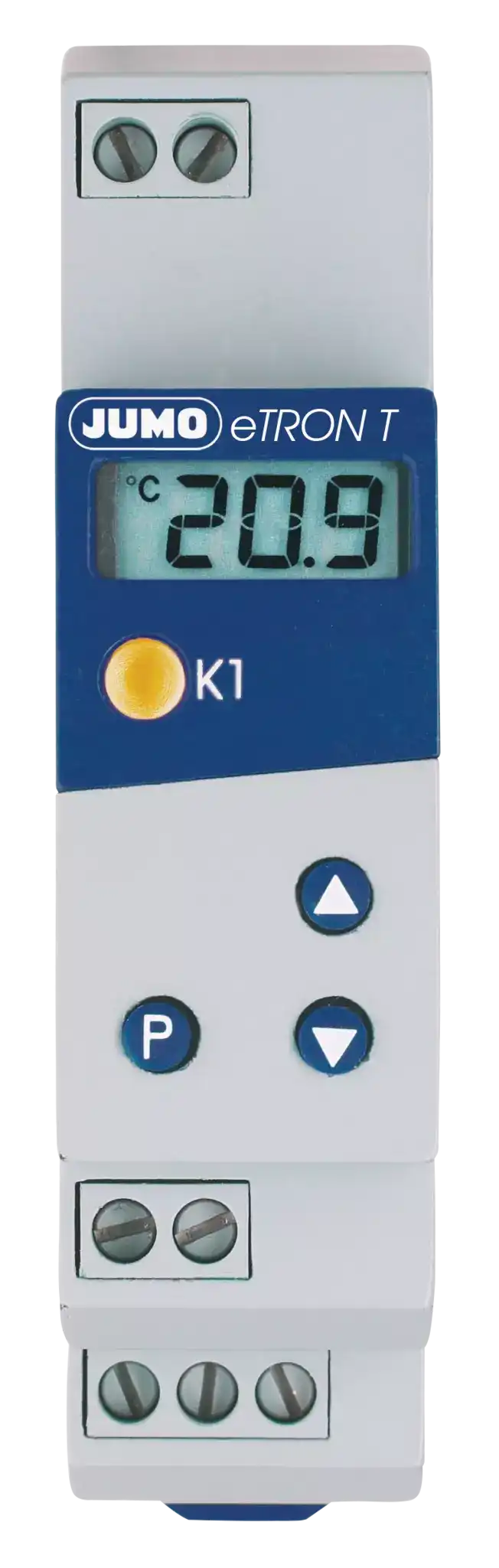

JUMO eTRON T
Технические характеристики
| Measuring inputs | 1 analog input for: Pt100, Pt1000, or KTY2x-6 in two-wire circuit (configurable) or Fe-CuNi (J, L) and NiCr-Ni (K) thermocouples (configurable) or current 0(4) to 20 mA (configurable) or voltage 0 to 10 V |
|---|---|
| Display | Three-digit LCD display with special characters for °C, °F |
| Alarms | Messages in the display: lower/upper alarm limit temperature |
| Protection type | IP20 |
| Outputs | 1 changeover contact 10 A/250 V |
| Mounting | Mounting rail |
| Connections | Screw terminals |
| Format | 90 mm × 22.5 mm × 60 mm |
| Special features | Setup program |
| Напряжение питания | AC 230 V +10/-15 %, 48 to 63 Hz; AC 115 V +10/-15 %, 48 to 63 Hz; DC 12 to 24 V +15/-15 %, AC 24 V +15/-15 %, 48 to 63 Hz |
| Approvals | Metrological certificate; cULus |
